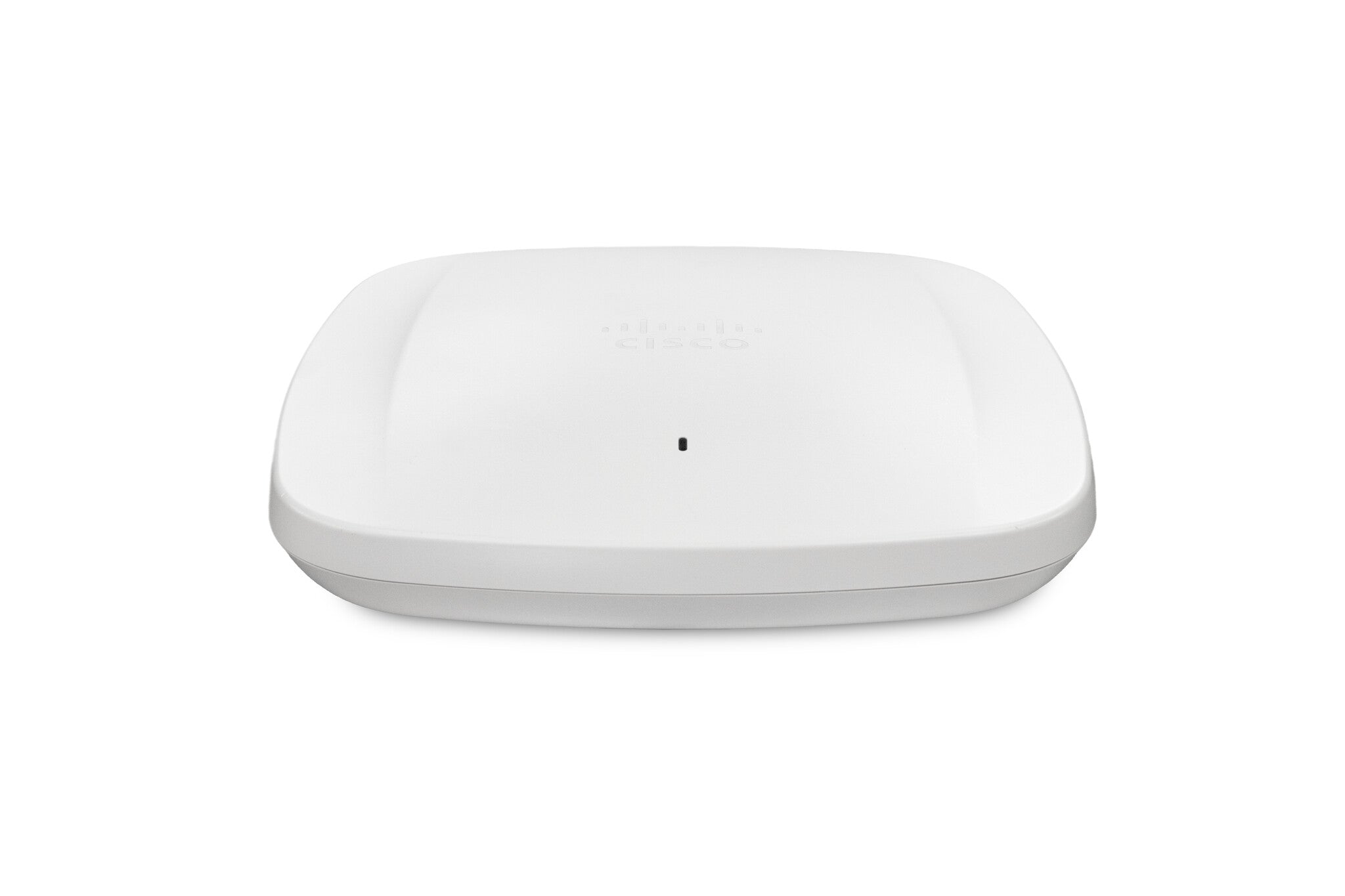

Cisco Meraki CW9166D1-ROW wireless access point White Power over Ethernet (PoE)
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £784.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 2.4 GHz
- 5 GHz
- 6 GHz
- IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
- 128-bit AES, WPA, WPA3
- Power over Ethernet (PoE)
- Internal
The Cisco Catalyst 9166 series Wi-Fi 6E access points enable operation in the 6GHz band to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. These access points provide three 4x4 radios and a host of cutting-edge features, including integrated environmental sensors and IoT radios. The Catalyst 9166 Series even offers an internal directional antenna model - the Catalyst 9166D1 - designed for use cases and areas with high ceilings such as auditoriums, warehouses, and other large open space areas. The Catalyst 9166D1 should be leveraged where typically external antennas would be required. And because the Catalyst 9166D1 uses a built-in directional antenna, it eliminates the need for additional hardware to achieve ideal wireless coverage.
Operational management is flexible because customers can change their network management whenever they want. If a network with Cisco Catalyst 9166 Series Access Points was originally an on-premises deployment, it can be changed to cloud-based management without the need to purchase and redistribute additional hardware, saving you money as you network your way.
With the industry’s leading on-premises network platform (Catalyst) joining the industry’s leading cloud IT platform (Meraki), these access points provide an unparalleled network experience. For organizations that need a wireless solution to deliver a reliable, flexible, and superior experience for your users, the Cisco Catalyst 9166 Series Access Points are the best choice.
Specifications
Features
| 2.4 GHz | Yes |
|---|---|
| 6 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.1 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum outdoor range | 25 m |
Security
| Security algorithms | 128-bit AES, WPA, WPA3 |
|---|---|
| Access Control List (ACL) | Yes |
Show all 40 specificationsShow fewer specifications
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Internal RJ-45 ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
Power
| Power over Ethernet (PoE) | Yes |
|---|
Design
| Placement | Wall |
|---|---|
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna direction type | Directional |
| Antenna gain level (max) | 8 dBi |
Performance
| Internal memory | 2048 MB |
|---|---|
| Flash memory | 1024 MB |
General
| Product family | Meraki |
|---|
Weight & dimensions
| Width | 241.3 mm |
|---|---|
| Depth | 241.3 mm |
| Height | 57.9 mm |
| Weight | 1.59 kg |
Packaging content
| Bundled software | Cisco IOS XE Software Release 17.12.1 or later |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
