Cisco · MPN: CW9166D1-A
£2,354.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £784.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • 2.4 GHz
  • 5 GHz
  • 6 GHz
  • IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
  • 128-bit AES, WPA, WPA3
  • Power over Ethernet (PoE)
  • Internal

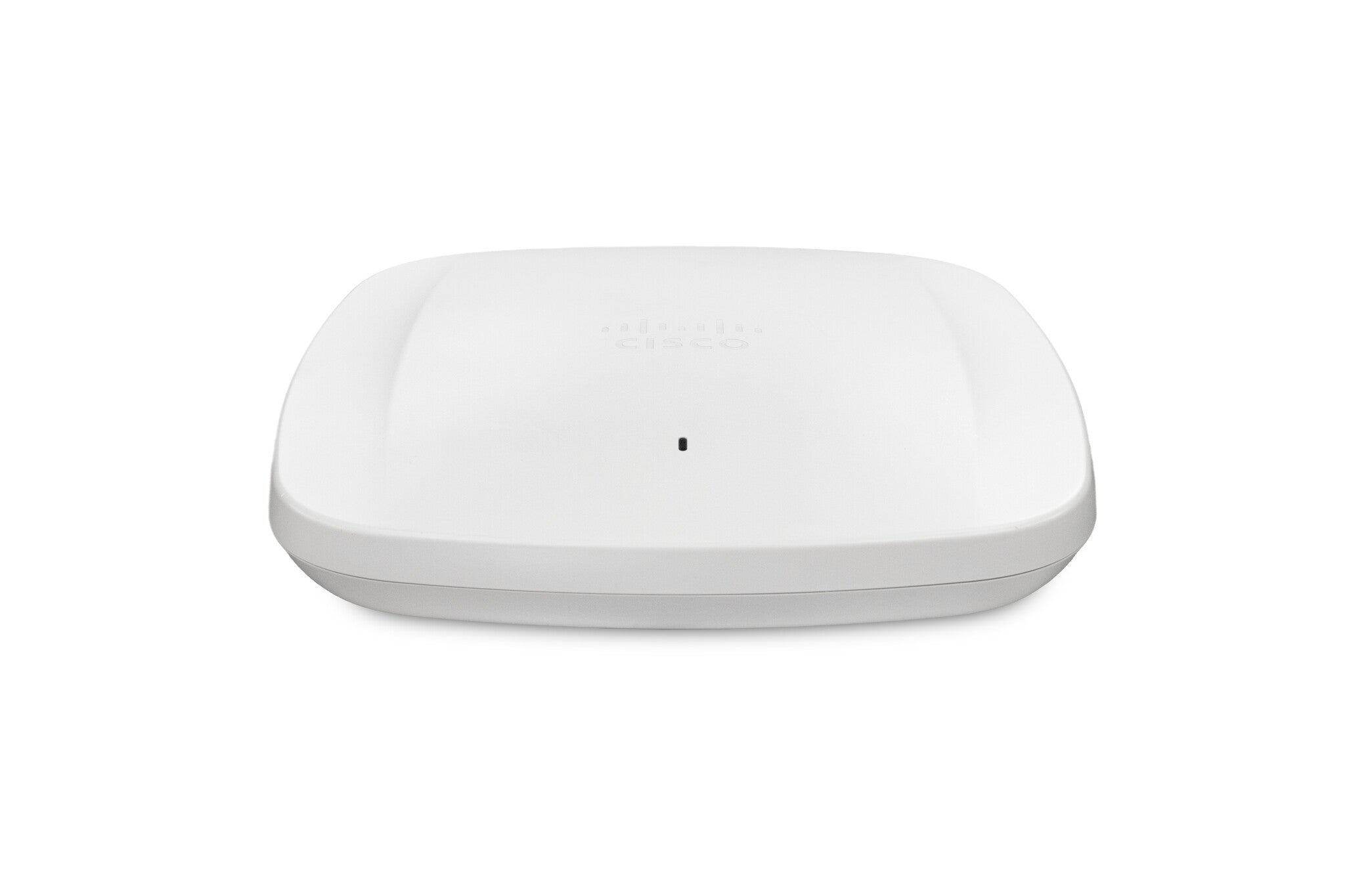

The Cisco Catalyst 9166 series Wi-Fi 6E access points enable operation in the 6GHz band to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. These access points provide three 4x4 radios and a host of cutting-edge features, including integrated environmental sensors and IoT radios. The Catalyst 9166 Series even offers an internal directional antenna model - the Catalyst 9166D1 - designed for use cases and areas with high ceilings such as auditoriums, warehouses, and other large open space areas. The Catalyst 9166D1 should be leveraged where typically external antennas would be required. And because the Catalyst 9166D1 uses a built-in directional antenna, it eliminates the need for additional hardware to achieve ideal wireless coverage.

Operational management is flexible because customers can change their network management whenever they want. If a network with Cisco Catalyst 9166 Series Access Points was originally an on-premises deployment, it can be changed to cloud-based management without the need to purchase and redistribute additional hardware, saving you money as you network your way.

With the industry’s leading on-premises network platform (Catalyst) joining the industry’s leading cloud IT platform (Meraki), these access points provide an unparalleled network experience. For organizations that need a wireless solution to deliver a reliable, flexible, and superior experience for your users, the Cisco Catalyst 9166 Series Access Points are the best choice.

Specifications

Features

2.4 GHzYes
6 GHzYes
5 GHzYes
Ethernet LAN data rates100,1000,2500,5000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
Bluetooth Low Energy (BLE)Yes
Bluetooth version5.1
MIMOYes
MIMO typeMulti User MIMO
Spread spectrum methodOFDMA
Maximal-Ratio Combining (MRC)Yes
Cyclic Shift Diversity (CSD)Yes
Dynamic Frequency Selection (DFS)Yes
Quality of Service (QoS) supportYes
Maximum outdoor range25 m

Security

Security algorithms128-bit AES, WPA, WPA3
Access Control List (ACL)Yes
Show all 40 specificationsShow fewer specifications

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Internal RJ-45 ports quantity2
USB 2.0 ports quantity1

Power

Power over Ethernet (PoE)Yes

Design

PlacementWall
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Antenna

Antenna typeInternal
Antenna direction typeDirectional
Antenna gain level (max)8 dBi

Performance

Internal memory2048 MB
Flash memory1024 MB

General

Product familyMeraki

Weight & dimensions

Width241.3 mm
Depth241.3 mm
Height57.9 mm
Weight1.59 kg

Packaging content

Bundled softwareCisco IOS XE Software Release 17.12.1 or later

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
