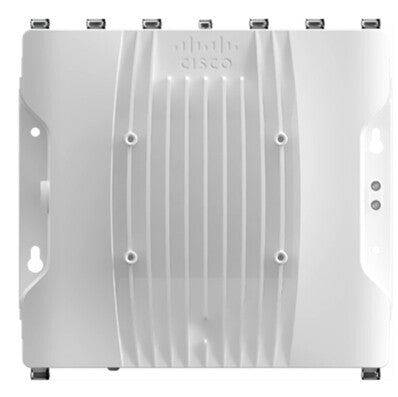

Cisco IW9167EH-E-WGB wireless access point White Power over Ethernet (PoE)
Cisco IW9167EH-E-WGB wireless access point White Power over Ethernet (PoE)

Cisco IW9167EH-E-WGB wireless access point White Power over Ethernet (PoE)

Cisco · MPN: IW9167EH-E-WGB
£2,773.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £924.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • 2.4 GHz
  • 5 GHz
  • 6 GHz
  • IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v
  • WPA, WPA2, WPA3
  • Power over Ethernet (PoE)

The Catalyst IW9167E is designed with external antenna ports and provides flexibility to choose the right antenna based on the use case.

All the benefits of Wi-Fi 6 in industrial or outdoor spaces: Higher density, higher throughput, more channels, power efficiency, and improved security.

Specifications

Features

2.4 GHzYes
6 GHzYes
5 GHzYes
Networking standardsIEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v
MIMOYes
MIMO typeMulti User MIMO
Wi-Fi Multimedia (WMM)/(WME)Yes
Maximal-Ratio Combining (MRC)Yes
Cyclic Shift Diversity (CSD)Yes
Dynamic Frequency Selection (DFS)Yes

Security

Security algorithmsWPA, WPA2, WPA3
Show all 30 specificationsShow fewer specifications

Ports & interfaces

Ethernet LAN (RJ-45) ports1
SFP/SFP+ slots quantity1
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
DC voltage range24 - 48 V

Design

PlacementCeiling, Wall
Product colourWhite

Performance

Internal memory2048 MB
Flash memory1024 MB

Certificates

CertificationEN 60529 IP67

UL50E Type 4X

IEC 60068-2-1 (Cold)

IEC 60068-2-2 (Dry Heat)

IEC 60068-2-14 (Change of Temperature)

IEC 60068-2-30 (Damp Heat)

IEC 60068-2-6 (Vibration)

IEC 60068-2-27 (Shock)

IEC 60068-2-30 (Humidity)

IEC 60068-2-32 (Freefall)

IEC 60068-3-3 (Seismic)

FCC 47 CFR Part 15 Class A

EN 55032 Class A

VCCI Class A

AS/NZ CISPR 32 Class A

CISPR 32 Class A

ICES 003 Class A

CNS13438 Class A

EN 300 386

KS C 9832:2019

EN 301 489-1 v2.1.1

EN 301 489-17 v2.1.1

EN 301 489 – 19

EN 55035

CISPR35

KS C 9835:2019

KS X 3124

KS X 3126

IEC/EN 61000-4-2 - Electrostatic Discharge

IEC/EN 61000-4-3 - Radiated RF Immunity

IEC/EN 61000-4-5 - Surge

IEC/EN 61000-4-6 - Conducted RF Immunity

IEC/EN 61000-4-8 - Power Frequency Magnetic Field

IEC 61000-4-9 – Pulsed Magnetic Field

IEC 61000-4-11 - AC Voltage Dips

IEC 61000-4-18 - Damped Oscillatory Wave

EN-61000-4-29 - DC Voltage Dips

Class I Division 2 (C1D2)

UL/cUL C1D2

Zone 2/Zone 22 (ec+ic+tc)

UL 121201

CSA C22.2 No 213

ANSI/UL 60079-0, -7, -11, -31

IECEx

ATEX

UKEx

IEC/EN 60079-0

IEC/EN 60079-7

IEC/EN 60079-11

IEC/EN 60079-31

Weight & dimensions

Width292 mm
Depth267 mm
Height71 mm
Weight4.2 kg

Packaging content

Bundled softwareCisco IOS ® XE Software Release 17.9.4 or later

Operational conditions

Operating relative humidity (H-H)0 - 100%
Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Storage relative humidity (H-H)0 - 100%
