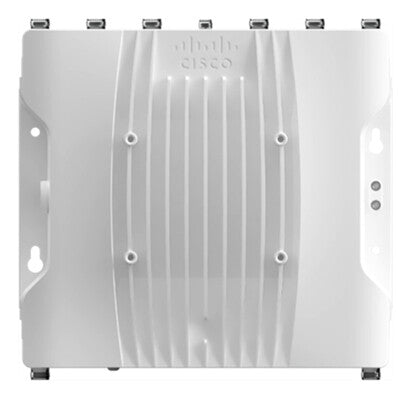

Cisco IW9167EH-A-AP wireless access point White Power over Ethernet (PoE)
£2,670.99
Couldn't load pickup availability
- 2.4 GHz
- 5 GHz
- 6 GHz
- IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v
- WPA, WPA2, WPA3
- Power over Ethernet (PoE)
The Catalyst IW9167E is designed with external antenna ports and provides flexibility to choose the right antenna based on the use case.
All the benefits of Wi-Fi 6 in industrial or outdoor spaces: Higher density, higher throughput, more channels, power efficiency, and improved security.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Security | |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| SFP/SFP+ slots quantity | 1 |
| DC-in jack | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 24 - 48 V |
| Design | |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Performance | |
|---|---|
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Certificates | |
|---|---|
| Certification | EN 60529 IP67 UL50E Type 4X IEC 60068-2-1 (Cold) IEC 60068-2-2 (Dry Heat) IEC 60068-2-14 (Change of Temperature) IEC 60068-2-30 (Damp Heat) IEC 60068-2-6 (Vibration) IEC 60068-2-27 (Shock) IEC 60068-2-30 (Humidity) IEC 60068-2-32 (Freefall) IEC 60068-3-3 (Seismic) FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZ CISPR 32 Class A CISPR 32 Class A ICES 003 Class A CNS13438 Class A EN 300 386 KS C 9832:2019 EN 301 489-1 v2.1.1 EN 301 489-17 v2.1.1 EN 301 489 – 19 EN 55035 CISPR35 KS C 9835:2019 KS X 3124 KS X 3126 IEC/EN 61000-4-2 - Electrostatic Discharge IEC/EN 61000-4-3 - Radiated RF Immunity IEC/EN 61000-4-5 - Surge IEC/EN 61000-4-6 - Conducted RF Immunity IEC/EN 61000-4-8 - Power Frequency Magnetic Field IEC 61000-4-9 – Pulsed Magnetic Field IEC 61000-4-11 - AC Voltage Dips IEC 61000-4-18 - Damped Oscillatory Wave EN-61000-4-29 - DC Voltage Dips Class I Division 2 (C1D2) UL/cUL C1D2 Zone 2/Zone 22 (ec+ic+tc) UL 121201 CSA C22.2 No 213 ANSI/UL 60079-0, -7, -11, -31 IECEx ATEX UKEx IEC/EN 60079-0 IEC/EN 60079-7 IEC/EN 60079-11 IEC/EN 60079-31 |
| Weight & dimensions | |
|---|---|
| Width | 292 mm |
| Depth | 267 mm |
| Height | 71 mm |
| Weight | 4.2 kg |
| Packaging content | |
|---|---|
| Bundled software | Cisco IOS ® XE Software Release 17.9.4 or later |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 100% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 100% |
