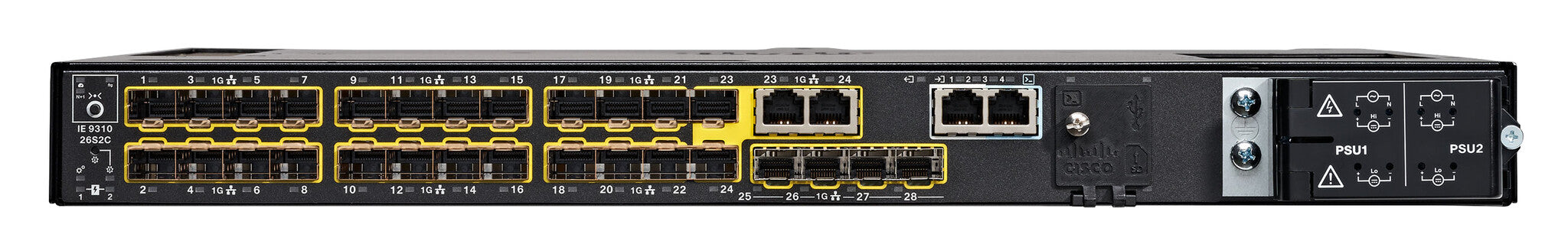

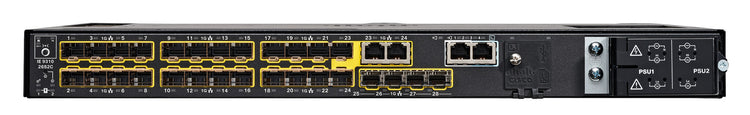

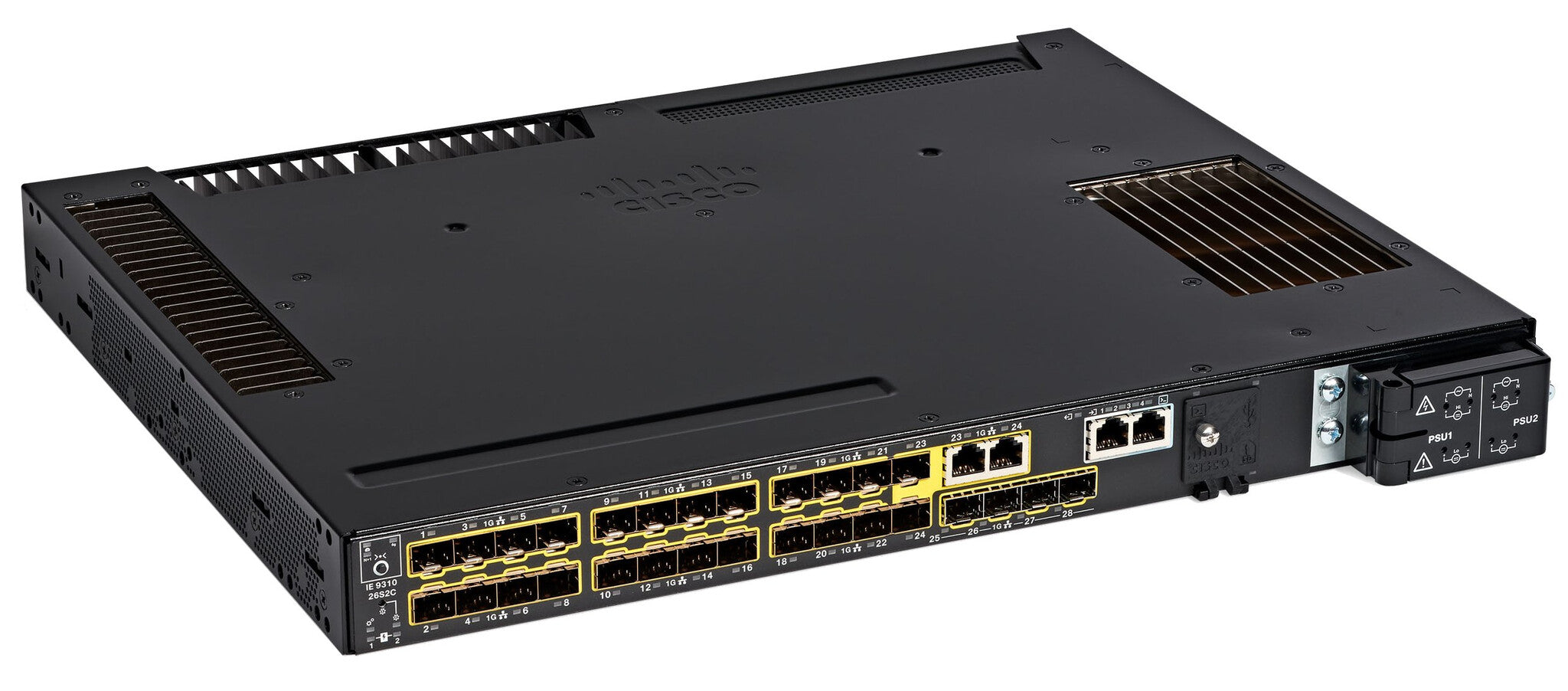

Cisco IE-9310-26S2C-A-RF network switch Managed L2/L3 Black
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,998.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L2/L3 SNMP
- Quality of Service (QoS) support
- MAC address table: 16000 entries Switching capacity: 56000 Gbit/s
- Access Control List (ACL)
- Rack mounting
- AC/DC
Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with support for Cisco Cyber Vision and Cisco Secure Network Analytics.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| MIB support | Y |
Ports & interfaces
| Installed SFP modules quantity | 22 |
|---|
Show all 37 specificationsShow fewer specifications
Network
| Policy-based routing | Yes |
|---|---|
| Spanning tree protocol | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 1024 |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 56000 Gbit/s |
| Forwarding rate | 28000 Mpps |
Security
| Access Control List (ACL) | Yes |
|---|---|
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Management protocols | SNMP |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Memory type | DRAM |
|---|---|
| Internal memory | 4000 MB |
| Flash memory | 8000 MB |
Power
| Power source | AC/DC |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 61 W |
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4572 m |
Packaging content
| Quick start guide | Yes |
|---|---|
| Manual | Yes |
