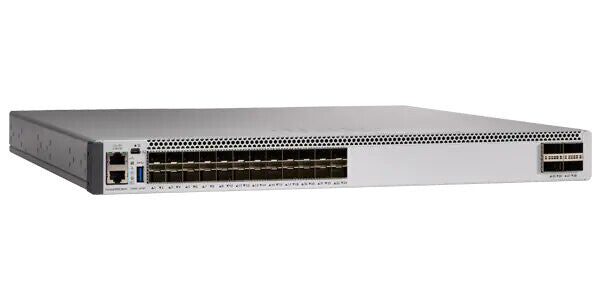

Cisco · MPN: C9500-24X-A
£15,772.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £5,257.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Managed L3 IGMP
  • Quality of Service (QoS) support
  • 10G support
  • MAC address table: 64000 entries Switching capacity: 480 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting
  • Power supply included

The Cisco® Catalyst® 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.

The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Catalyst 9500 Series includes nonblocking 40G Quad Small Form-factor Pluggable (QSFP+) and 1G/10G Small Form-factor Pluggable Plus (SFP/SFP+) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); software-defined access border capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise® virtual technology that are critical for their placement in the campus core. The platform also supports all the foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Specifications

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
MIB supportY

Ports & interfaces

SFP module slots quantity8
SFP+ module slots quantity16
Show all 49 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1AE, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Full duplexYes
VLAN supportYes
Virtual LAN featuresPolicy-based VLAN, Private VLAN
Number of VLANs4000

Data transmission

MAC address table64000 entries
Switching capacity480 Gbit/s
Throughput360 Mpps
Jumbo frames supportYes
Jumbo frames9198

Security

DHCP featuresDHCP snooping
Access Control List (ACL)Yes
Access Control List (ACL) IPv4 entries18000
Access Control List (ACL) IPv6 entries18000
IGMP entries16000
IGMP snoopingYes
Security algorithms256-bit AES
MAC address filteringYes

Multicast features

Multicast supportYes
IPv4 multicast entries16000
IPv6 multicast entries16000

Protocols

Management protocolsIGMP
IPv4 FIB entries64000
IPv6 FIB entries32000

Design

Rack mountingYes
Form factor1U
Product colourGrey

Performance

Built-in processorYes
Processor frequency2400 MHz
Internal memory16000 MB
Flash memory16000 MB
Mean time between failures (MTBF)230770 h

Power

Power supply includedYes
AC input voltage90 - 264 V
AC input frequency47/63 Hz
Input current10 A
Power consumption (typical)950 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%

General

Product familyCatalyst
