Cisco Catalyst C2960XR48TSI, Refurbished Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,113.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L2 Web-based management SNMP v1/v2c/v3, RMON I/II
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- 10G support
- MAC address table: 16000 entries Switching capacity: 216 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included

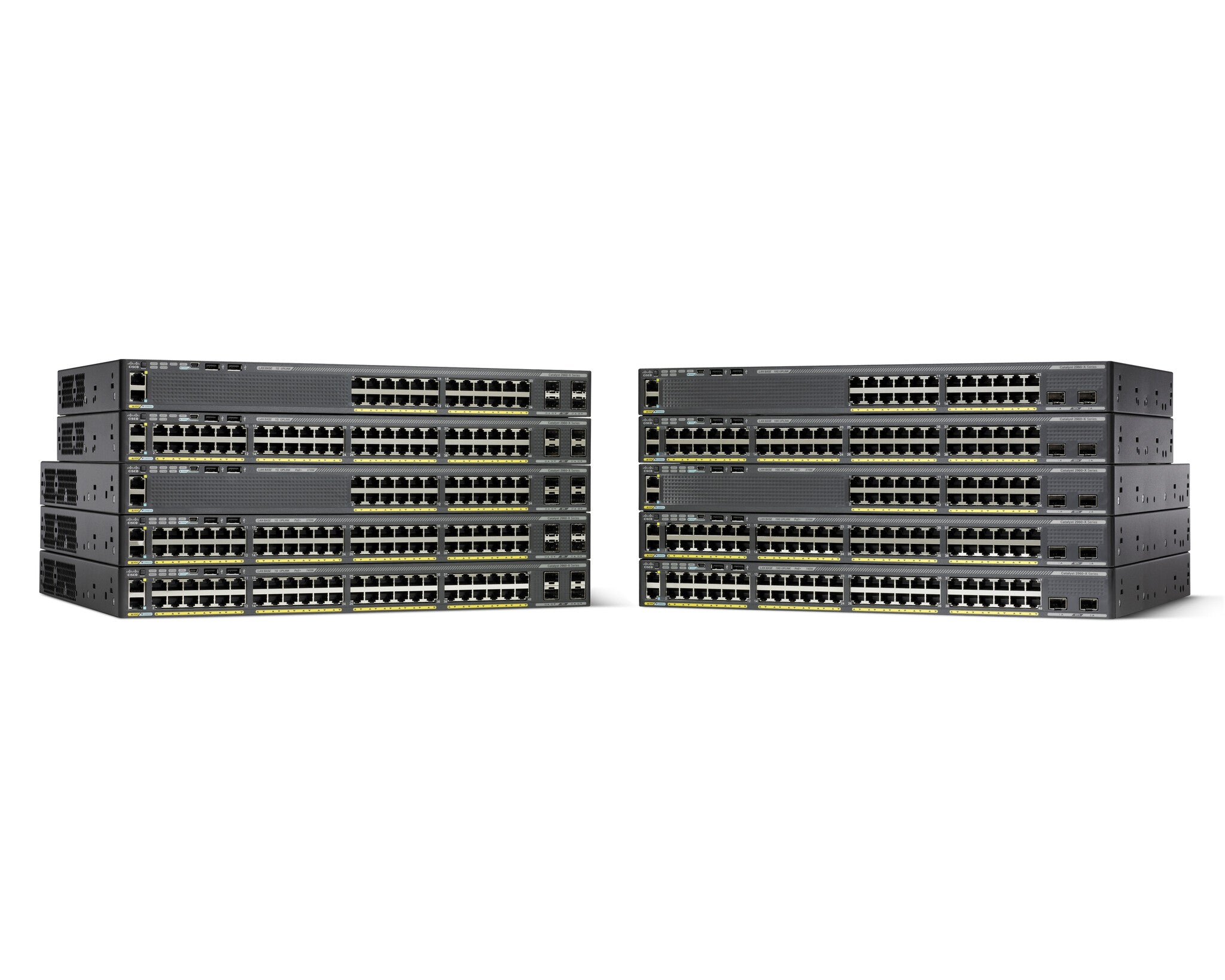

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
Specifications
Management features
| MIB support | Y |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| Console port | RJ-45 |
| Fiber optic connector | SFP |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Show all 65 specificationsShow fewer specifications
Network
| Number of VLANs | 1023 |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Data transmission
| Jumbo frames | 9216 |
|---|---|
| Throughput | 107.1 Mpps |
| Switching capacity | 216 Gbit/s |
| MAC address table | 16000 entries |
Security
| Security algorithms | 802.1x RADIUS, SSH |
|---|---|
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Management protocols | SNMP v1/v2c/v3, RMON I/II |
|---|
Design
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
|---|---|
| On/off switch | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
Performance
| Mean time between failures (MTBF) | 438130 h |
|---|---|
| Noise level | 45 dB |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Memory type | DRAM |
| Processor frequency | 600 MHz |
| Built-in processor | Yes |
Power
| Power consumption (typical) | 44.8 W |
|---|---|
| Output power | 250 W |
| AC input frequency | 50 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Non-operating altitude | 0 - 4000 m |
|---|---|
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Weight | 6 kg |
|---|---|
| Height | 44.5 mm |
| Depth | 408 mm |
| Width | 445 mm |
General
| Product family | Catalyst |
|---|
