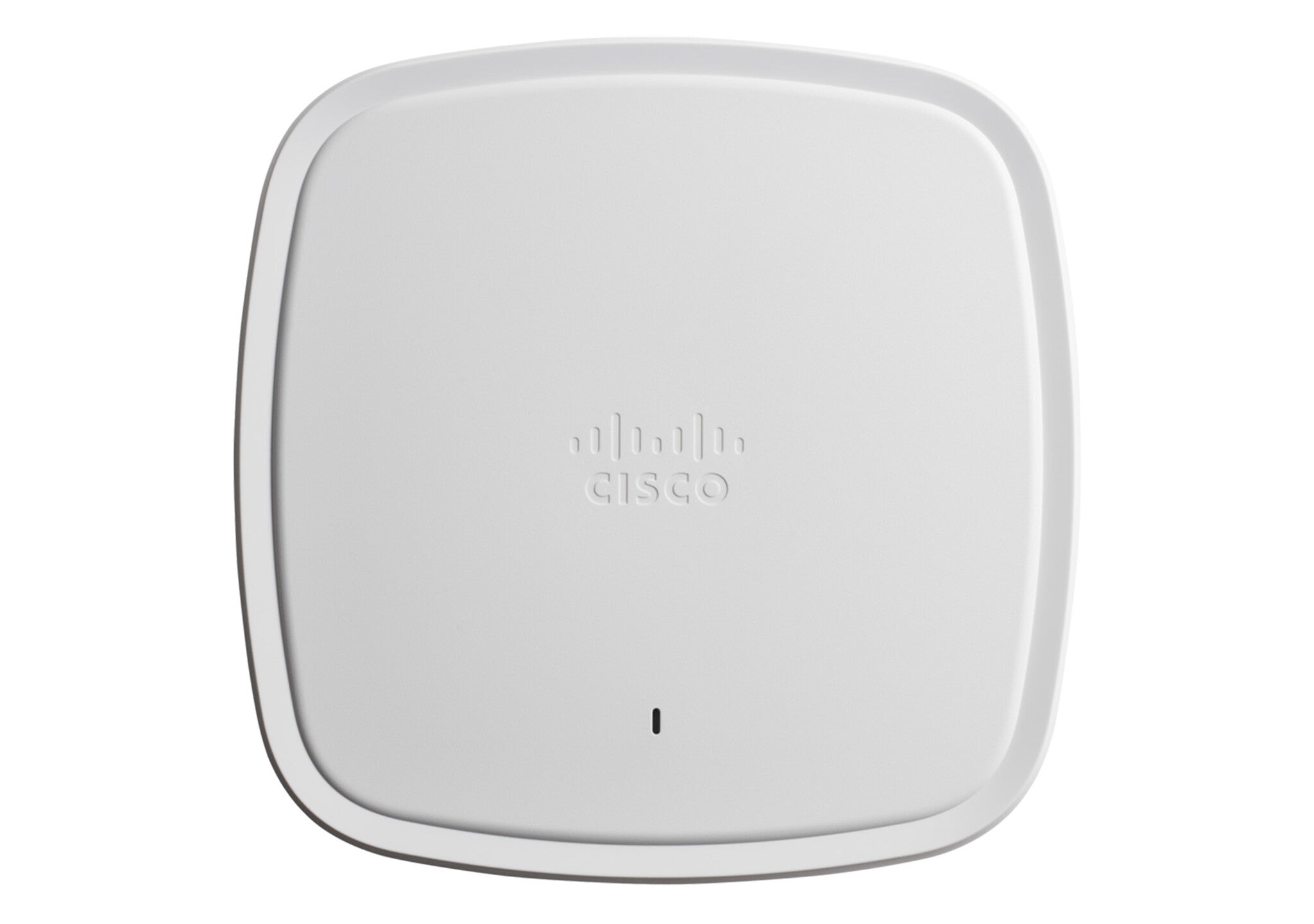

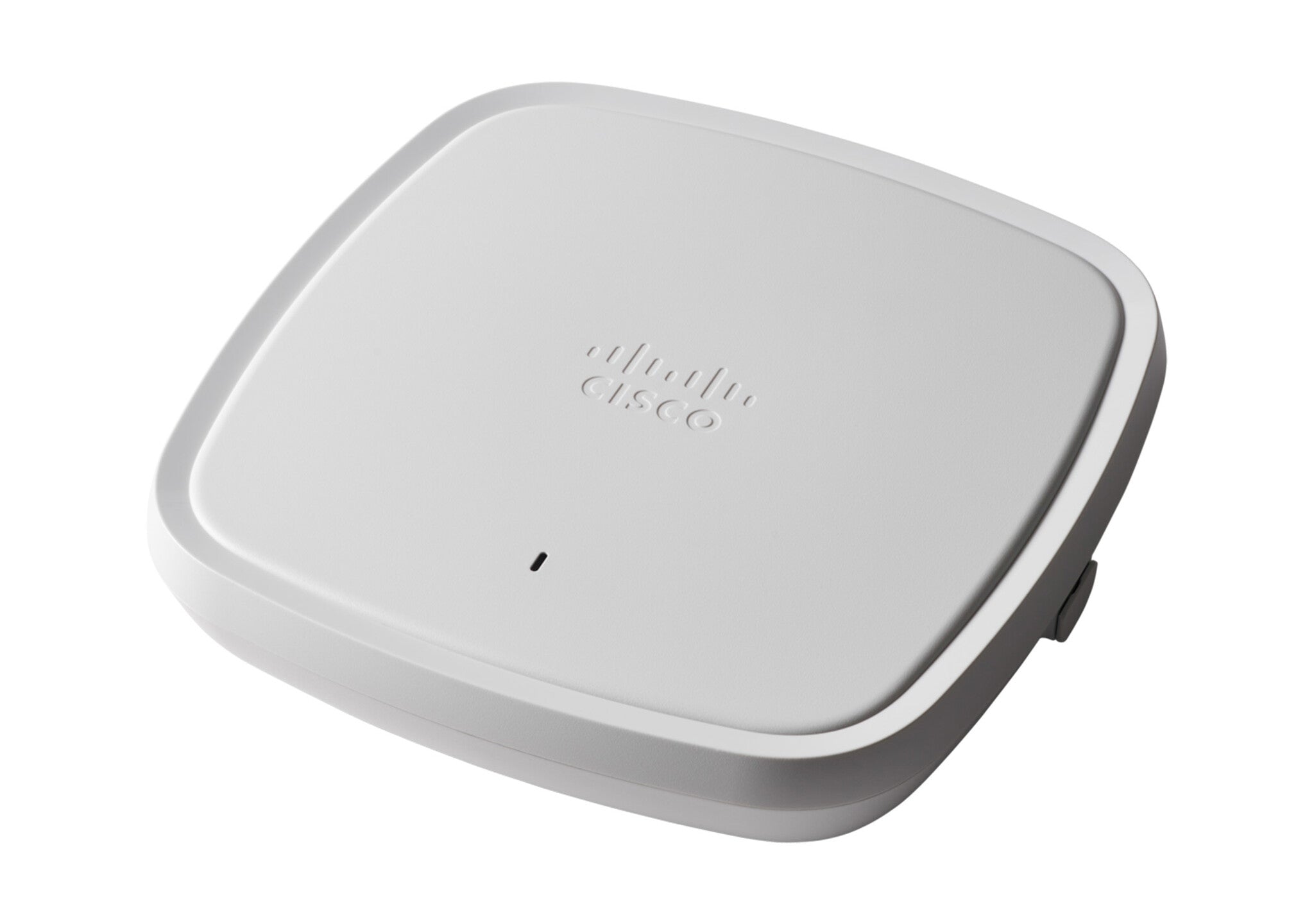

Cisco Catalyst 9117AX 5000 Mbit/s White Power over Ethernet (PoE)
£1,048.99
Couldn't load pickup availability
- 2.4 GHz
- 5 GHz
- Maximum data transfer rate: 5000 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz
- AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2
- Power over Ethernet (PoE)
- Internal
The Cisco Catalyst 9117 Wi-Fi 6 compatible Access Points offer 8x8 + 4x4 dual radio for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Ideal for small and medium-size networks. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.
| Features | |
|---|---|
| Data unit aggregation | A-MPDU, A-MSDU |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Channels quantity | 29 channels |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz |
| Frequency band | 2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 (excludes 5.6 - 5.64) |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 5000 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2 |
| Management features | |
|---|---|
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | White |
| Placement | Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Performance | |
|---|---|
| Flash memory | 1024 MB |
| Internal memory | 2048 MB |
| Certificates | |
|---|---|
| Certification | IEC 60950-1EN 60950-1AS/NZS 60950.1UL 60950-1CAN/CSA-C22.2 No. 60950-1UL 2043 |
| Weight & dimensions | |
|---|---|
| Weight | 1.4 kg |
| Height | 49.3 mm |
| Depth | 220 mm |
| Width | 220 mm |
| Packaging data | |
|---|---|
| Package weight | 639.46 g |
| Package height | 90.4 mm |
| Package depth | 263.7 mm |
| Package width | 244.6 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4572 m |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
