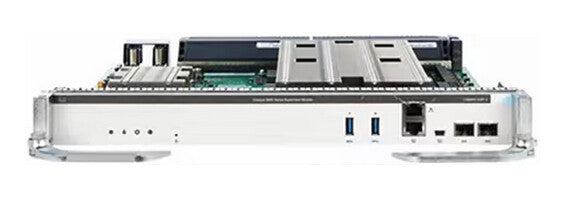

Cisco C9600X-SUP-2= network switch module
£50,274.99
Couldn't load pickup availability
The new Catalyst 9600X SUP-2 supervisor is based on Cisco Silicon One Q200 Application-Specific Integrated Circuit (ASIC), which is purpose built for the next generation core with a programmable pipeline (P4) and is the first network silicon to offer switching capacity up to 12.8 Tbps full duplex per ASIC in the enterprise. The Q200 ASIC offers high- performance full routing and switching capabilities without external memories. The Catalyst 9600 Series leverages a high-performance multiple core x86 CPU and is Cisco’s leading purpose-built modular core and edge services enterprise switching platform, built for security, IoT, and cloud.
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z |
| Data transmission | |
|---|---|
| MAC address table | 256000 entries |
| Number of VLANs | 4096 |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 305880 h |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating altitude | -60 - 3000 m |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Width | 381 mm |
| Depth | 340.6 mm |
| Height | 43.2 mm |
| Weight | 5.45 kg |
