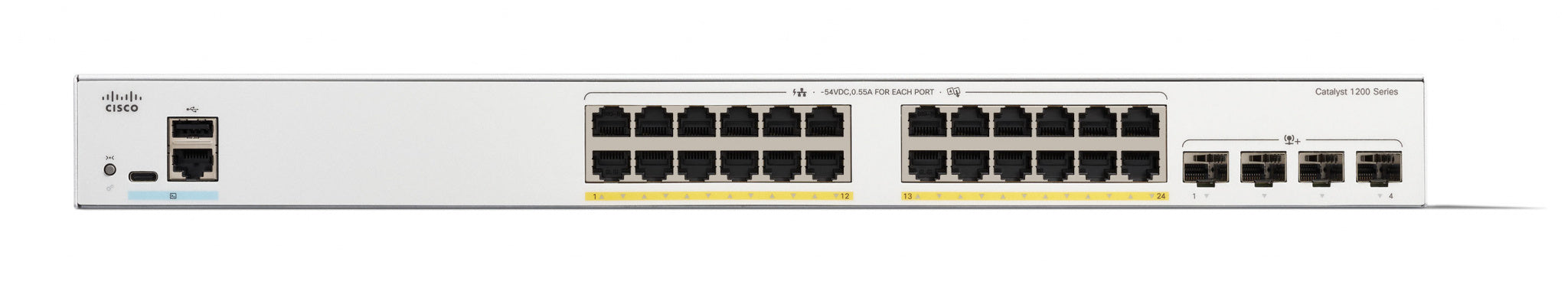

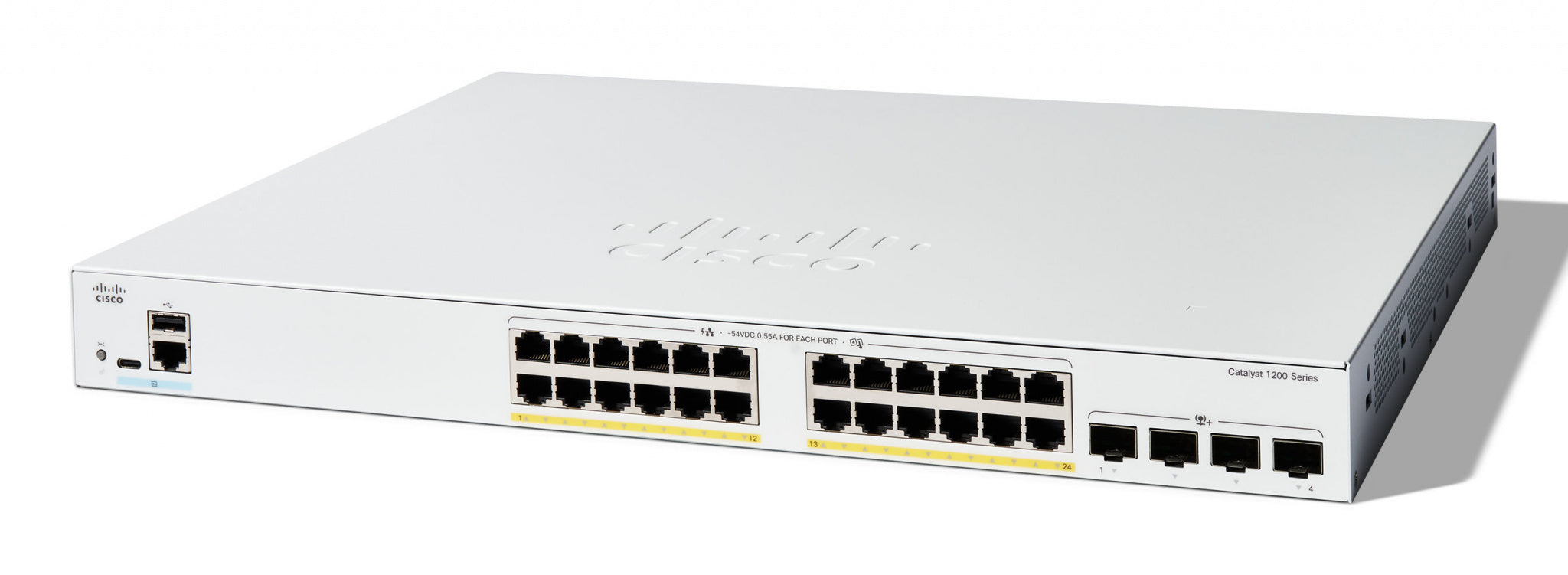

Cisco C1200-24FP-4X-RF network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) White
£279.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £93.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- SWITCH PORTS: 24 ports 10/100/1000 + 4x 10GE SFP+ (total PoE power budget: 375W, PoE, PoE+)
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
The Cisco Catalyst 1200-24FP-4X switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Specifications
Management features
| MIB support | Y |
|---|---|
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
Ports & interfaces
| Console port | RJ-45/USB Type-C |
|---|---|
| Installed SFP+ modules quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Show all 58 specificationsShow fewer specifications
Network
| Number of VLANs | 255 |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Data transmission
| Packet buffer memory | 1.5 MB |
|---|---|
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 32 |
| Static route | Yes |
| Forwarding rate | 41.66 Mpps |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8000 entries |
Security
| Loop protection | Yes |
|---|---|
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Authentication | Guest VLAN |
| Authentication type | RADIUS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| IGMP entries | 255 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
Multicast features
| Multicast support | Yes |
|---|
Design
| LED indicators | Yes |
|---|---|
| Reset button | Yes |
| Housing material | Metal |
| Product colour | White |
| Rack mounting | Yes |
Power
| Power plug type | Type C |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 110 - 240 V |
| Power supply included | Yes |
| Power source | AC |
Operational conditions
| Storage relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Height | 43.9 mm |
|---|---|
| Depth | 444.5 mm |
| Width | 350 mm |
