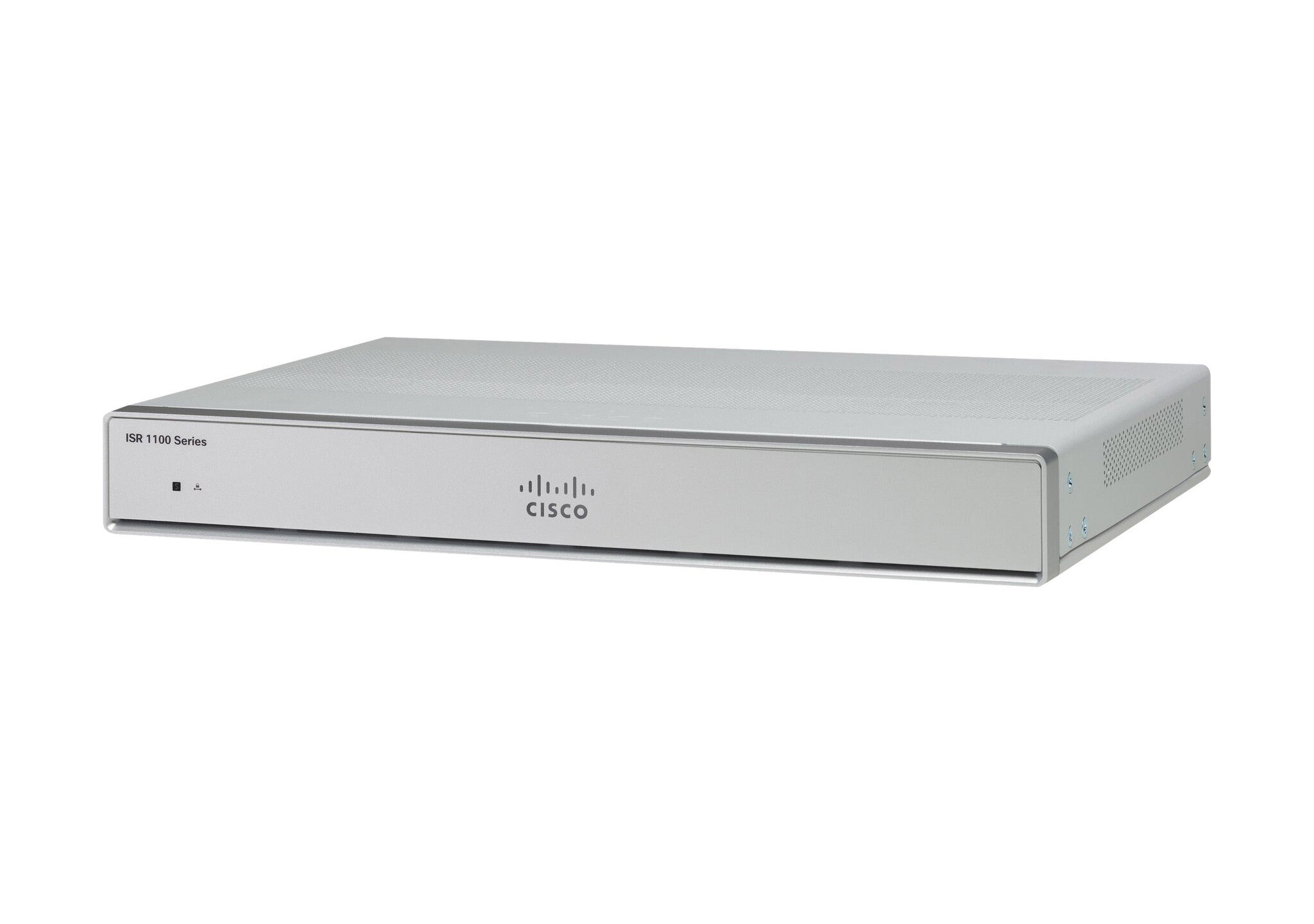

Cisco C1111X-8P wired router Gigabit Ethernet Grey
£687.99
Couldn't load pickup availability
- Ethernet WAN 3G/4G USB modem compatibility
- IEEE 802.1Q, IEEE 802.1ag
- Gigabit Ethernet
- ADSL ADSL2
- Web-based management
- DHCP client DHCP server
- 3DES, 128-bit AES, 256-bit AES, DES
The Cisco C1111X-8P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Frequency range | 2.4 - 5 GHz |
| Port forwarding | Yes |
| Multicast support | Yes |
| Static route | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1Q, IEEE 802.1ag |
| DSL features | |
|---|---|
| ADSL2 | Yes |
| ADSL | Yes |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 1 |
| Installed SFP modules quantity | 4 |
| Power over Ethernet (PoE) ports quantity | 6 |
| Fast Ethernet (copper) ports quantity | 1 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 8 |
| Protocols | |
|---|---|
| Supported protocols | IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD |
| Supported network protocols | ACL, NAT, QoS, BFD, VRF Lite, IP SLA |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Management protocols | IGMPv3 |
| Data link protocols | HDLC |
| Routing protocols | VRRP |
| Switching protocols | RFC 2338 |
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| Network address translation (NAT) | Yes |
| Access Control List (ACL) | Yes |
| Authentication method | RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512 |
| Firewall | Yes |
| Security algorithms | 3DES, 128-bit AES, 256-bit AES, DES |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Features | |
|---|---|
| Certification | UL 60950-1.and EN 60950-1.CAN/CSA C22.2 No. 60950-1.CB to IEC 60950-1, 2 |
| Internal memory type | DRAM |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Design | |
|---|---|
| Country of origin | Czech Republic |
| LED indicators | Link, Status |
| Wall mountable | Yes |
| Product colour | Grey |
| Antenna | |
|---|---|
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Antenna type | External |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power source type | AC, PoE |
| Power consumption (typical) | 66 W |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4570 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -4 - 149 °C |
| Operating temperature (T-T) | 32 - 104 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.94 kg |
| Height | 44 mm |
| Depth | 244 mm |
| Width | 323 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.46 kg |
| Package height | 162.1 mm |
| Package depth | 508 mm |
| Package width | 342.9 mm |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
