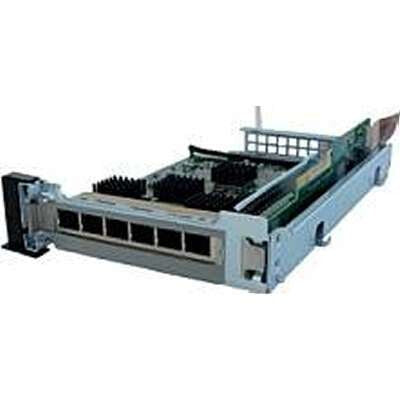

Cisco ASA-IC-6GE-CU-C network switch module Gigabit Ethernet
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,059.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
Cisco ASA 5500-X Series 6-port Gigabit Ethernet Interface Cards extend the I/O profile of the Cisco ASA 5500-X Series appliances by providing additional GE ports. The cards provide the following benefits:
- Better segmentation of network traffic into separate security zones
- Fiber-optic cable connectivity for long-distance communication
- Load sharing of traffic as well as protection against link failure through the use of EtherChannel
- Support for jumbo Ethernet frames of up to 9000 bytes
- Protection against cable failure for the most demanding active/active failover and full-mesh firewall deployments
Specifications
Network
| Jumbo frames support | Yes |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 6 |
|---|
Show all 17 specificationsShow fewer specifications
Performance
| Compatibility | ASA 5545-X, ASA 5555-X |
|---|
Power
| Power consumption (typical) | 25 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Safety | UL 60950, CSA C22.2 No. 60950, EN 60950 IEC 60950, AS/NZS60950 |
|---|---|
| Electromagnetic compatibility | CE marking, FCC Part 15 Class A, AS/NZS CISPR22 Class A, VCCI Class A, EN55022 Class A, CISPR22 Class A, EN61000-3-2, EN61000-3-3 |
Weight & dimensions
| Weight | 450 g |
|---|---|
| Height | 39.9 mm |
| Depth | 230.9 mm |
| Width | 134.9 mm |
