Cisco Aironet network antenna Omni-directional antenna RP-TNC 5 dBi
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £24.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview

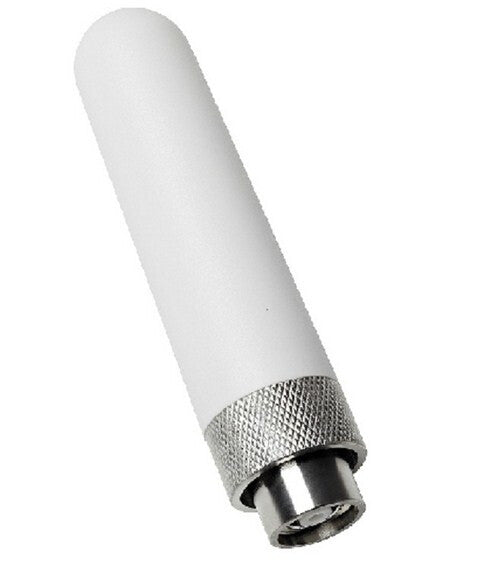

- Omni-directional antenna RP-TNC White
- 5 dBi
- 2.4/5 GHz
- 50 Ω
- Male
This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area.
The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.
Specifications
Performance
| Horizontal beam width (5 GHz) | 35° |
|---|---|
| Vertical beam width (5 GHz) | 35° |
| Horizontal beam width (2.4 GHz) | 35° |
| Vertical beam width (2.4 GHz) | 35° |
| Impedance | 50 Ω |
| Antenna gain (2.4 GHz) | 3 dBi |
| Antenna gain (5 GHz) | 5 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna gain level (max) | 5 dBi |
Features
| Compatible products | AP1600, AP2600, AP3600, AP3700 |
|---|---|
| Purpose | Indoor |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Antenna connector type | RP-TNC |
| Connector gender | Male |
| Antenna type | Omni-directional antenna |
Show all 19 specificationsShow fewer specifications
Operational conditions
| Storage temperature (T-T) | -40 - 85 °C |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
