• The phone offers an easy-to-use interface and provides a traditional telephony-like user experience
• White backlit, greyscale, 3.5” 396×162 pixel-based display on the IP Phone 7821, 7841 and 7861
• The handset is a standard wideband-capable audio handset (connects through an RJ-9 port) for the IP Phone 7821, 7841 and 7861
• The analog headset jack is a standard wideband-capable RJ-9 audio port for the IP Phone 7821, 7841, and 7861
• The phone supports backlit indicators for the audio path keys (handset, headset and speakerphone), select key, line keys, and message waiting
• A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer
• Full-duplex speakerphone allows gives you flexibility in placing and receiving calls. For added security, the audible dual tone multifrequency (DTMF) tones are masked when the speakerphone mode is used
• The display is easy to view and the buttons and keys are easy to use. The two-position foot stand supports viewing angles of 30 degrees and 45 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone
• The phone can be installed on a wall using optional wall-mount kit (available separately)
• The hookswitch can be controlled electronically with a third party headset connected to the auxiliary port
• The phone supports IEEE 802.3af PoE (Class 1); power consumption does not exceed 3.84 watts

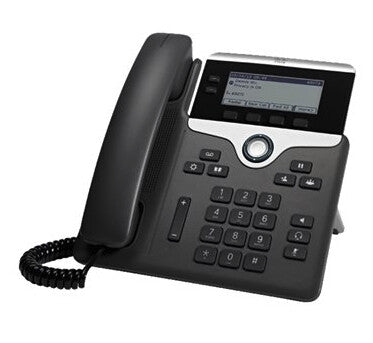

- The Cisco® IP Phone 7800 Series is a cost-effective, high-fidelity voice communications portfolio designed to improve your organization’s people-centric communications, while reducing your operating costs.

It combines an attractive new ergonomic design with “always-on” reliability and secure encrypted communications. The Cisco® IP Phone 7800 Series delivers advanced IP Telephony features and crystal clear wideband audio performance to deliver an easy-to-use, full-featured voice communications experience on Cisco on-premises and hosted infrastructure platforms and third party hosted call control.

User Experience Enhancing Collaboration

- Two-lines deliver more efficient call handling
- High-resolution graphical grayscale display makes viewing easier
- Dedicated fixed keys ease communications for increased productivity
- Built-in speakerphone supports hands-free communications
- Wideband audio enhances clarity with the handset, speaker, or a headset

Simple, Cost-Effective Administration

Key features to ease and reduce costs of administration include:
- Flexible deployment options with Cisco on-premises, hosted, and Webex Calling.
- Cisco Expressway supports remote worker single sign-on access without a VPN client
- Power over Ethernet (PoE) Class 1 and Cisco EnergyWise lowers energy costs
- Integrated IEEE 10/100 switch reduces installation costs and footprint at the desk
- Cisco Webex Phone OS consolidates administration with common software to both the IP Phone 7800 Series and IP Phone 8800 Series
