Cisco 4G-LTE-ANTM-D network antenna Omni-directional antenna TNC 2 dBi
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £27.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Omni-directional antenna TNC Black
- 2 dBi
- 698-806 MHz; 824-894 MHz; 925-960 MHz; 1710-1885 MHz; 1920-1980 MHz; 2110-2170 MHz; 2500-2690 MHz
- Male/Female

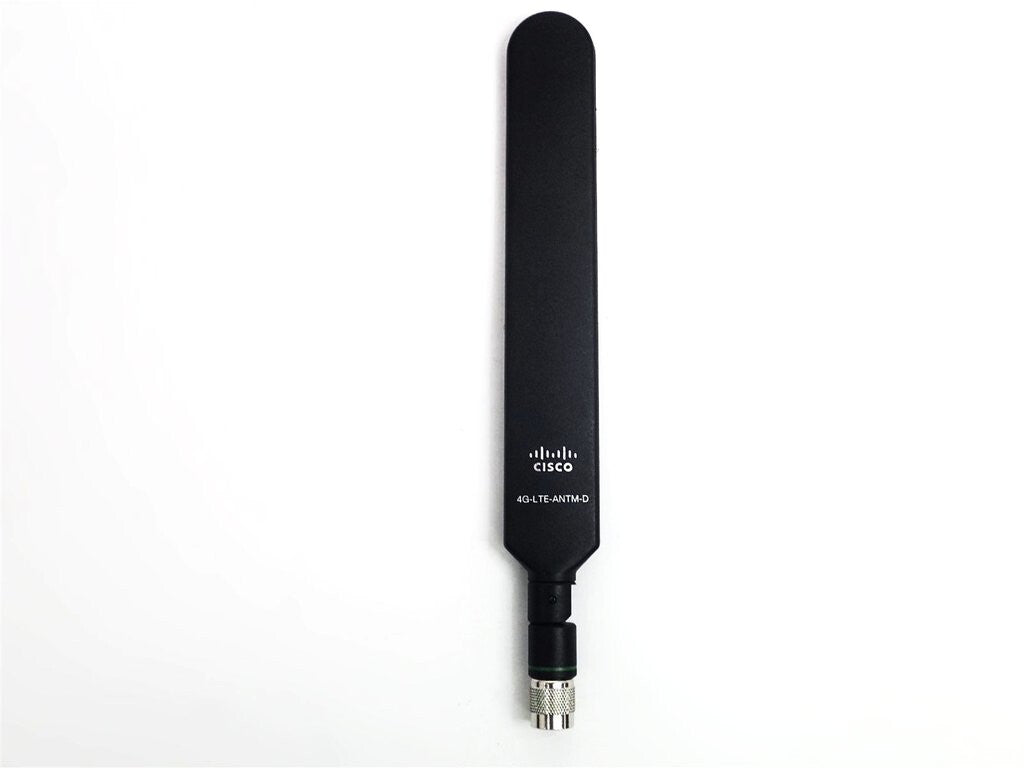

The 4G-LTE-ANTM-D omnidirectional dipole antenna is designed for indoor use with Cisco 4G and Cisco 3G wireless Integrated Services Routers Generation 2 (ISRs G2) and Enhanced High-Speed WAN Interface Cards (EHWICs).
The 4G-LTE-ANTM-D antenna is marked with a green band and the product ID (PID) to indicate that it supports 4G Long Term Evolution (LTE) networks. It has the following hardware features:
- Articulating Joint—It can be rotated 360 degrees and is capable of maneuvering into three stop positions: 0 degrees, 45 degrees, and 90 degrees.
- Male threaded Neill-Concelman (TNC) Connector—It lets you directly mount the antenna to any Cisco 4G and Cisco 3G wireless Integrated Services Router (ISR) EHWIC with a TNC connector (Figure 1). The threads on the connector must comply with the ANSI 7/16-28 UNEF 2B thread specification.
Specifications
Performance
| Frequency band | 698-806 MHz; 824-894 MHz; 925-960 MHz; 1710-1885 MHz; 1920-1980 MHz; 2110-2170 MHz; 2500-2690 MHz |
|---|---|
| Antenna gain level (max) | 2 dBi |
Features
| Product colour | Black |
|---|---|
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 or less |
| Antenna connector type | TNC |
| Connector gender | Male/Female |
| Antenna type | Omni-directional antenna |
Show all 11 specificationsShow fewer specifications
Operational conditions
| Operating temperature (T-T) | -22 - 158 °C |
|---|
Weight & dimensions
| Height | 229 mm |
|---|---|
| Depth | 11 mm |
| Width | 30.5 mm |
