Cisco 1100 gateway/controller 10, 100, 1000 Mbit/s

The compact, high-density Cisco 1100 Terminal Services Gateway (C1100 TSG) with Cisco IOS® XE Software allows secure remote management of a wide variety of networking, compute, Internet of Things (IoT), and other devices. It integrates Layer 2 switching and comprehensive security with the ability to integrate wired and wireless WAN connections (LTE Advanced 3.0) into a single rack unit. The C1100 TSG allows secure authentication (through support for RADIUS or TACACS) of remote users connecting to resources on an internal corporate or private network from Internet-connected devices.

Cloud service providers can deploy the C1100 TSG in data centers to provide secure connectivity to terminal servers, computers, IoT devices, and other networking equipment located in the internal network or behind a firewall. In addition, the gateway supports the Cisco IOS Firewall, IPsec and Network Address Translation (NAT), providing security and protection to all devices that connect to or from the terminal gateway. The C1100 TSG supports centralized and remote management capabilities through web-based tools and Cisco IOS® XE Software for full visibility into and control of network configurations at the remote site.

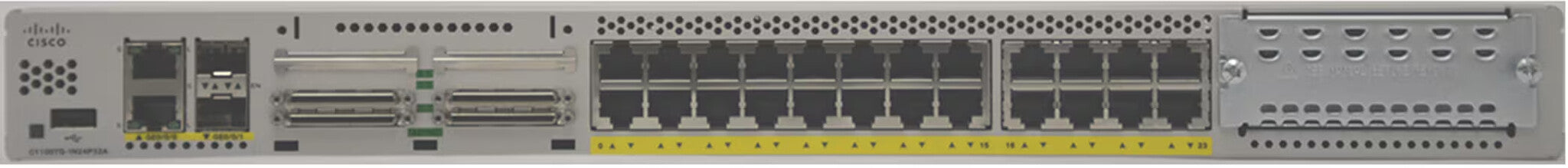

The Cisco 1100 TSG is available in three models: the C1100TG-1N24P32A (4GB and 8GB DRAM variants available) and C1100TG-1N32A. The base hardware comes with up to 32 RS-232-based asynchronous ports operable up to a maximum 230-Kbps connection per port, and the C1100TG-1N24P32A model supports a 24-port Layer 2 Gigabit Ethernet switch.
