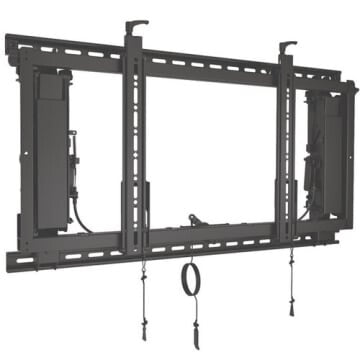

Chief LVS1U, ConnexSysTM Video Wall Landscape Mounting System with Rails
£369.99
Couldn't load pickup availability
- Maximum weight capacity: 68.04 kg
- Minimum screen size: 106.7 cm (42") Maximum screen size: 2.03 m (80") Wall
- Minimum VESA mount: 200 x 100 mm Maximum VESA mount: 700 x 400 mm
- Number of displays supported: 1
- Height adjustment
- Steel Black
Chief's ConnexSys™ Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys™ Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Read the complete story of ConnexSys™ here.
| Mounting | |
|---|---|
| Maximum weight capacity | 68.04 kg |
| Minimum screen size | 106.7 cm (42") |
| Maximum screen size | 2.03 m (80") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 700 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Tilt angle range | -2.5 - 4° |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Compatibility | MIS-F (200x200mm) MIS-F (300x300mm) MIS-F (400x200mm) MIS-F (400x400mm) MIS-F (600x400mm) |
| Certification | ULCERT |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Weight & dimensions | |
|---|---|
| Width | 901.7 mm |
| Depth | 102 mm |
| Height | 530.9 mm |
| Packaging data | |
|---|---|
| Package weight | 20 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
