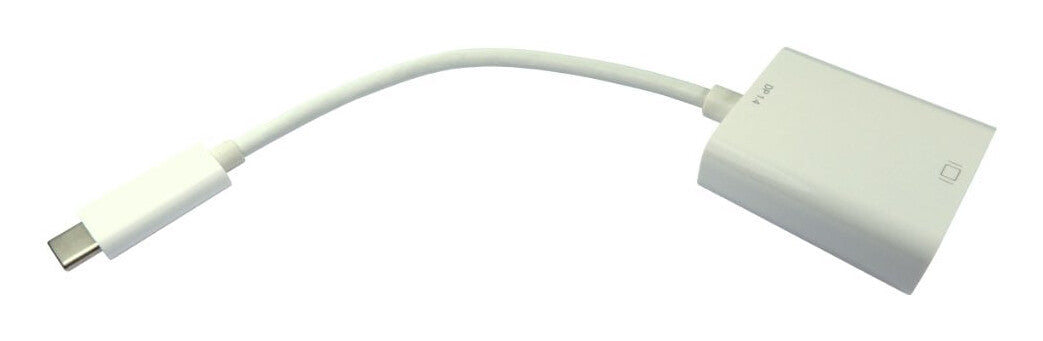

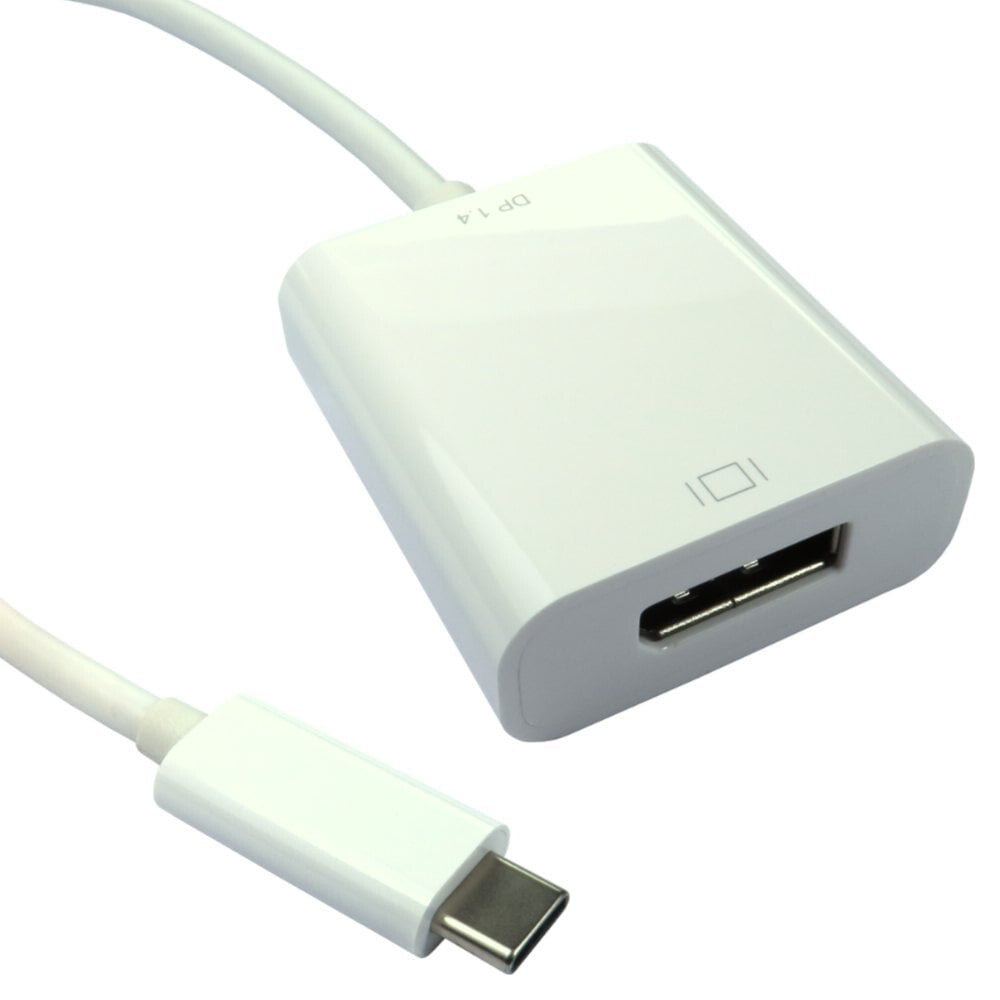

Cables Direct 15cm Leaded USB Type C (M) to DisplayPort (F) Adapter
£25.99
Couldn't load pickup availability
- Supports USB-C input and DisplayPort output
- Supports DisplayPort 1.4 / 1.2 Alt-Mode
- Supports per lane data rates of 8.1Gbps (HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
- Supports 8/10/12 bit colour depth
- Support pixel format RGB / YCbCr4:4:4 / YCbCr4:2:2 / YCbCr4:2:0
- HDR Bypass
- HDCP Bypass
- Supports resolutions up to:
- - 7680 x 4320 @ 60Hz (with DSC)
- - 7680 x 4320 @ 30Hz (without DSC)
The USB3C-DPCAB-A is a USB Type-C to DisplayPort adapter which allows you to connect an extra DisplayPort monitor to your computer.
This adapter will output DisplayPort video with a maximum resolution of 8K/60Hz. It supports all USB-C and Thunderbolt host ports that support DP Alt-Mode, including DP1.4 and DP1.2.
| Performance | |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| DisplayPorts quantity | 1 |
| Number of displays supported | 1 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported video modes | 4320p |
| Supported graphics resolutions | 7680 x 4320 |
| Design | |
|---|---|
| RGB support | 4:4:4/4:2:2/4:2:0 |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| USB cable length | 0.15 m |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
