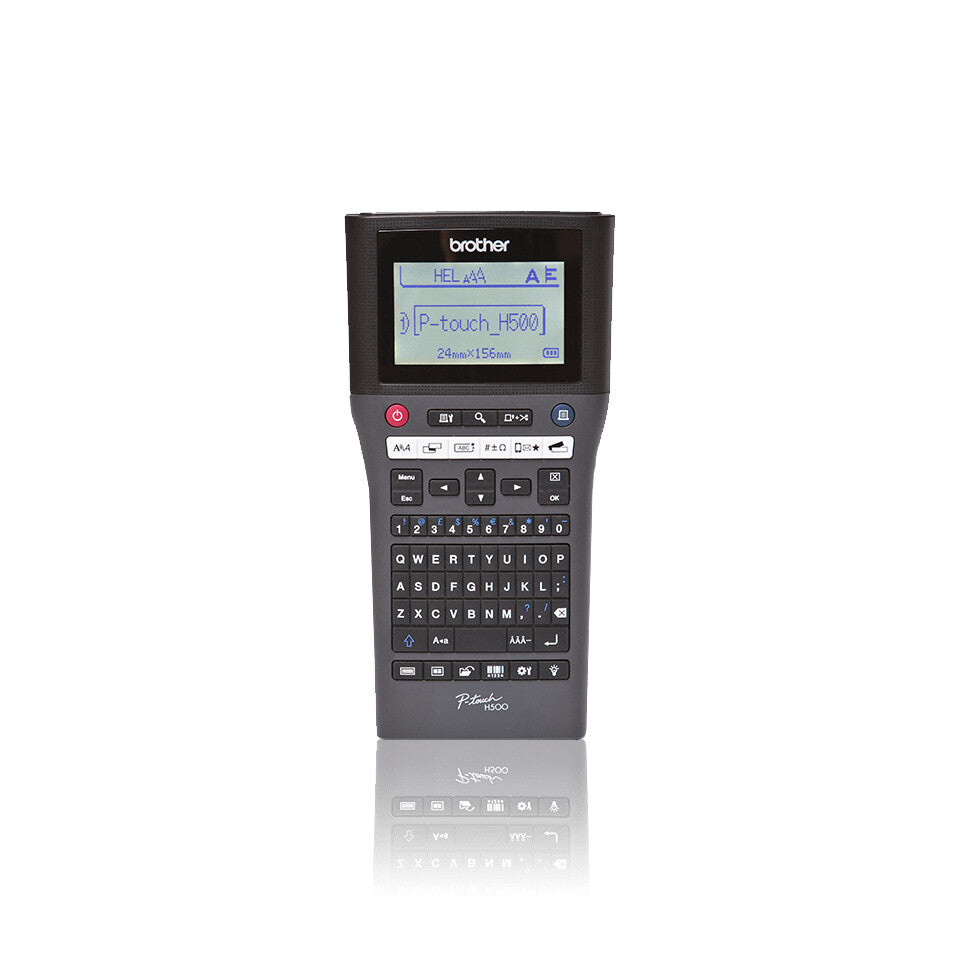

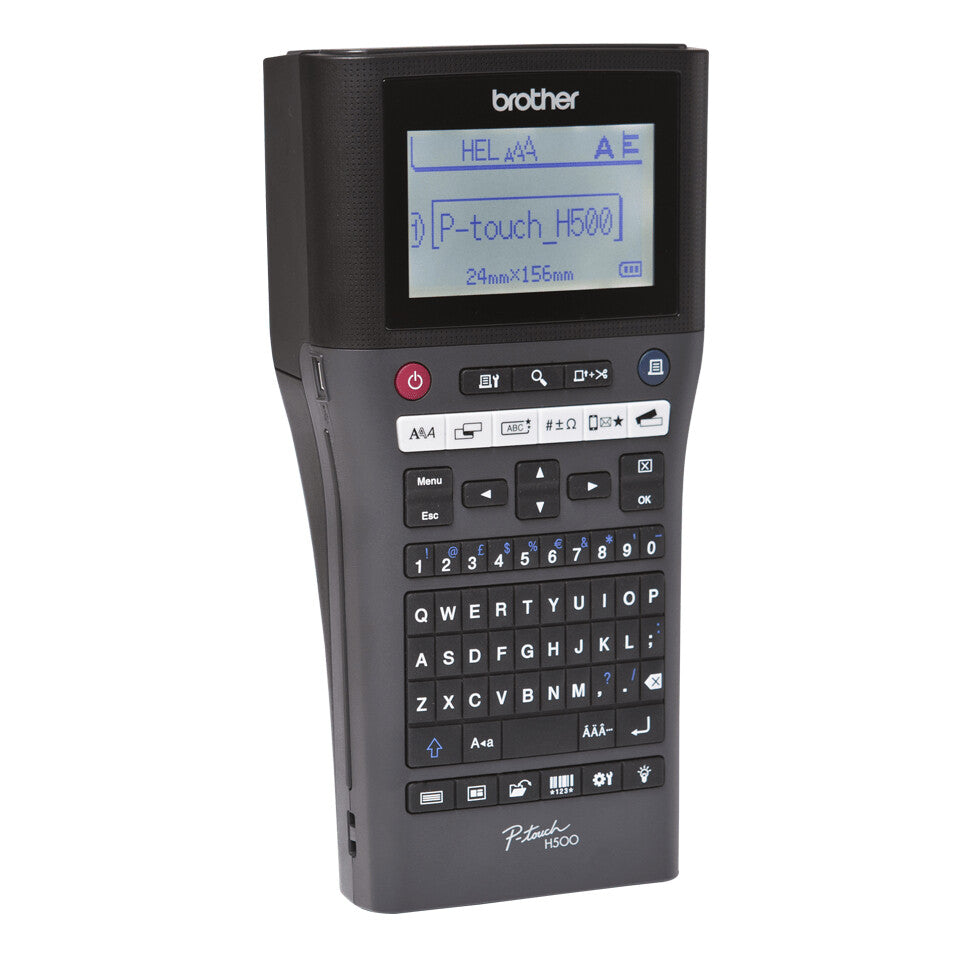

Brother PT-H500 label printer 180 x 180 DPI 30 mm/sec Wired TZe QWERTY
iFrame
£109.99
Couldn't load pickup availability
- Backlit graphic display - Easy-to-read text and the ability to preview your label before printing
- Customise labels using a choice of 14 fonts, 126 frames and over 600 symbols
- Print from a PC using the P-touch Editor software
- QWERTY style keyboard

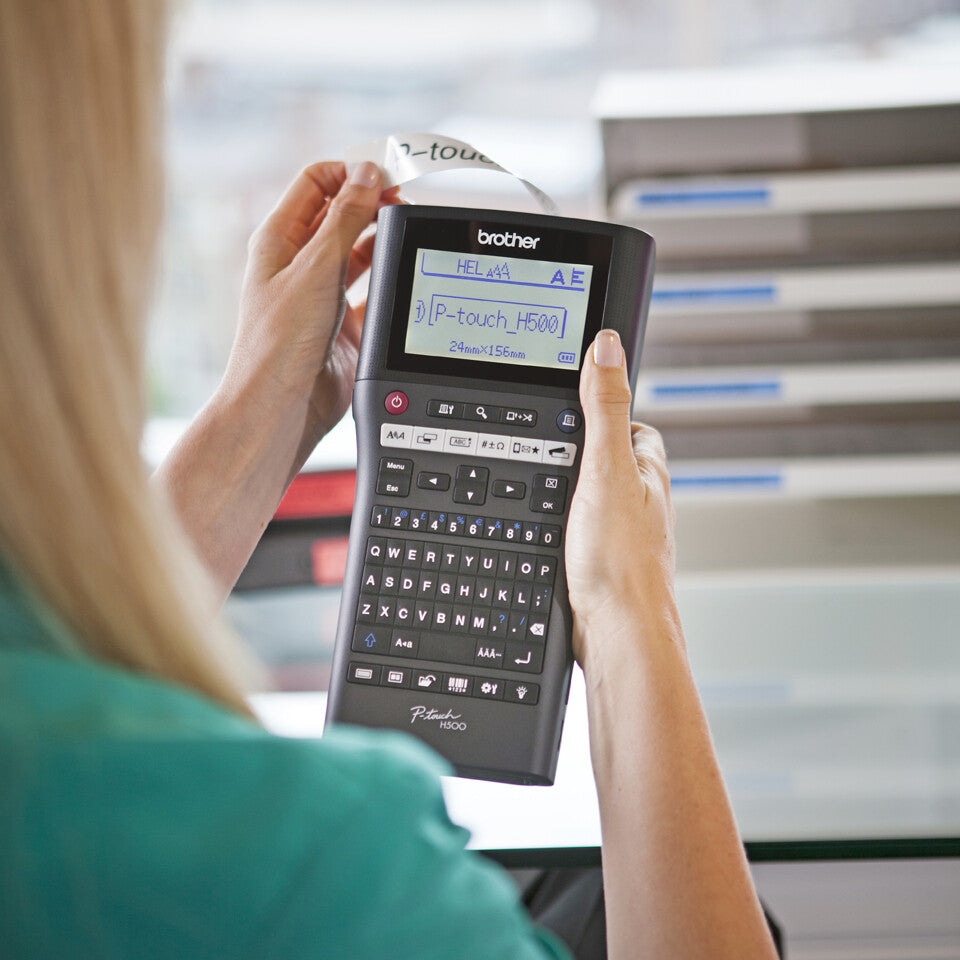

- Handheld design and battery power lets you print labels wherever they are required
- Powered by standard alkaline or rechargeable AA batteries, an optional AC adapter and Li-ion rechargeable battery
Design and print impressively durable labels from your Mac, Windows PC or right from the palm of your hand with the PT-H500. Adding images, frames and barcodes to your labels is simple with direct USB connection to your computer, and you can also create stylish text using the installed True Type fonts.
| Printing | |
|---|---|
| Vertical printing | Yes |
| Maximum print height | 1.8 cm |
| Maximum printing width | 2.4 cm |
| Print speed | 30 mm/sec |
| Maximum resolution | 180 x 180 DPI |
| Paper handling | |
|---|---|
| Maximum label width | 2.4 cm |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| PC connected | Yes |
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Number of printing lines (max) | 7 |
| Underline | Yes |
| Number of styles | 10 |
| Image formats supported | BMP, JPG, TIF |
| Tape cutting | Automatic |

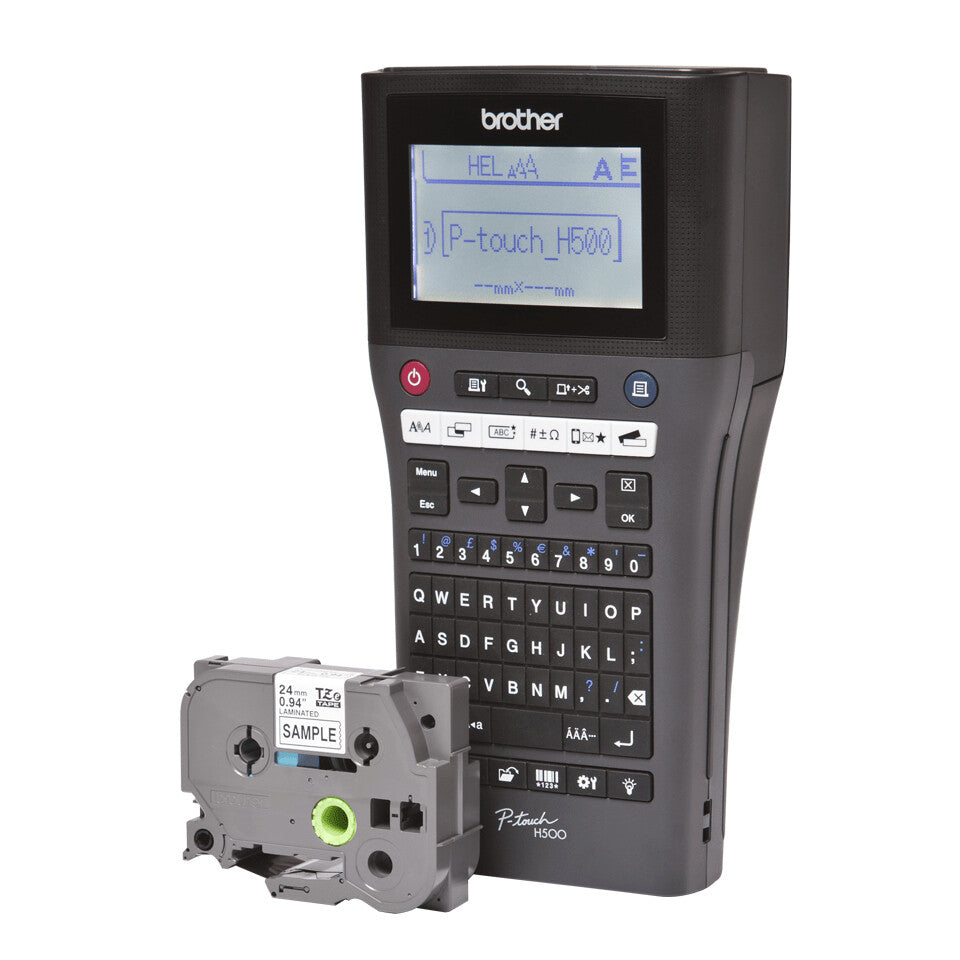

| Tape type | TZe |
| Number of fonts | 14 |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN128, EAN13, EAN8, GS1-128, ITF, UPC-A, UPC-E |
| Design | |
|---|---|
| Keyboard layout | QWERTY |
| Display number of characters | 16 |
| Display number of lines | 3 lines |
| Backlight display | Yes |
| Display | LCD |
| Built-in display | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Rechargeable | Yes |
| Auto power off | Yes |
| Number of batteries supported | 6 |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64 |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Weight & dimensions | |
|---|---|
| Weight | 995 g |
| Height | 300 mm |
| Depth | 125 mm |
| Width | 305 mm |
| Packaging data | |
|---|---|
| Package weight | 1.65 kg |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | USB |
| Logistics data | |
|---|---|
| Products per pallet | 90 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet layer | 6 pc(s) |
| Master (outer) cases per pallet | 30 pc(s) |
| Pallet gross weight | 169.2 kg |
| Pallet gross height | 17.5 cm |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
|---|---|
| Pallet type | 800 x 1200 mm |
| Other features | |
|---|---|
| Print preview | Yes |
| Label memory | 50 label(s) |
| Country of origin | China |
| Spare part retention | 5 year(s) |
| Number of frames | 99 |
