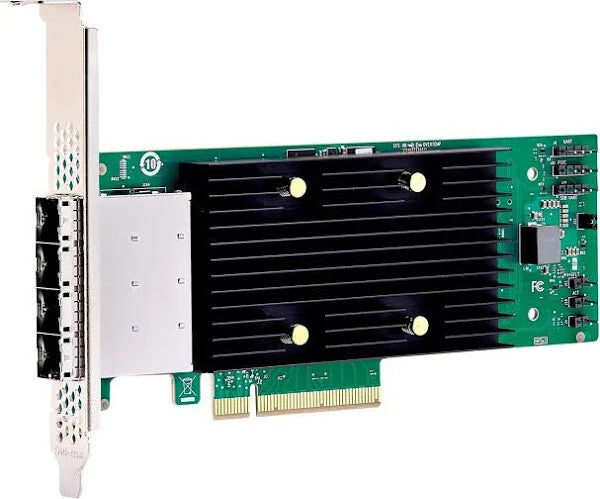

Broadcom eHBA 9600-16e interface cards/adapter Internal SAS, SATA
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £281.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Low profile, half-length x8 PCIe Gen 4.0 adapter
- Connect up to 240 SAS/SATA devices or 32 NVMe devices
- Hardware Secure Boot and SPDM Attestation support
- SMART monitoring
- Drive temperature monitoring
- SafeStore key management for attached SEDs
- Universal Bay Management (UBM) Ready
The 9600-16e Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9600-16e eHBA delivers the performance and scalability needed by critical applications.
Specifications
Ports & interfaces
| Host interface | PCIe |
|---|---|
| Output interface | SAS, SATA |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 4.0 |
| NVMe | Yes |
| External mini-SAS HD ports | 4 |
Design
| Internal | Yes |
|---|---|
| Product colour | Black, Green, Silver |
| Mean time between failures (MTBF) | 5000000 h |
| Certification | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020) |
Show all 24 specificationsShow fewer specifications
Features
| Data transfer rate (max) | 22.5 Gbit/s |
|---|---|
| S.M.A.R.T. support | Yes |
Power
| Power consumption (typical) | 17 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
Technical details
| Warranty period | 3 year(s) |
|---|---|
| Compliance certificates | RoHS, WEEE |
| Sustainability compliance | Yes |
System requirements
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Server operating systems supported | SUSE Linux Enterprise Server |
| Other operating systems supported | VMware vSphere ESXi |
Weight & dimensions
| Width | 167.5 mm |
|---|---|
| Depth | 68.8 mm |
