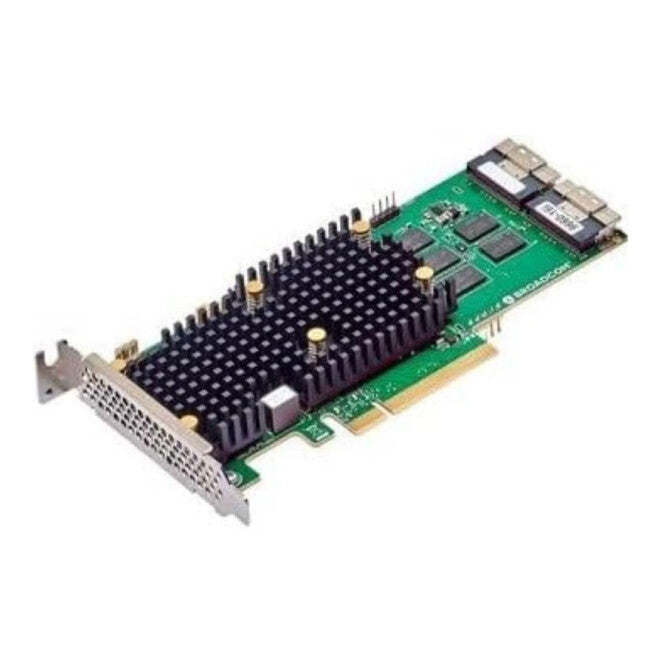

Broadcom 9660-16i interface cards/adapter Internal SAS, SATA, SFF-8654
Broadcom 9660-16i interface cards/adapter Internal SAS, SATA, SFF-8654

Broadcom 9660-16i interface cards/adapter Internal SAS, SATA, SFF-8654

Broadcom · MPN: 05-50107-00
£2,218.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £739.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

In stock

FREE delivery

Express £9.99

Price drop alert

Broadcom 9660-16i interface cards/adapter Internal SAS, SATA, SFF-8654
Now £2,218.99

We'll email you if the price of this item drops in the next 90 days.

By setting an alert you agree to receive price drop emails from Back to the Office for this item and others you view. No newsletters. Unsubscribe at any time. Privacy policy

Overview
  • Low profile, half-length x8 PCIe Gen 4.0 adapter
  • Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
  • SFF-8654 (SlimSAS) x8 connectors
  • Form-factor friendly cable exit
  • Hardware Secure Boot and SPDM Attestation support
  • Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
  • SFF-TA-1005 Universa Bay Management (UBM) Ready
  • Add more protection and peace of mind with CacheVault flash cache protection

The MegaRAID 9600 series is the third generation of Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency and 60x increase in performance during rebuilds over the previous generation.

The MegaRAID 9660-16i adapter, based on the SAS4116 RAID-on-Chip (RoC), is the highest performing x8 PCIe Gen 4.0 storage adapter available to meet the ever-increasing demands of the data center. The low power MegaRAID 9660-16i allows users to seamlessly transition their existing storage infrastructure to get breakthrough SSD performance with minimal airflow and cooling requirements.

Specifications

Ports & interfaces

Host interfacePCIe
Output interfaceSAS, SATA, SFF-8654
Expansion card form factorLow-profile
Expansion card standardPCIe 4.0
NVMeYes
Internal mini-SAS ports2

Design

InternalYes
Product colourBlack, Green, Silver
Mean time between failures (MTBF)3000000 h
CertificationAustralia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020);
Show all 24 specificationsShow fewer specifications

Features

S.M.A.R.T. supportYes
RAID levels0, 1, 5, 6, 10, 50, 60

Power

Power consumption (typical)20 W

Operational conditions

Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 90%

Technical details

Warranty period3 year(s)
Compliance certificatesRoHS, WEEE
Sustainability complianceYes

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Server operating systems supportedSUSE Linux Enterprise Server
Other operating systems supportedVMware vSphere ESXi

Weight & dimensions

Width155.5 mm
Depth68.8 mm
