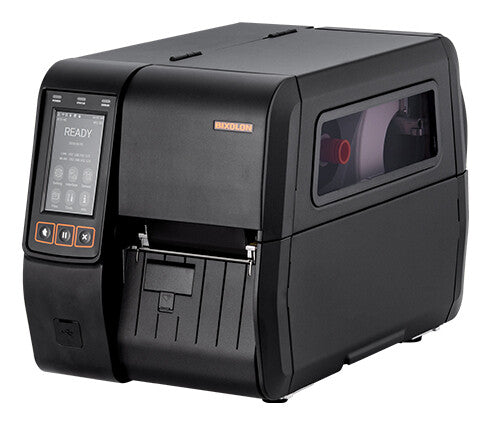

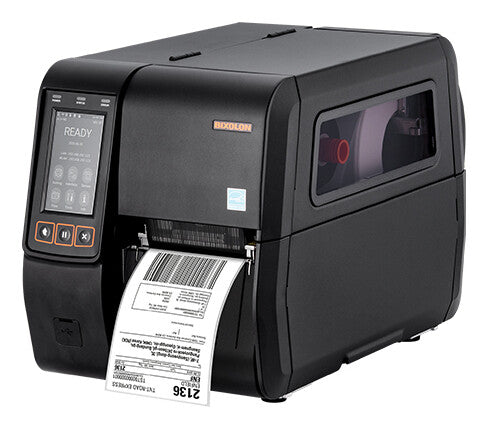

Bixolon XT5-43 label printer Direct thermal / Thermal transfer 300 x 300 DPI 254 mm/sec Wired Ethernet LAN
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £470.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Maximum resolution300 x 300 DPI
- Internal memory512 MB
- Display diagonal10.9 cm (4.3")
- Weight14 kg
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Direct thermal / Thermal transfer
- 300 x 300 DPI
- Maximum printing width: 10.6 cm Print speed: 254 mm/sec
- Connectivity technology: Wired
- USB port Ethernet LAN
- Display: LCD 10.9 cm (4.3") Colour display Backlight display
- 14 kg
Providing a consistent look and feel to BIXOLON's newer label printer lineups, the mid-tier Industrial class 4-inch (114mm) label printer supports UHF RFID print and encode capability. The XT5-40 series offers such key features as a USB Host, wireless; WLAN or MFi certified Bluetooth, 1Gigabit Ethernet, and print speeds up to 14 ips (356mm/sec). Choices of up to 600 dpi resolution for high definition output and 3.5 inch colour or 4.3 inch full-colour touch LCD display, plus easy in-field upgrades of media handling options – peel dispense and cutter, and factory-installed rewind configurations means that there is a choice for all your printing needs. Offering
The XT5-40 series is an industrial workhorse that ensures downtime is kept to a minimum thanks to its intuitive media and ribbon loading; The printer can be easily controlled thanks to the simple menu layout but can be also be viewed and controlled remotely thanks to the XPM device management software.
Specifications
Printing
| Maximum printing width | 10.6 cm |
|---|---|
| Print speed | 254 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Print technology | Direct thermal / Thermal transfer |
Paper handling
| Media thickness | 0.06 - 0.30 mm |
|---|---|
| Maximum roll diameter | 20.3 cm |
| Core diameter | 2.54 cm |
| Ribbon length | 450 m |
| Ribbon width | 11 cm |
Show all 40 specificationsShow fewer specifications
Ports & interfaces
| Optional connectivity | Serial (RS-232) |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
Performance
| Flash memory | 512 MB |
|---|---|
| Internal memory | 512 MB |
| Page description languages | DPL, EPL, SLCS, ZPL II |
Design
| Control type | Touch |
|---|---|
| Backlight display | Yes |
| Colour display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Display | LCD |
| Built-in display | Yes |
| Product colour | Black |
Power
| AC input frequency | 50 - 60 Hz |
|---|---|
| AC input voltage | 100 - 240 V |
System requirements
| Linux operating systems supported | Yes |
|---|---|
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Mac operating systems supported | Yes |
Operational conditions
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Weight | 14 kg |
|---|---|
| Height | 324 mm |
| Depth | 490 mm |
| Width | 269 mm |
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| Emulations | SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL), BPL-D™ (DPL) |
|---|
