Axis TU8003 Midspan
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £102.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- CompatibilityQ6074-E PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6135-LE PTZ, Q6225-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ, P3735-PLE, P3737-PLE, P3738-PLE
- Weight415 g
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Midspan
- Universal
- Brand compatibility: Axis
- Ethernet LAN
- 90 W

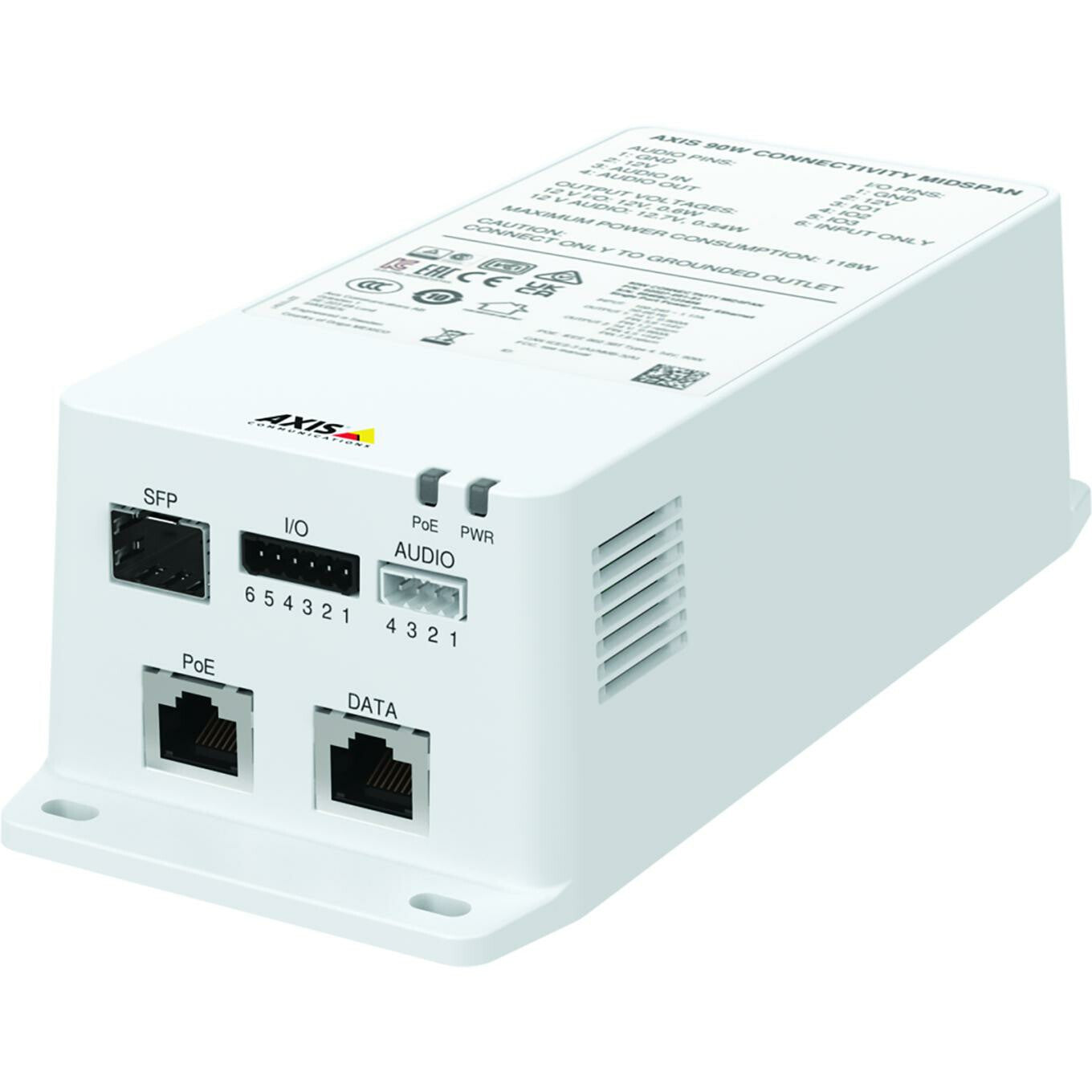

AXIS TU8003 90 W Connectivity Midspan
This midspan delivers a power output of 90 W. With portcast technology it enables both audio and I/O connectivity to your Axis PTZ cameras. Plus, with an SFP port, it supports both network and fiber installations.
Add connectivity
With AXIS TU8003 you can easily add two-way audio and I/O connectivity to your cameras. With portcast technology, this midspan uses the camera’s IP address to provide seemingly camera-integrated audio and I/O connectivity. This enables audio and video in one stream over the network with no extra VMS license. Plus, it supports both digital and unbalanced microphones.
Add power possibilities
AXIS TU8003 deliveries up 90 W and can be used to power selected PTZ cameras. Featuring a built-in SFP slot, it is perfect for long-distance installations. And, with remote on/off functionality with I/O, it's possible to save power if needed. Furthermore, this 90 W midspan is compatible with IEEE 802.3bt, IEEE 802.3af (15 W), IEEE 802.3at and Axis High PoE.
Specifications
Features
| Certification | UL/cUL, BIS, CE, KC, VCCI, RCM, TAA |
|---|---|
| LED indicators | Yes |
| Networking standards | IEEE 802.3bt |
| Product colour | White |
| Compatibility | Q6074-E PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6135-LE PTZ, Q6225-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ, P3735-PLE, P3737-PLE, P3738-PLE |
| Brand compatibility | Axis |
| Placement supported | Universal |
| Type | Midspan |
Ports & interfaces
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Connectivity technology | Wired |
Show all 26 specificationsShow fewer specifications
Power
| Output voltage | 54 V |
|---|---|
| Input frequency | 50/60 Hz |
| Input voltage | 100-240 V |
| Rated power | 90 W |
Weight & dimensions
| Weight | 415 g |
|---|---|
| Width | 80 mm |
| Depth | 184 mm |
| Height | 56 mm |
| Cable length | 1.8 m |
Operational conditions
| Storage relative humidity (H-H) | 5 - 95% |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | -25 - 60 °C |
Technical details
| Doesn't contain | PVC |
|---|---|
| Compliance certificates | REACH, RoHS |
