Axis · MPN: 03004-001
£180.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £60.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • CompatibilityAXIS P1375-E Network CameraAXIS P1377-LE Network CameraAXIS P1378-LE Network CameraAXIS P1385-E Network CameraAXIS P1385-BE Network CameraAXIS P1387-BE Network CameraAXIS P1387-LE Network CameraAXIS P1388-BE Network CameraAXIS P1388-LE Network CameraAXIS Q1656-BE Box CameraAXIS Q1656-BLE Box CameraAXIS Q1656-DLE Box CameraAXIS Q1656-LE Box Camera
  • Weight294 g
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • IR range up to 50 m (164 ft)
  • Power-efficient 850 nm IR
  • Optimized for License plate capture
  • Has 4 lenses
  • Powered by the camera

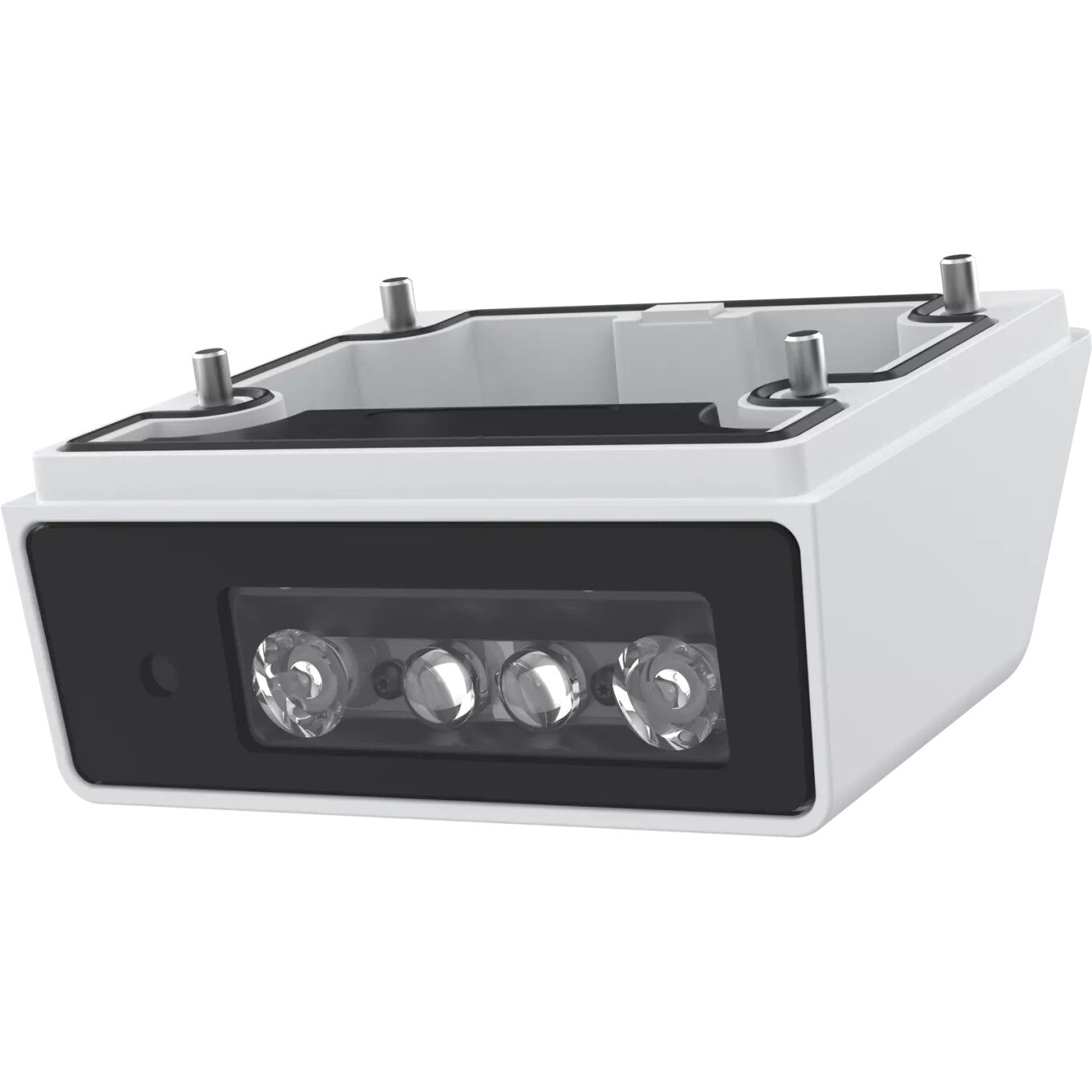

AXIS TQ1937-E IR Illuminator Kit has a powerful IR and is designed to fit AXIS Q16 Series and AXIS P13 Series. The improved IR has four lenses: two wide-angle lenses for zoomed-out views and two tele lenses for zoomed-in views. This kit is optimized for traffic use cases and ensures accurate license plate reading. It enables cost-efficient surveillance in pitch darkness and includes power-efficient, long-life 850 nm IR with a range of reach of 50 m (164 ft). The IP66/IP67 and IK10-rated IR can easily be mounted on the bottom of the outdoor models in AXIS Q16 Series and AXIS P13 Series.

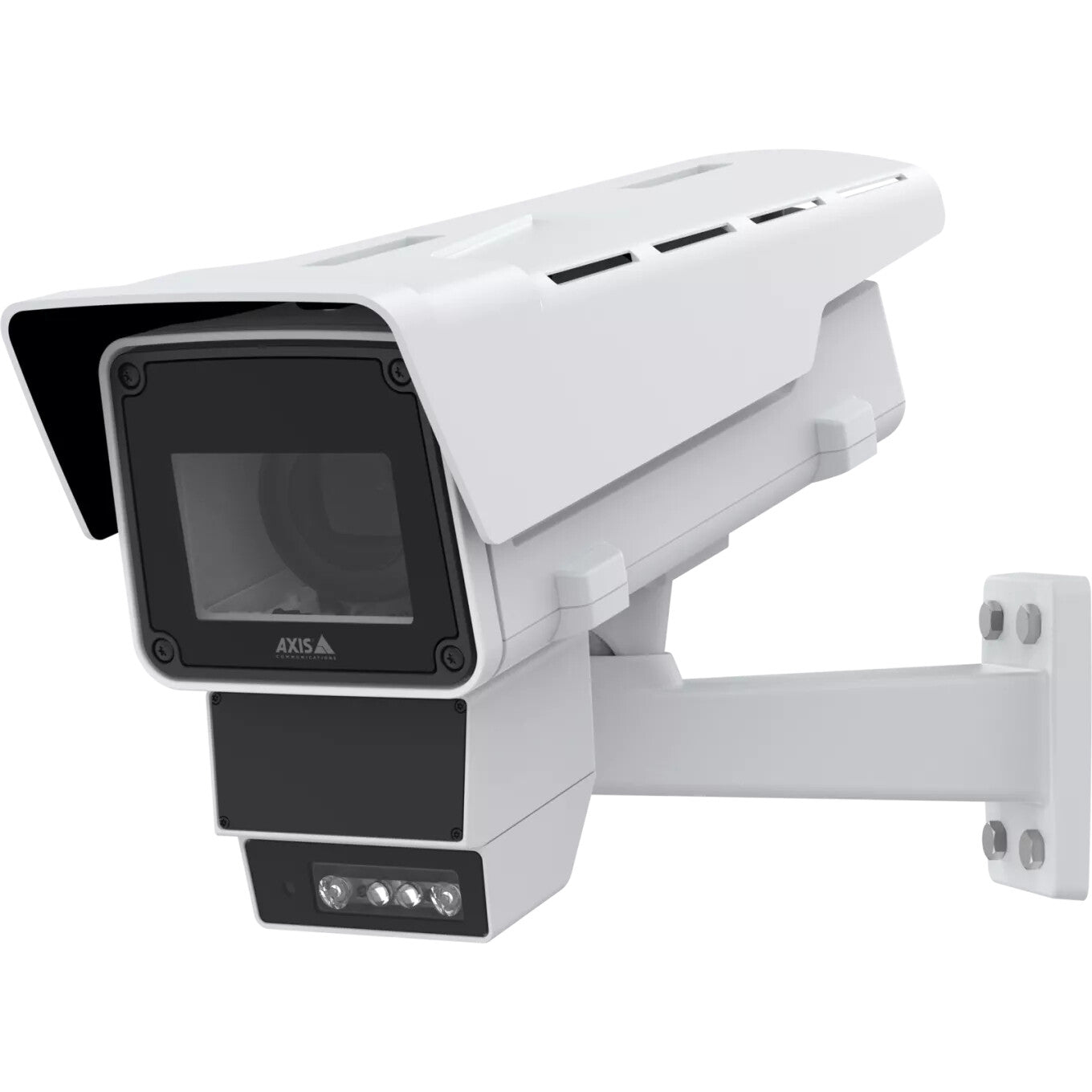

AXIS TQ1937-E IR Illuminator Kit is included in AXIS Q1686-DLE.

Specifications

Features

IK codeIK10
Housing materialAluminium, Polycarbonate (PC)
Product colourBlack, White
CompatibilityAXIS P1375-E Network CameraAXIS P1377-LE Network CameraAXIS P1378-LE Network CameraAXIS P1385-E Network CameraAXIS P1385-BE Network CameraAXIS P1387-BE Network CameraAXIS P1387-LE Network CameraAXIS P1388-BE Network CameraAXIS P1388-LE Network CameraAXIS Q1656-BE Box CameraAXIS Q1656-BLE Box CameraAXIS Q1656-DLE Box CameraAXIS Q1656-LE Box Camera
Brand compatibilityAxis
Placement supportedOutdoor
TypeIlluminator

Power

Power consumption (max)4.1 W
Power consumption (typical)2 W
Input voltage5.3 V
Show all 20 specificationsShow fewer specifications

Weight & dimensions

Weight294 g
Width100 mm
Depth80 mm
Height40 mm

Operational conditions

Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 100%
Operating temperature (T-T)-40 - 60 °C

Technical details

Doesn't containBFR, CFR, PVC
Compliance certificatesElectromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ICES, RCM, REACH, RoHS, UL
