Axis · MPN: 03049-001
£2,127.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £709.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Connectivity technologyWired
  • Weight10.5 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • Responsive positioning with 360° endless pan and 135° tilt from ground to sky
  • Long-distance network connection
  • Power: 56 VDC
  • Weather protection
  • For selected Axis box and thermal cameras

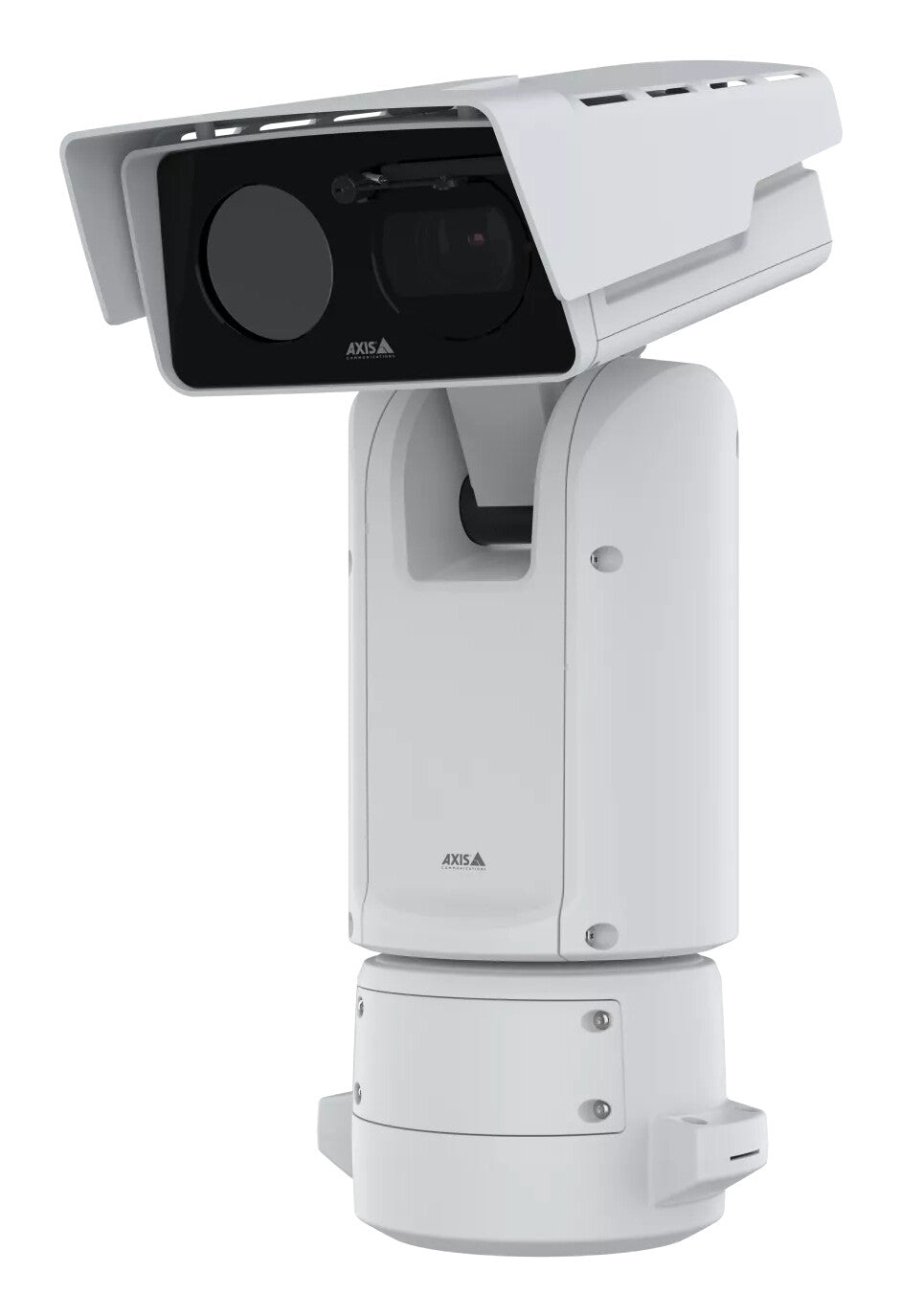

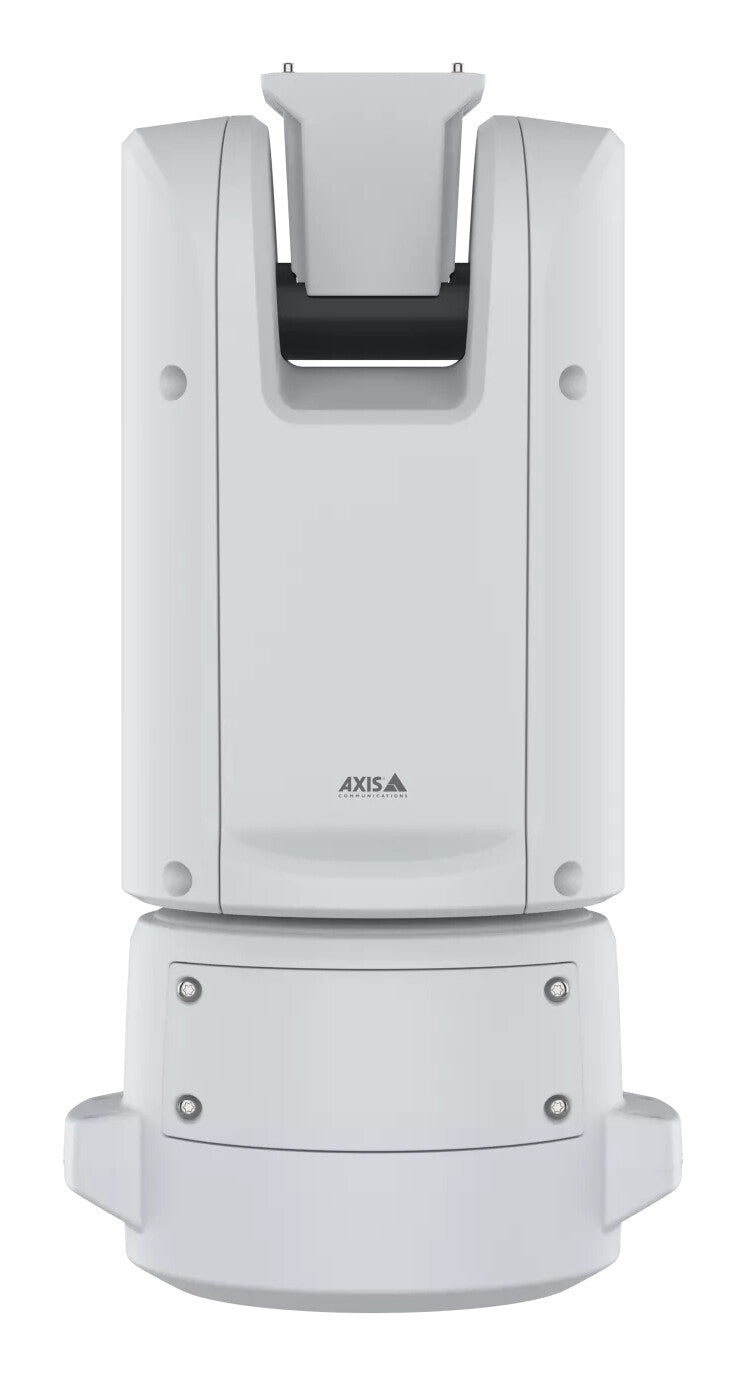

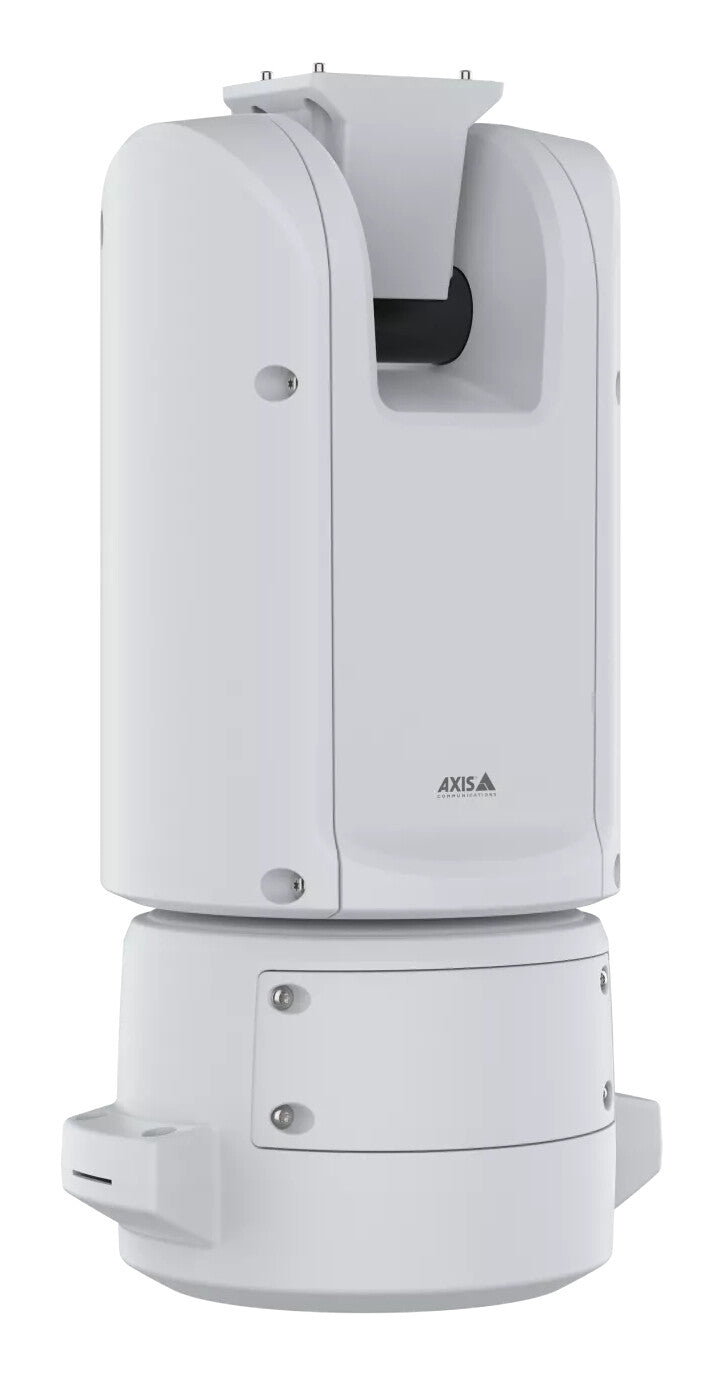

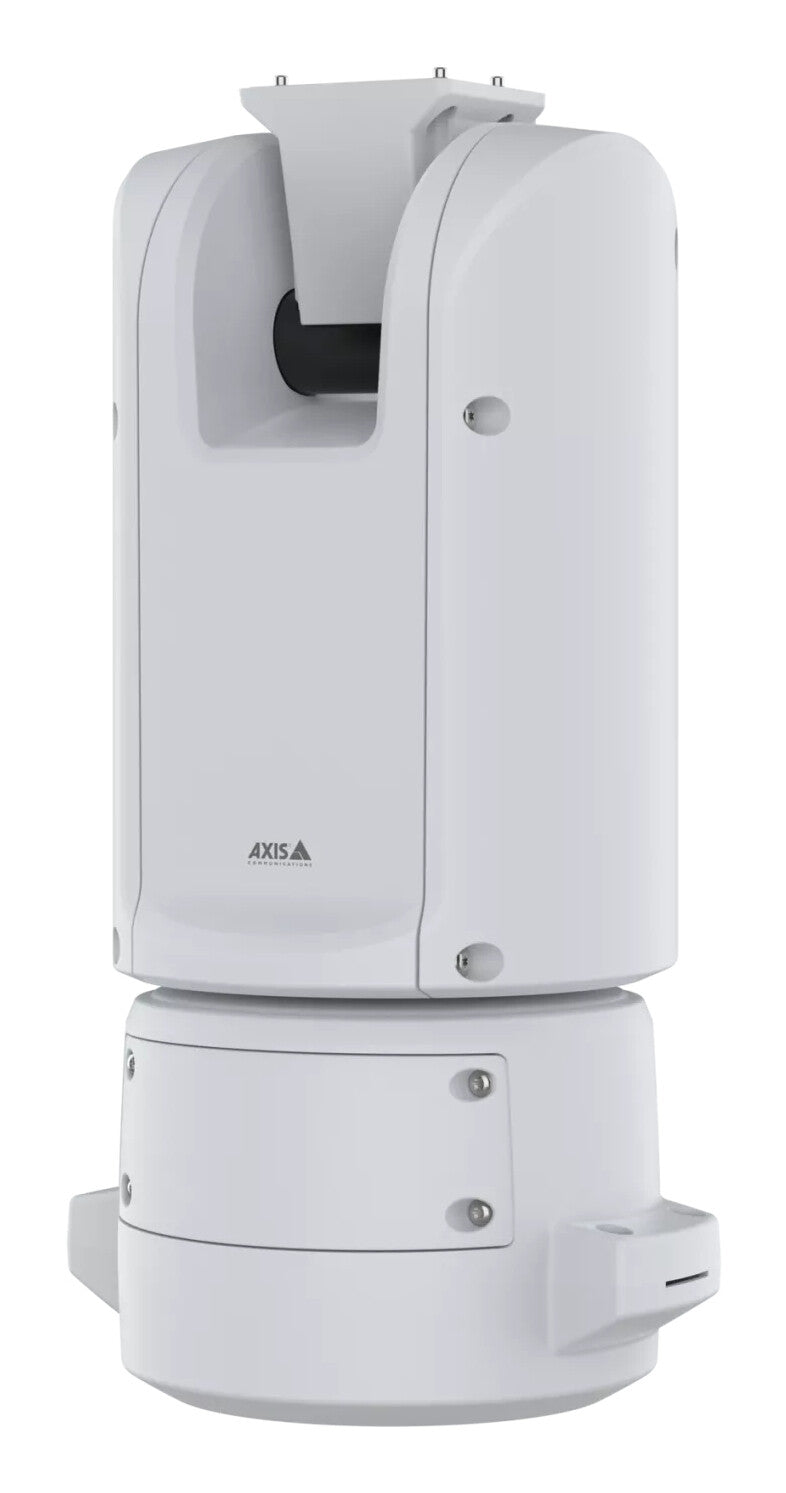

AXIS TQ1818-E is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements – putting operators on the spot in an instant or providing smooth panoramic viewing.

Swift and smooth

AXIS TQ1818-E provides an unobstructed 360° endless pan and a ground-to-sky view of 135°, offering maximum situational awareness. It supports a selected range of Axis box and thermal cameras. With flexible mounting options, including wall, column, and pole mounts, AXIS TQ1818-E is simple to install in various environments. Dual RJ45 and SFP interfaces enable secure and reliable network connections over long distances. Built-in de-icing control ensures continuous operation in extreme temperatures, delivering high-performance results in any condition. The positioning unit is specifically designed to be reliable, robust and weatherproof.

Specifications

Features

Placement supportedOutdoor
Product colourWhite
International Protection (IP) codeIP66
IK codeIK10
Protection featuresWeather resistant
CertificationUL/cUL, CE, KC, VCCI, RCM

Ergonomics

Maximum weight capacity5 kg
Turn angle360°
Tilt angle range-90 - 45°
Show all 24 specificationsShow fewer specifications

Ports & interfaces

Connectivity technologyWired
Line-inYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LANYes

Power

Input voltage56 V
Power consumption (typical)17 W
Power consumption (max)150 W

Weight & dimensions

Weight10.5 kg
Height396 mm
Depth207 mm
Width229 mm

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)10 - 100%
Storage temperature (T-T)-40 - 65 °C
Storage relative humidity (H-H)5 - 95%
