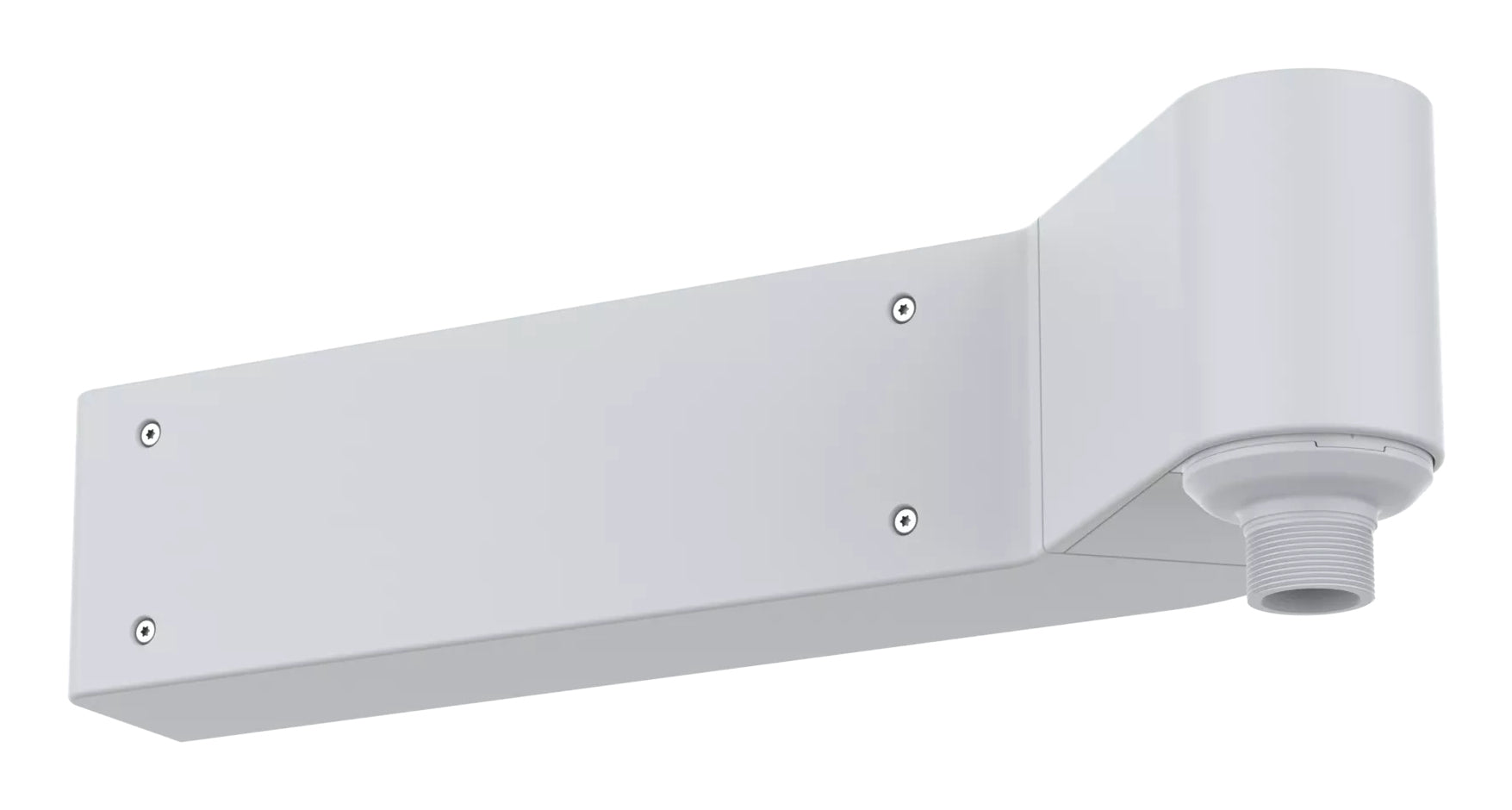

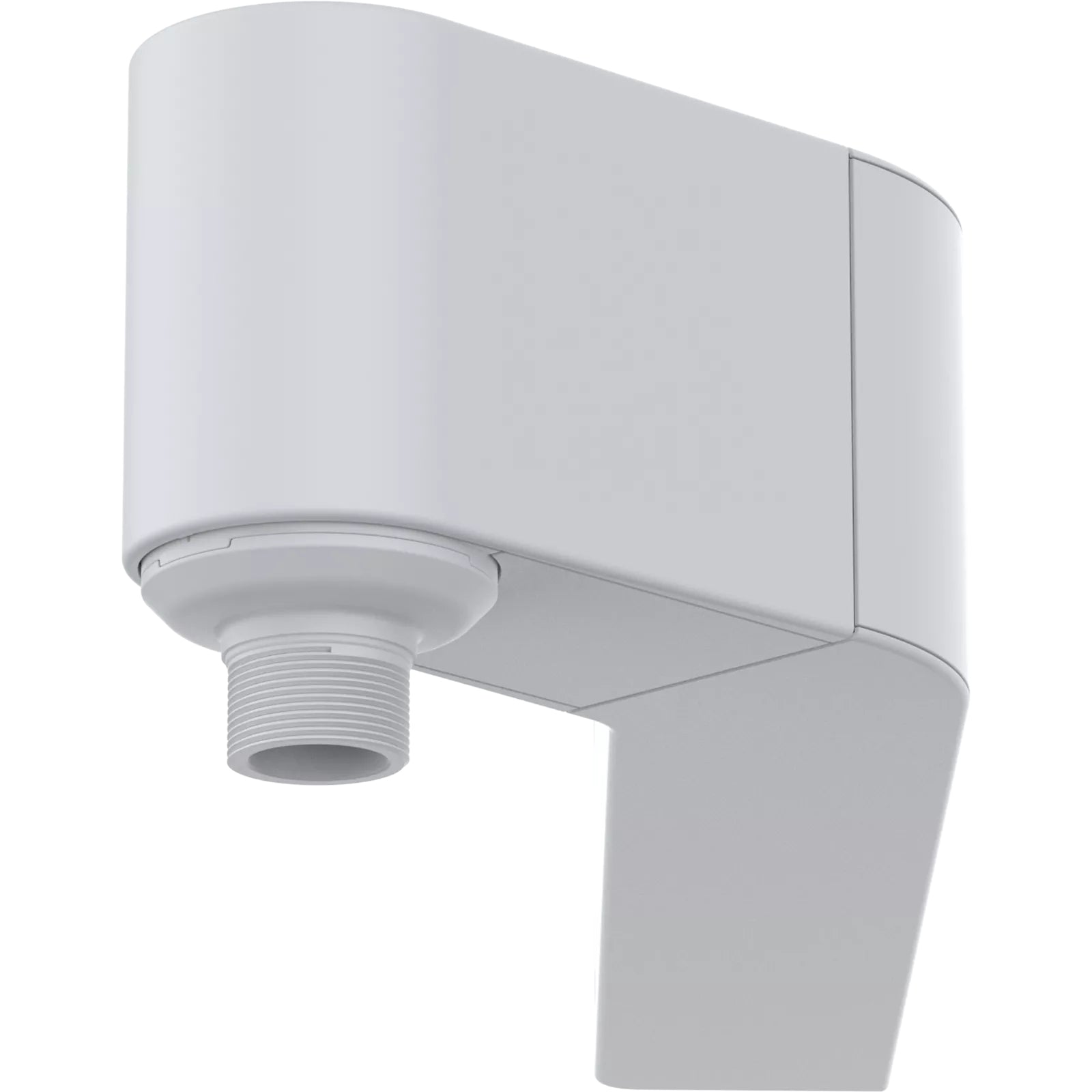

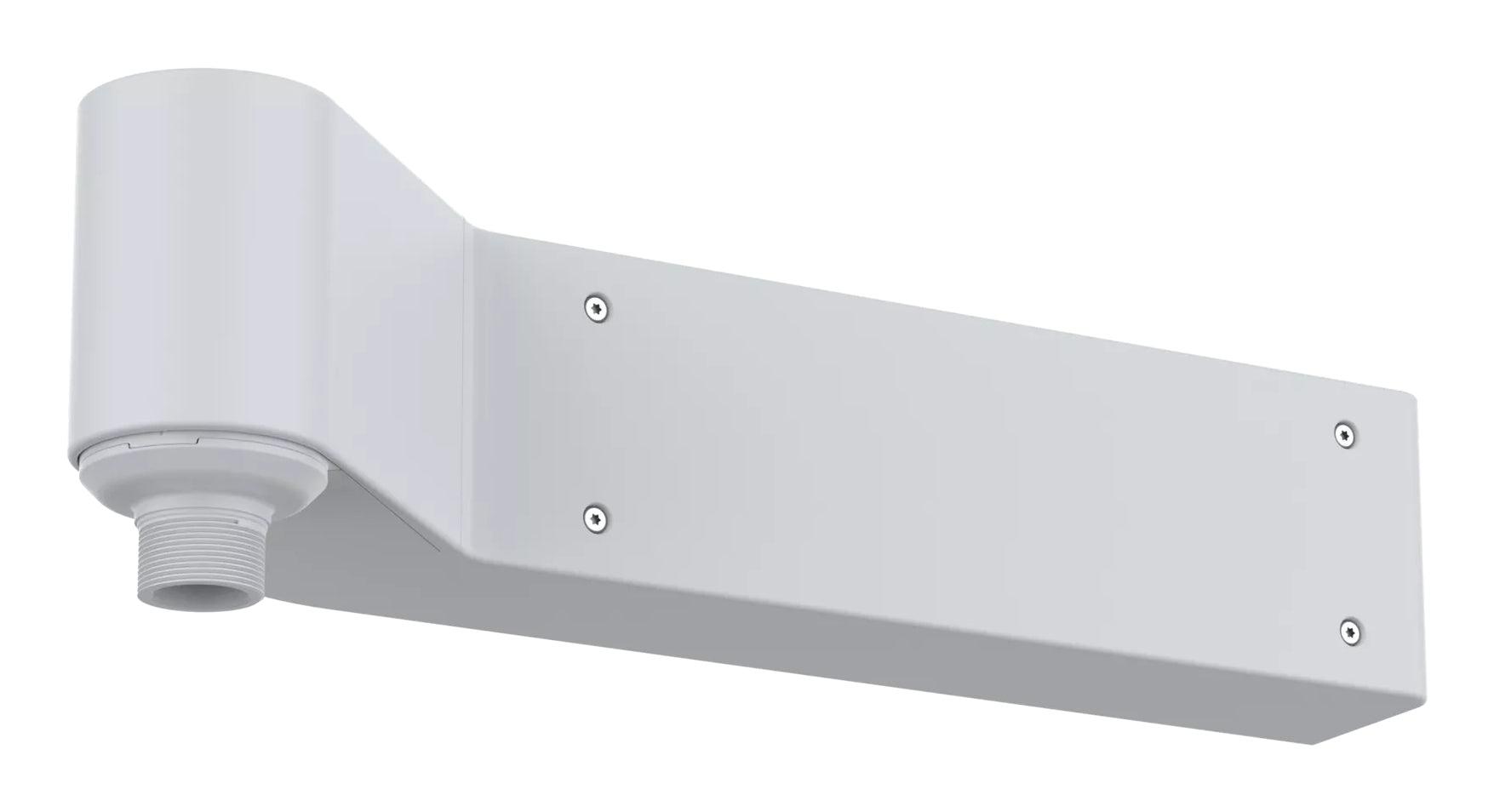

Axis TP3302-E Corner mount
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £182.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- CompatibilityAXIS T94K01D Pendant KitAXIS T94M01D Pendant KitAXIS T94N01D Pendant KitAXIS T94N02D Pendant KitAXIS T94T02D Pendant KitAXIS TP3103-E Pendant KitAXIS TQ3103-E Pendant Kit
- Weight4.82 kg
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Aesthetically appealing design
- Mountable on either left or right side
- Spacious compartment for connectivity devices
- Robust, IK10-rated
- Outdoor and indoor-ready
With a stylish design, this compact, all-in-one, outdoor-ready mount blends seamlessly into most indoor and outdoor environments. It offers flexible installation and can be mounted on either the left or right side to suit specific needs.
Stylish and robust

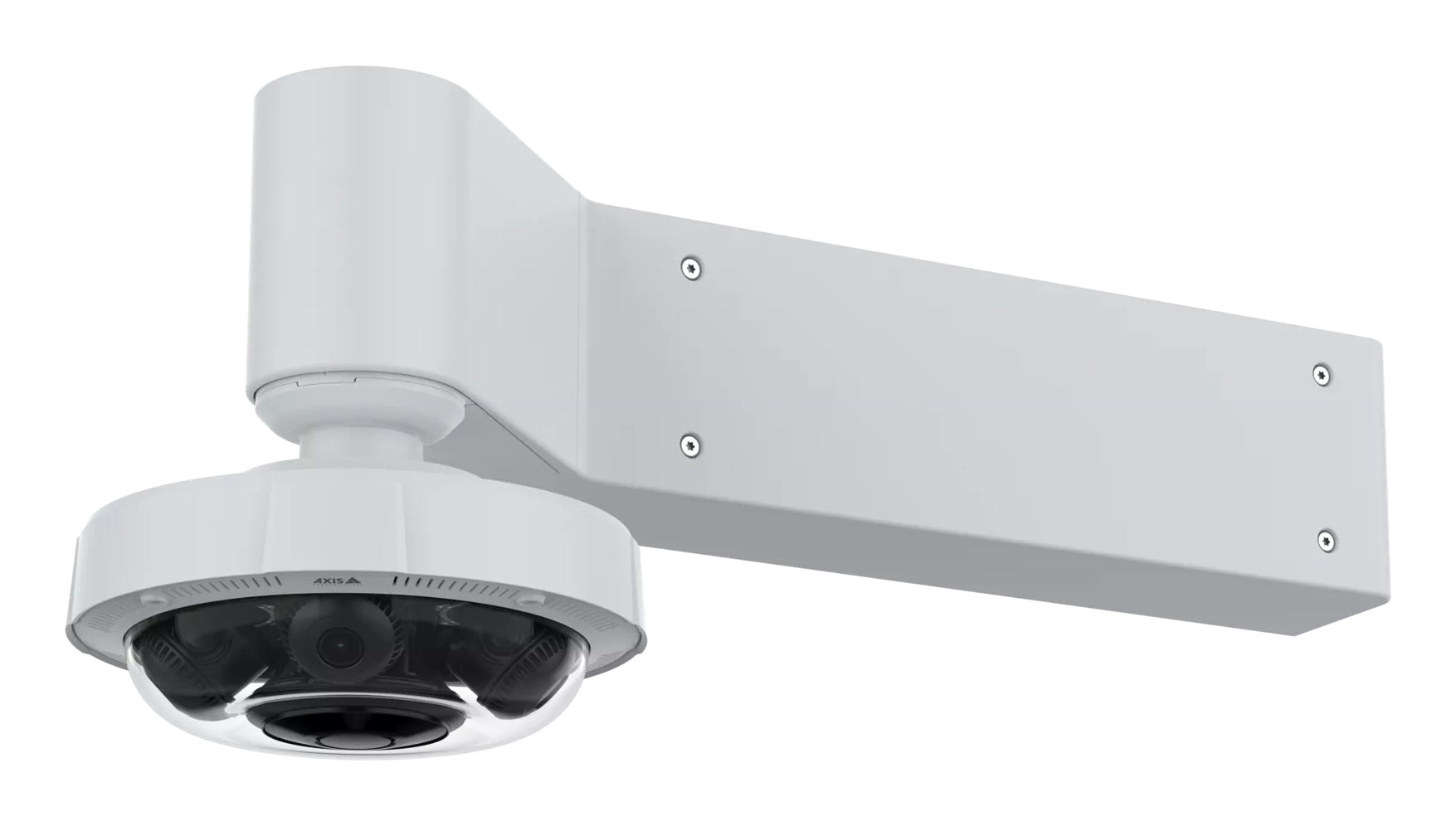

Designed to withstand impact and harsh weather, the outdoor-ready mount is ideal for a wide range of indoor and outdoor environments. With its stylish design, it blends perfectly into most buildings and it’s easily repaintable. This versatile mount allows you to flip the mounting bracket, making it possible to mount on either the left or right side. In addition, it’s built to last with a lifespan that matches the expected lifetime of several cameras. And with the flexibility to install various PTZ cameras, this compact and robust mount helps ensure you preserve the value of your investment, making it a smart, future-proof choice.
Spacious compartment for protection and connectivity
This all-in-one device features an IP66-rated compartment designed to safeguard against water ingress and protect devices like midspans and media converters. Furthermore, a pre-mounted Ethernet cable enables quick and easy connection of power and data to a broad range of Axis PTZ network cameras.
Specifications
Features
| IK code | IK10 |
|---|---|
| International Protection (IP) code | IP66 |
| Mounting type | Wall |
| Housing material | Plastic |
| Product colour | White |
| Compatibility | AXIS T94K01D Pendant KitAXIS T94M01D Pendant KitAXIS T94N01D Pendant KitAXIS T94N02D Pendant KitAXIS T94T02D Pendant KitAXIS TP3103-E Pendant KitAXIS TQ3103-E Pendant Kit |
| Brand compatibility | Axis |
| Placement supported | Outdoor |
| Type | Corner mount |
Ergonomics
| Number of connectors | 1 |
|---|---|
| Connector gender | Male/Female |
| Connecting thread | 3/4" |
Show all 28 specificationsShow fewer specifications
Ports & interfaces
| Number of inputs | 1 inputs |
|---|---|
| Number of outputs | 1 outputs |
| Connectivity technology | Wired |
Weight & dimensions
| Weight | 4.82 kg |
|---|---|
| Width | 689 mm |
| Depth | 232 mm |
| Height | 191.3 mm |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Mounting kit | Yes |
Operational conditions
| Storage relative humidity (H-H) | 5 - 95% |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Operating temperature (T-T) | -40 - 65 °C |
Technical details
| Warranty period | 3 year(s) |
|---|---|
| Doesn't contain | PVC, PVC/BFR |
| Compliance certificates | CE, REACH, RoHS |
