Axis TP1001-E Mount
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £69.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Robust, IK10-rated
- For indoor and outdoor use
- Versatile connection with IDC connector
- Built-in IP66-rated RJ45 connector

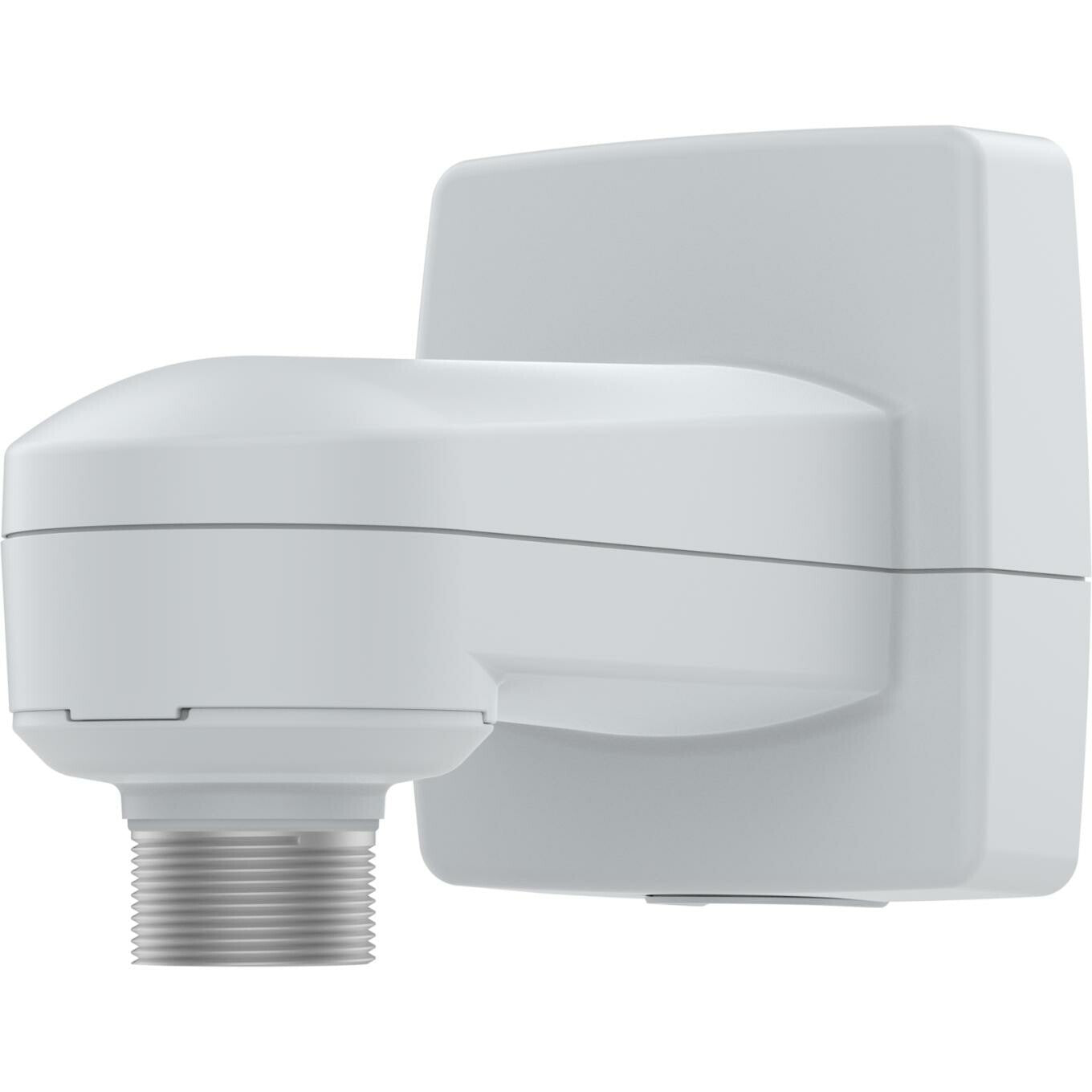

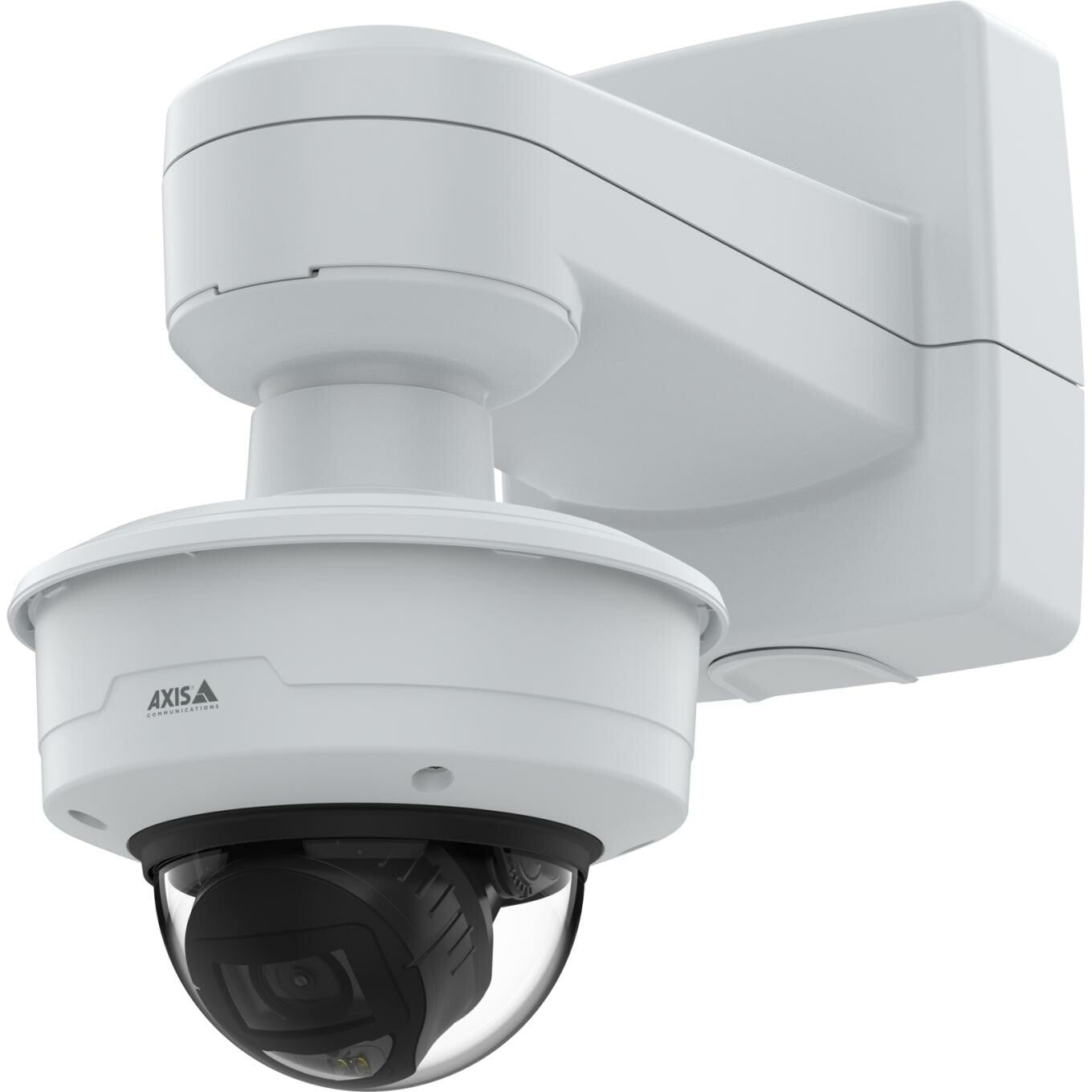

Designed for Axis dome cameras, AXIS TP1001-E Wall-and-Pole Mount offers flexible installation and versatile connection with RJ45 or IDC connectors.
With this wall-and-pole mount, installers can choose to use either an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TP1001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TP1001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.
Specifications
Features
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Product colour | White |
| Compatibility | P3255-LVE, Q3538-LVE, P3727-PLE |
| Brand compatibility | Axis |
| Placement supported | Universal |
| Type | Mount |
Ergonomics
| Maximum weight capacity | 40 kg |
|---|
Show all 22 specificationsShow fewer specifications
Ports & interfaces
| DC-in jack | Yes |
|---|
Weight & dimensions
| Weight | 2.16 kg |
|---|---|
| Width | 152.6 mm |
| Depth | 291.8 mm |
| Height | 183.6 mm |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Mounting kit | Yes |
Operational conditions
| Storage relative humidity (H-H) | 10 - 100% |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Operating temperature (T-T) | -50 - 65 °C |
Technical details
| Doesn't contain | PVC |
|---|
