Axis · MPN: 02809-003
£5,147.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,715.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Internal memory typeDDR5
  • Internal memory16000 MB
  • Maximum resolution7680 x 4320 pixels
  • Weight11 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • All-in-one solution with integrated PoE switch
  • 16 AXIS Camera Station Pro licenses included
  • Room for storage expansion
  • Advance Replacement Service and 5-year hardware warranty
  • High cybersecurity features and standards

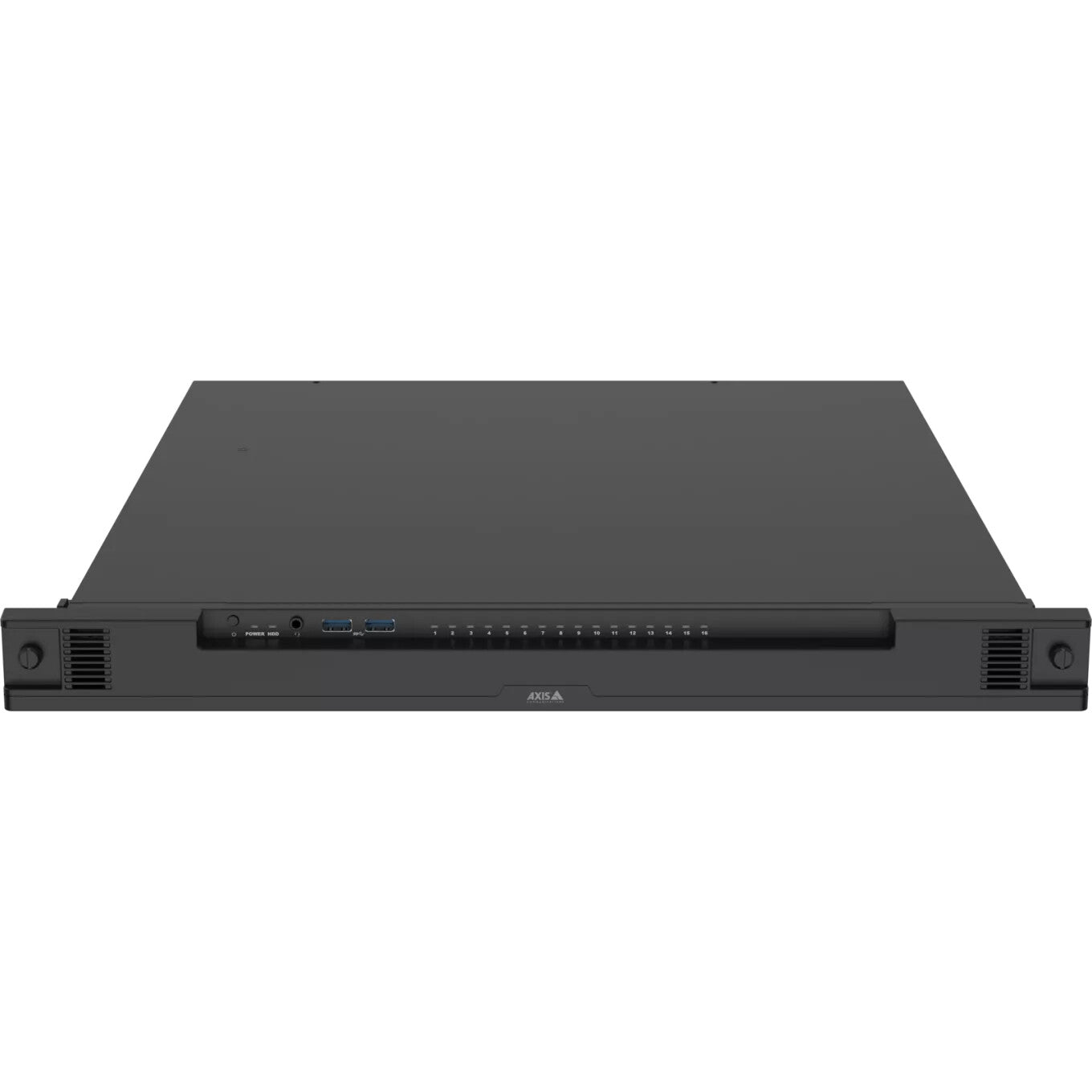

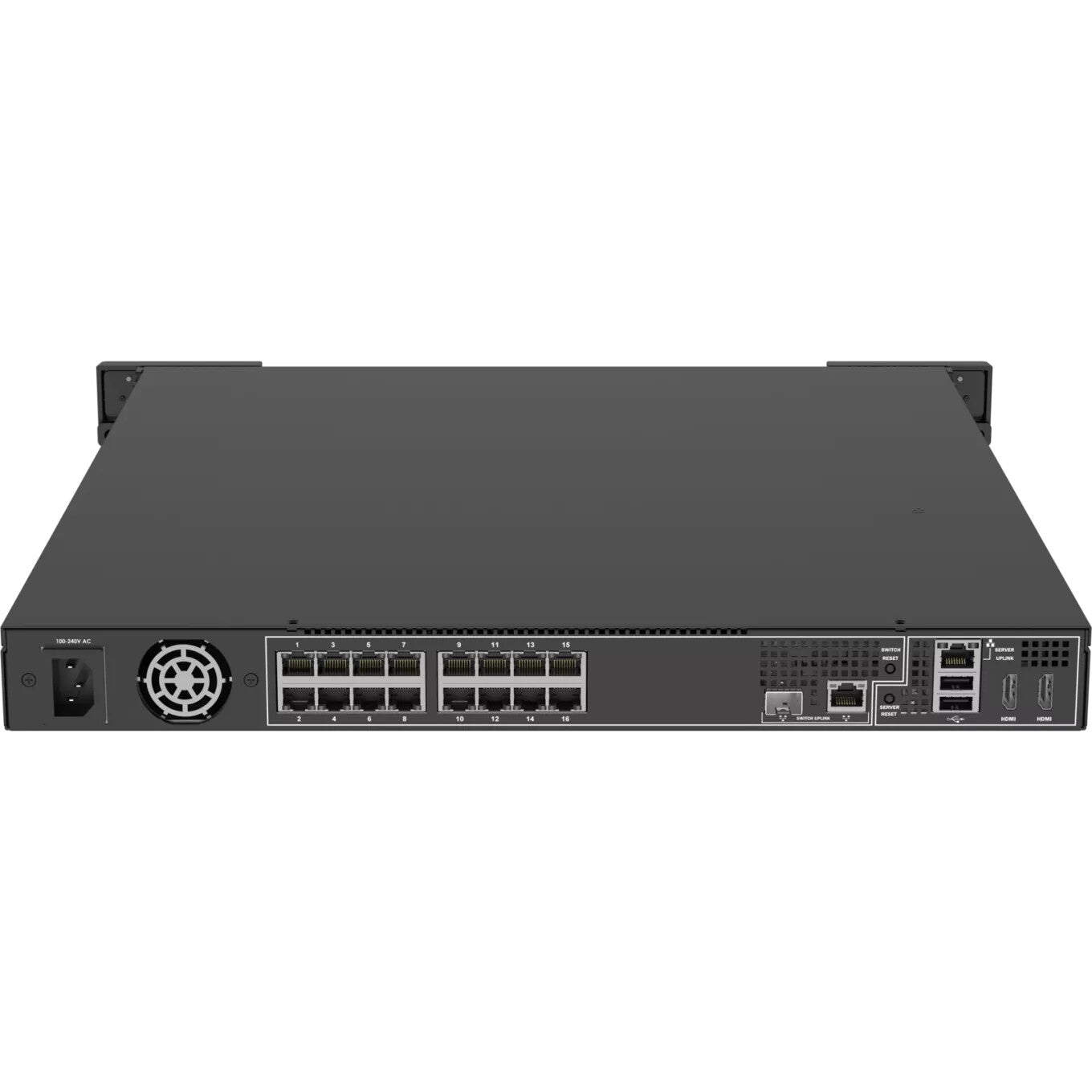

AXIS Camera Station S2216 Mk II Rack Appliance

This 16-channel rack appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 16-port PoE switch, and 8 TB of storage. It comes with pre-loaded software and tools to minimize installation time.

Powerful and versatile

This rack appliance is ideal in larger installations such as manufacturing sites and commercial buildings. With 16 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. And, it provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. It comes with two empty bays for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, this powerful recorder supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.

Easy to install and maintain

It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to guide you setting up hostname, network settings in different environments, and date and time settings. It also includes a dashboard providing information on the built-in switch configuration, PoE management functions and troubleshooting tools. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.

Created with cybersecurity in mind

This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.


Specifications

Performance

Throughput data rate256 Mbit/s
Maximum frame rate30 fps
Internal memory typeDDR5
Internal memory16000 MB
Maximum resolution7680 x 4320 pixels
Video recording modes1080p
Video input channels16 channels

Hard drive

RAID levels0, 1, 10
RAID supportYes
Maximum storage capacity16 TB
Number of HDDs supported4
HDD capacity4 TB
Number of HDDs installed2
Show all 43 specificationsShow fewer specifications

Solid state drive

SSD capacity256 GB
Number of SSDs installed1

Ports & interfaces

Fiber ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 2.0 ports quantity2
HDMI ports quantity2
Power over Ethernet (PoE) ports quantity16
Power over Ethernet (PoE)Yes
Ethernet LAN (RJ-45) ports16

Features

CertificationFIPS 140–2 Level 2, UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
Product colourBlack
Rack capacity1U
Rack mountingYes

Processor

Built-in processorYes

Power

Total Power over Ethernet (PoE) budget520 W
AC input frequency50/60 Hz
AC input voltage100-240 V
Power consumption (typical)110 W
Power consumption (max)130 W

System requirements

Windows operating systems supportedWindows 11

Operational conditions

Storage relative humidity (H-H)10 - 90%
Storage temperature (T-T)10 - 90 °C
Operating relative humidity (H-H)-40 - 65%
Operating temperature (T-T)0 - 40 °C

Technical details

Compliance certificatesTrade Agreements Act (TAA)

Weight & dimensions

Weight11 kg
Height45 mm
Depth440 mm
Width483 mm

Packaging content

Cables includedAC
