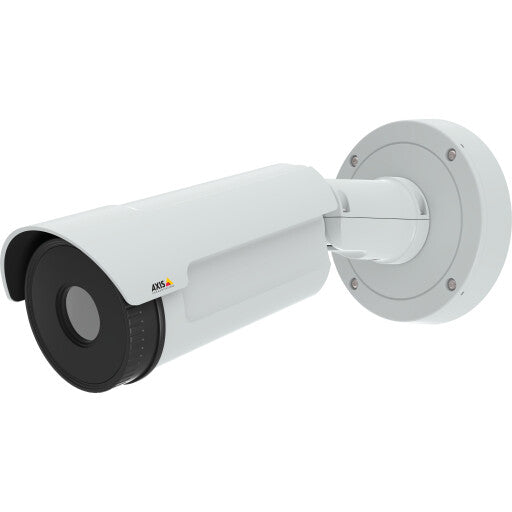

Axis Q1941-E Bullet IP security camera Outdoor 384 x 288 pixels Ceiling/wall
Couldn't load pickup availability
- Outdoor IP security camera
- 384 x 288 pixels
- Wired Ethernet LAN
- Bullet Ceiling/wall
- IP67
- White
- 2 kg
- Powerful performance for video analytics via ACAP applications
- Outstanding image contrast gives reliable detection and fast verification
- Easy and quick to install outdoors
- 384x288 thermal detection
Powerful video analytics of live or recorded video
Thanks to its powerful processor, AXIS Q1941-E has high capacity for running video analytics via AXIS Camera Application Platform (ACAP) and can use a wide range of third party applications. The camera also offers a memory card slot for storing recordings locally.
Reliable thermal detection with low rate of false alarms
Since thermal cameras are less sensitive to problems with light conditions and shadows, they can achieve higher accuracy and less false alarms than conventional cameras in most applications. Thanks to a superb thermal image contrast, AXIS Q1941-E reliably detects and gives a fast verification of the situation, e.g. in perimeter surveillance. With five lens alternatives (7 mm, 13mm, 19 mm, 35 mm and 60 mm), the network camera can optimize detection performance to meet most application requirements.
Squeezed storage. Keep the essence with Axis' Zipstream technology
A thermal camera is mainly used for video analytics and detection in those restricted areas where no one should trespass or walk around. Based on these premises, the video shows no motion at all, unless an intruder is detected. Supporting Axis' Zipstream technology, AXIS Q1941-E filters out those areas with no motion, and it can focus on the parts of the image that are moving. This significantly reduces the bandwidth and storage required. Moreover, the Electronic Image Stabilization (EIS) helps the camera to provide a smooth live viewing when it is mounted on instable places and vibration can be perceived as an issue.
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Number of languages | 11 |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| International Protection (IP) code | IP67 |
| Housing material | Aluminium |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Bullet |
| Camera | |
|---|---|
| Angle of rotation | 270° |
| Lens system | |
|---|---|
| Fixed focal length | 19 mm |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Frame rate | 30 fps |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Maximum resolution | 384 x 288 pixels |
| Audio | |
|---|---|
| Built-in microphone | No |
| Audio formats supported | AAC, ADPCM, G.711, PCM |
| Network | |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Supported network protocols | IPv4/v6, HTTP, HTTPS b, SSL/TLS b, QoS 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP T M, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH |
| Networking standards | IEEE 802.3af |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Interface | RJ-45 |
| DC-in jack | Yes |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Motion sensor | Yes |
| HTTPS encryption | Yes |
| Security algorithms | 802.1x RADIUS |
| Temperature sensor | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2 kg |
| Packaging content | |
|---|---|
| Bundled software | AXIS Camera Companion, AXIS Camera Station |
| User guide | Yes |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85258900 |
