Axis P1485-LE Kit License Plate Verifier
Couldn't load pickup availability
- AXIS License Plate Verifier preinstalled
- Purpose-tuned for license plate recognition
- Recognizes vehicle type, color, make, and model
- Robust design withstands tough weather
- Easily integrate with Axis and third-party VMSs
Built for free-flow traffic, this robust, all-in-one LPR kit offers a highly efficient way to capture license plates and other vehicle details. Purpose-tuned and easy to deploy, it seamlessly integrates with Axis and third-party VMSs.
All-in-one kit for LPR and vehicle details

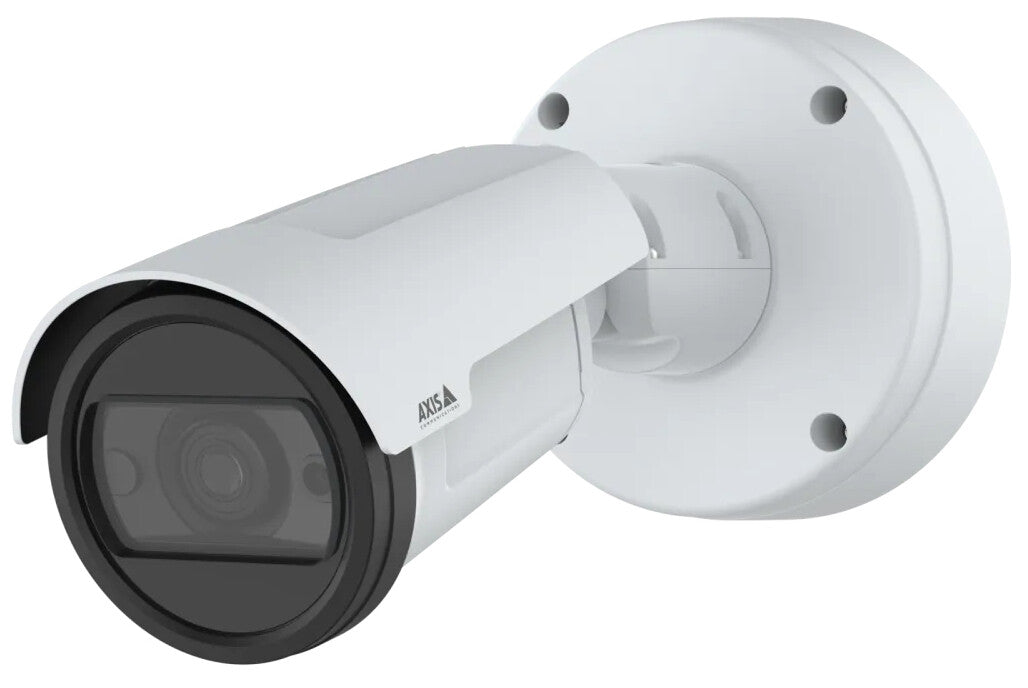

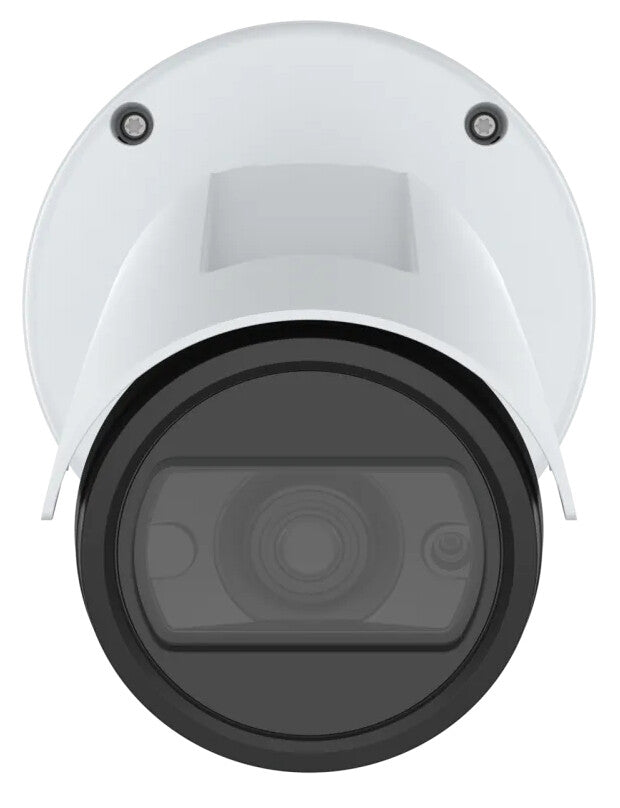

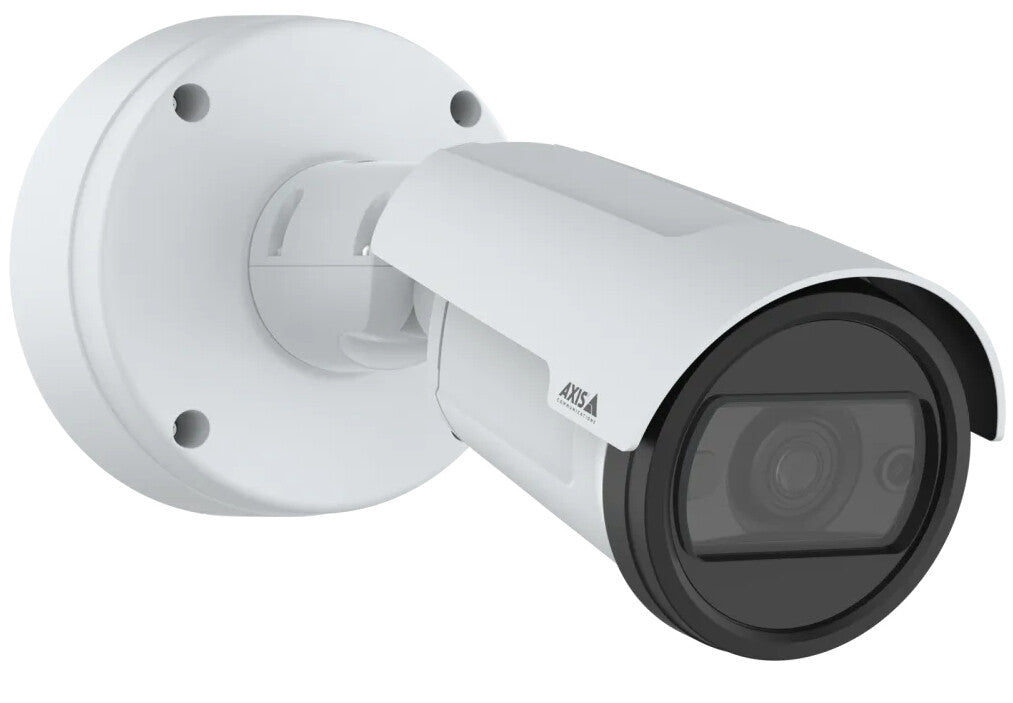

AXIS P1485-LE Kit License Plate Verifier offers a 2 MP bullet camera with AXIS License Plate Verifier preinstalled. Ideal for free-flow traffic in cities, access roads, and campuses, it’s purpose-tuned for highly reliable license plate capture of vehicles travelling up to 105 km/h (65 mph). With a powerful deep learning processing unit (DLPU), it can recognize vehicle details under optimal conditions, including type, color, make, and model – no external servers required. Advanced search and filtering make it quick and easy to locate specific vehicles. What’s more, with a 28 mm tele lens, and corridor format, it allows for sharp license plates reading from 7 to 20 m (20-65 ft).
Capture sharp images 24/7 in all environments
This robust bullet camera kit with a built-in weather shield operates in temperatures from -40 to 60°C (-40 to 140°F). With 2 MP resolution at 25/30 fps, it delivers the image clarity and frame rate needed for accurate and highly reliable license plate recognition. Thanks to Lightfinder 2.0 and OptimizedIR, it captures sharp, high-contrast images and maintains license plate readability 24/7 – even in challenging light such as strong headlights and pitch darkness. Electronic image stabilization ensures smooth video no matter where it’s mounted. And shock detection notifies you if there’s any attempts to interfere with the camera.
Effortless LPR setup and scalable integration
This all-in-one kit is fast and easy to deploy. You can have your system up and running with minimal adjustments thanks to features like remote zoom and focus, and automatic focusing tools. And traffic camera installation assistant makes it easy to align and configure the camera. Built on open APIs, this scalable solution integrates seamlessly with Axis and third-party VMSs. Additionally, the application’s open APIs lets you add tailor-made applications for more complex requirements. With its intuitive user interface, AXIS Camera Station Pro provides all the necessary features for effective surveillance and total control over your license plate recognition.
Things to consider for license plate capture
Learn how to optimize your setup for the best results
| Performance | |
|---|---|
| Type | ANPR camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Built-in processor | Yes |
| Processor model | ARTPEC-9 |
| Languages support | Multi |
| Dynamic range | 120 dB |
| Design | |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Polycarbonate (PC), Aluminium |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 29.4 - 11° |
| Lens viewing angle, vertical | 16.5 - 6.3° |
| Camera pixel size | 2.9 µm |
| Camera shutter speed | 1/37000 - 2 s |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 2.61x |
| Focal length range | 10.8 - 28.2 mm |
| Auto focus | Yes |
| Focus | Motorized |
| Minimum aperture number | 1.76 |
| Maximum aperture number | 1.7 |
| Closest focusing distance | 2.5 m |
| Night vision | |
|---|---|
| Night vision | Yes |
| Night vision distance | 45 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | AV1 |
| Video compression formats | H.264, H.265, AV1 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 640 x 360, 1280 x 800 (WXGA), 1440 x 1080, 160 x 120 |
| Supported video modes | 1080p, 360p, 800p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image stabilizer | Yes |
| Image quality adjustment | Contrast, Saturation, Brightness, Sharpness, White balance, Mirror |
| Privacy masking | Yes |
| Audio | |
|---|---|
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Audio formats supported | LPCM, AAC-LC, G.711, G.726, ADPCM, OPUS |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Cabling technology | 10/100/1000Base-T(X) |
| Storage | |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 2000 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Security | |
|---|---|
| Pixel counter | Yes |
| Detection distance | 20 m |
| Video motion detection | Yes |
| Management features | |
|---|---|
| Management software | AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5 |
| Power | |
|---|---|
| Power source type | DC, PoE |
| Power consumption | 25 mA |
| Power consumption (typical) | 6.1 W |
| Power consumption (max) | 13 W |
| Power consumption (Power over Ethernet (PoE)) | 4.63 W |
| DC output voltage | 12 |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Diameter | 13.4 cm |
| Length | 287 mm |
| Weight | 1.38 kg |
| Features | |
|---|---|
| Capture Speed Range | 0 - 105 km/h |
| Sustainability | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), ICES, KC, RCM, VCCI, RoHS, REACH |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Quick installation guide | Yes |
| Packaging content | weathershield, terminal block connector, connector guard, cable gaskets, owner authentication key |
| Technical details | |
|---|---|
| Iris | Yes |
| Other features | |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Warranty period | 5 year(s) |
| Doesn't contain | PVC/BFR, CFR, Lead, Mercury, Cadmium |
