Axis · MPN: 02457-001
£1,114.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £371.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Connectivity technologyWired
  • Maximum resolution2016 x 2016 pixels
All specifications

Out of stock

FREE delivery

Express £9.99

Price drop alert

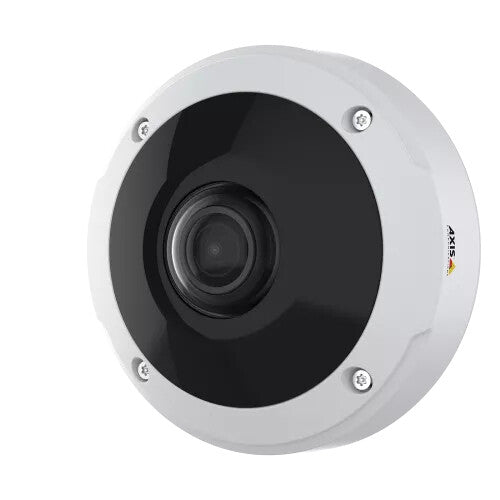

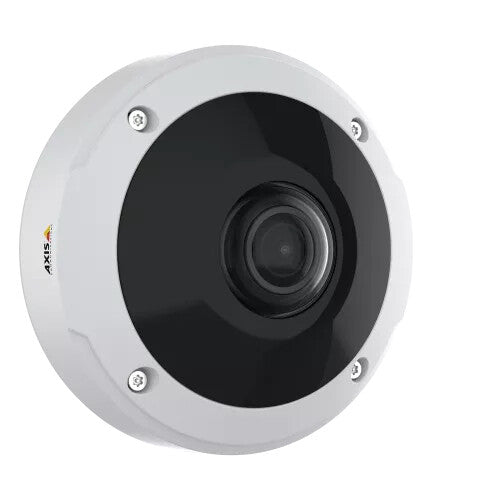

Axis M3057-PLR Dome IP security camera Indoor & outdoor 2016 x 2016 pixels Ceiling
Now £1,114.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Complete 180° and 360° overview
  • Optimized for transportation industry
  • Forensic WDR, Lightfinder, OptimizedIR
  • Factory-focused with digital roll
  • Built-in cybersecurity features

Specifically designed for onboard surveillance, this easy-to-install camera delivers a complete 180° or 360° overview regardless of light conditions. Built-in cybersecurity features help prevent unauthorized access and safeguard your system.

Optimized for the transportation industry
Specifically designed for onboard surveillance, AXIS M3057-PLR Mk II complies with transportation industry standards including EN50155 and EN45545-2. Including an M12 connector, it can withstand vibrations ideal for installation in trains and buses. This ruggedized IK10, IP66/67-rated camera can withstand harsh environments. Plus, an active tampering alarm lets you know if your camera has been tampered with. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

See everything 24/7
This 6 MP panoramic camera offers 360° wide area coverage with just one camera. Ideal for onboard surveillance, you can use one video stream to produce any dewarped views you'd like. It’s possible to stream panorama, quad, corner, and corridor views directly from the camera. And you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously. Including Axis Lightfinder, it ensures sharp color images in low light. Plus, Forensic WDR delivers clarity even when there’s both dark and light areas in the scene. Furthermore, thanks to Axis OptimizedIR it enables surveillance in total darkness.

Built-in cybersecurity features
AXIS M3057-PLR Mk II comes with built-in cybersecurity functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.

Specifications

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP66, IP67
IK codeIK10
Show all 53 specificationsShow fewer specifications

Camera

Minimum illumination0 lx
Field of view (FOV) angle360°
Lens viewing angle, horizontal183°
Lens viewing angle, vertical183°
Camera shutter speed1/16000 - 1 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Fixed focusYes
Minimum aperture number2
Fixed focal length1.56 mm

Night vision

Night visionYes
Night vision distance20 m
Infra-red wavelength850 nm

Video

Maximum resolution2016 x 2016 pixels
Total megapixels6 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions2560 x 1440, 2560 x 1920, 384 x 288, 1920 x 1440, 256 x 144
Frame rate60 fps
Video streamingYes

Network

Wi-FiNo
BluetoothNo
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1 , HTTP/ 2, SSL/TLS1 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), LinkLocal address (ZeroConf)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory512 MB
RAM capacity1024 MB

Security

Security algorithmsAES, FIPS 140-3

Management features

Cloud-managedYes

Power

Power source typePoE
Power consumption (max)12.2 W
Power consumption (Power over Ethernet (PoE))8.2 W

Operational conditions

Operating temperature (T-T)-40 - 55 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 100%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Height66 mm
Diameter14.9 cm
Weight760 g

Packaging content

Number of cameras1
Mounting brackets includedYes
Drilling template includedYes
