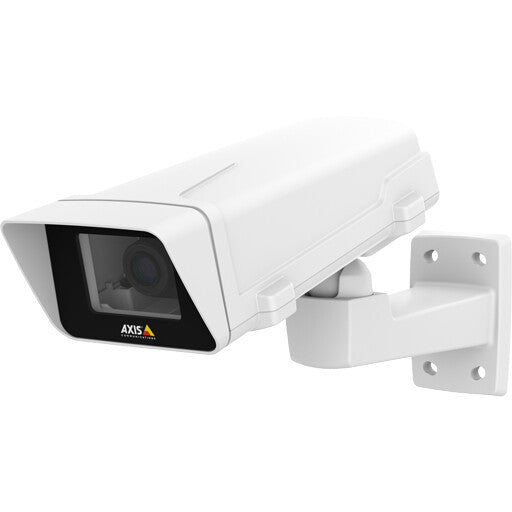

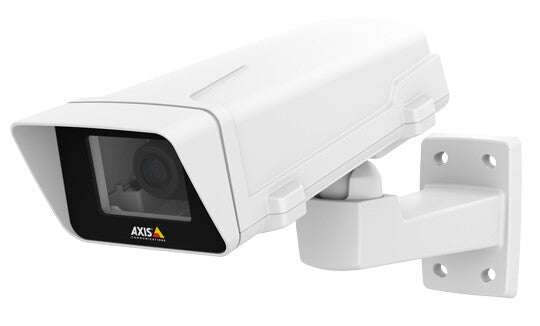

Axis M1125-E Box IP security camera Outdoor 1920 x 1080 pixels Wall
Couldn't load pickup availability
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 1 MP 1920 x 1080 pixels
- Wired Ethernet LAN
- Box Wall
- IP66
- White
- 1.6 kg
AXIS M1125-E offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. It can be used indoors, as well as in an outdoor housing.
Outdoor-ready video surveillance
The outdoor-ready camera provides IP66- and NEMA 4X-rated as well as IK10-rated protection. The camera can withstand a temperatures range of -20 °C to 50°C (-4 °F to 122 °F).
Images optimized for forensic analysis
Supporting WDR - Forensic Capture capability, the video is highly optimized for forensic purposes and provides extreme levels of detail – even in scenes with very complex light conditions. Thanks to the automatic IR-cut filter, AXIS M1125-E can deliver images both day and night. Furthermore, the network camera includes the ability to seamlessly transition between WDR and low-light mode.
More video, less storage
AXIS M1125-E incorporates Axis’ Zipstream technology, which is a radically more efficient H.264 implementation, lowering bandwidth and storage requirements by an average 50% or more for many common 24/7 surveillance use cases.
| Performance | |
|---|---|
| Certification | NEMA 4XIK10 |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| International Protection (IP) code | IP66 |
| Housing material | Polymer |
| Product colour | White |
| Mounting type | Wall |
| Form factor | Box |
| Camera | |
|---|---|
| Camera shutter speed | 0.000006993 - 2 s |
| White balance | Auto |
| Lens viewing angle, vertical | 49° |
| Lens viewing angle, horizontal | 91° |
| Minimum illumination | 0.05 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Focal length range | 3 - 10.5 mm |
| Video | |
|---|---|
| Full HD | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 160 x 90, 1920 x 1080 (HD 1080) |
| Video formats supported | H.264, M-JPEG |
| Total megapixels | 1 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP , Bonjour, UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, T CP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Interface | RJ-45 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Password protection type | User |
| Management features | |
|---|---|
| Web-based management | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 5 W |
| Power consumption (typical) | 3.6 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 100% |
| Operating temperature (T-T) | -20 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.6 kg |
| Height | 137 mm |
| Depth | 448 mm |
| Width | 222 mm |
| Packaging content | |
|---|---|
| Wall mounting kit | Yes |
| Other features | |
|---|---|
| Compliance industry standards | PoE IEEE 802.3af |
