Axis F9114-B Mk II 3840 x 2160 pixels
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £254.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 3840 x 2160 pixels
- Wired Ethernet LAN
- Black, Green
- 185 g

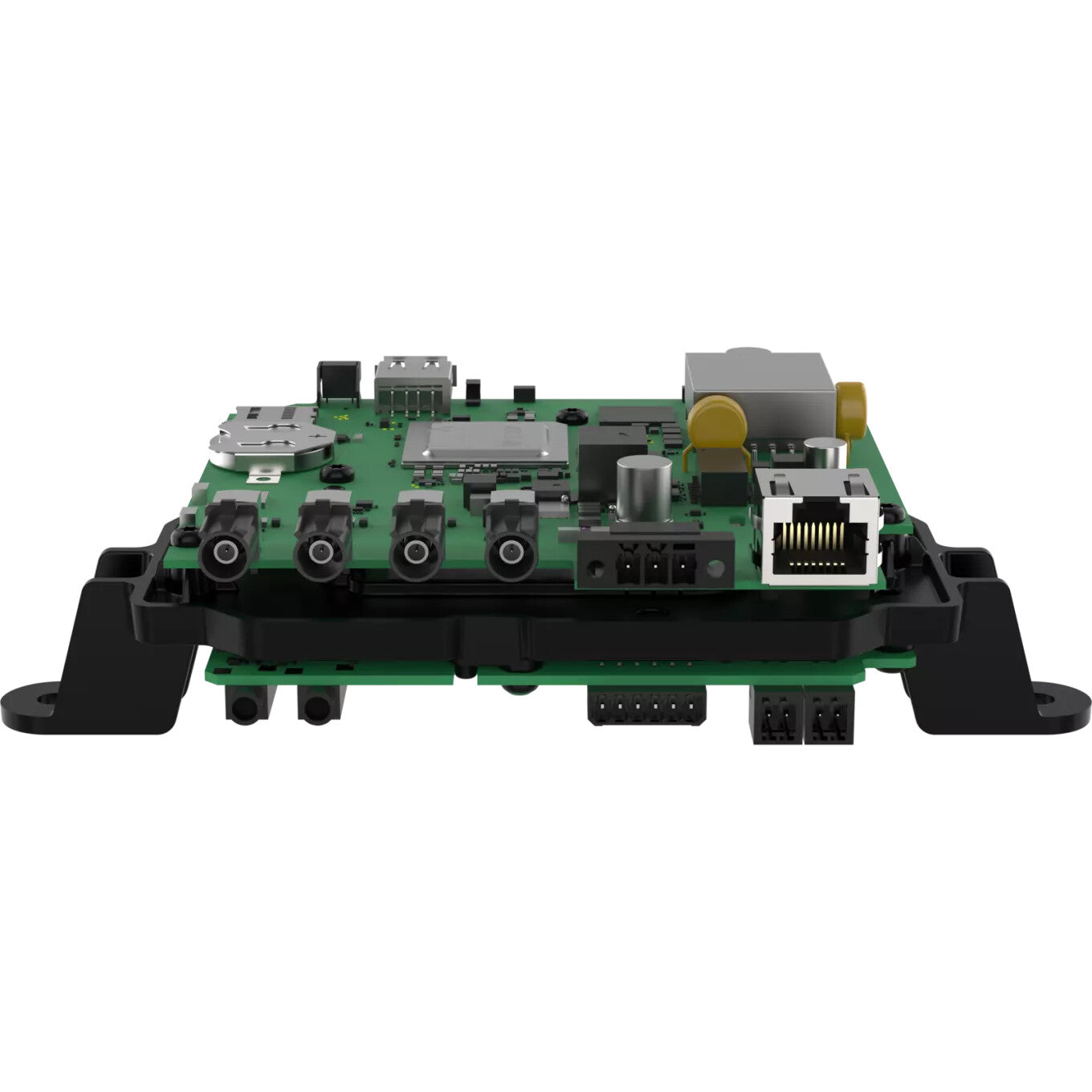

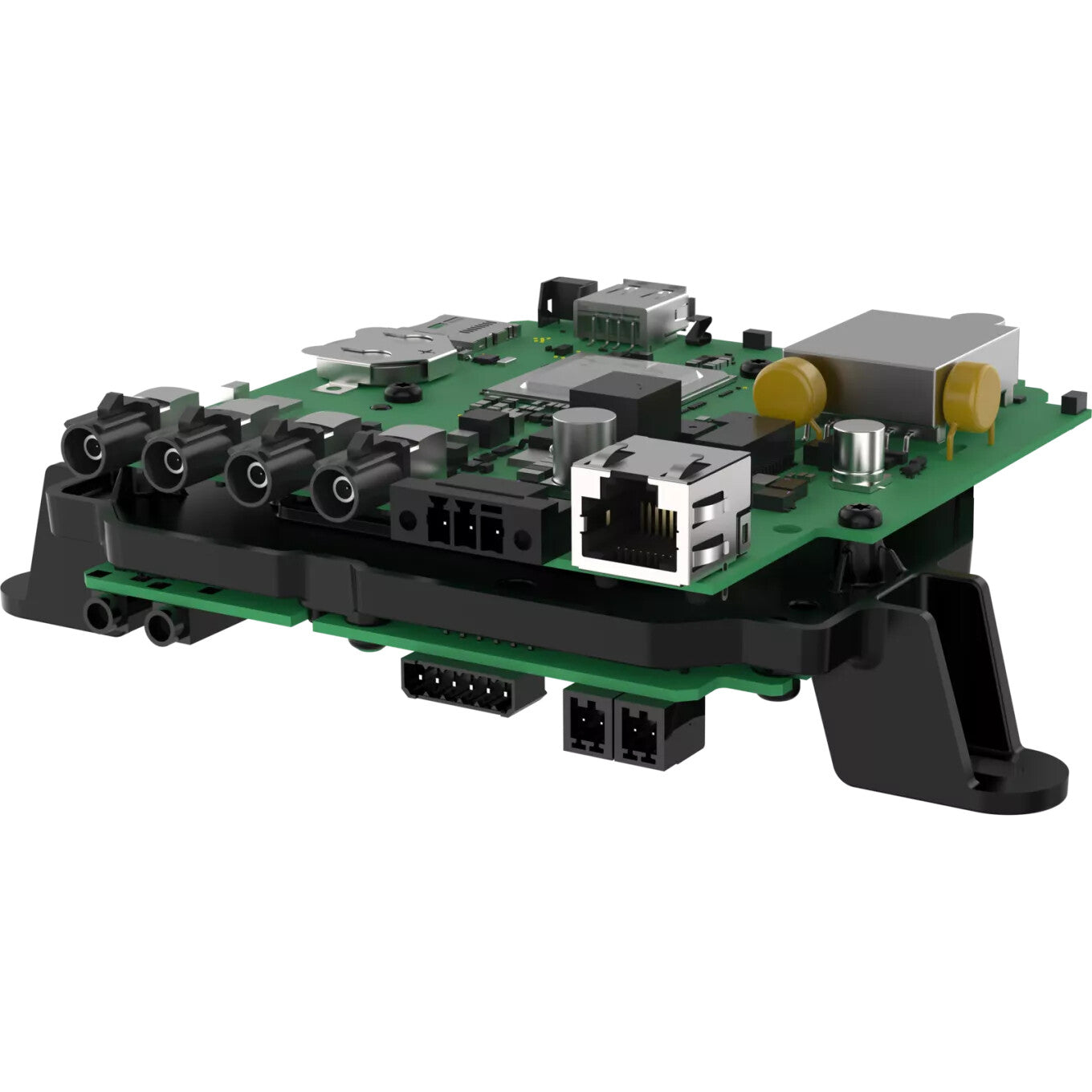

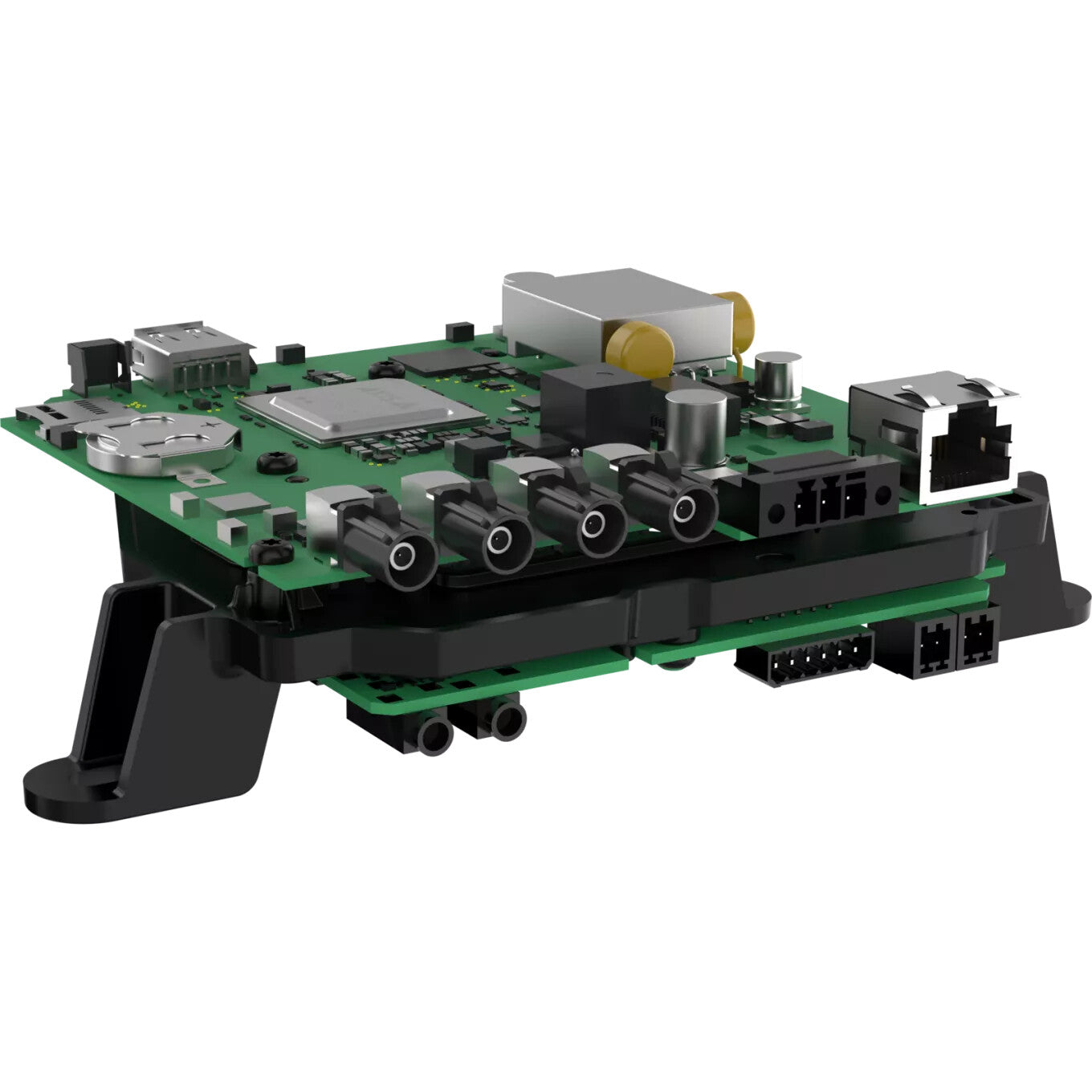

AXIS F9114-B Mk II Main Unit
This AI-powered, 4-channel barebone unit is ideal for integration into UL-certified end products. It offers up to 4K at 12/15 fps and includes two audio-in and four configurable I/O ports. Plus, FAKRA connectors ensure secure installation.
Flexible and cost-efficient
Sold without a casing, this UL-recognized barebone unit is perfect for integration into UL-certified end products. It offers up to four 4K channels at 12/15 fps per channel. With several sensor units to choose from, you can use up to four different sensor units simultaneously. Including two audio-in ports and four configurable I/O ports, it’s possible to connect external microphones and wired accessories. This barebone main unit also ensures lower total cost of ownership compared to conventional camera solutions. For instance, it requires only one video management software (VMS) license instead of four. What’s more, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements.
Gain valuable insights
Featuring a deep learning processing unit (DLPU), this AI-powered barebone unit lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. With AXIS Sensor Metrics Dashboard preinstalled, you can gather information from connected devices including the integrated accelerometer sensor, as well as external Modbus sensors and GPS devices. Furthermore, this barebone main unit includes a built-in USB port that’s prepared for future applications.
Protected from the inside and out
This four-channel barebone unit includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Lever 2 certified, secure cryptographic key storage and operations. Furthermore, FAKRA connectors provide a tight connection with the cable ensuring ruggedized installation.
Specifications
Performance
| Wide Dynamic Range (WDR) | Yes |
|---|---|
| Connectivity technology | Wired |
Design
| LED indicators | Yes |
|---|---|
| Product colour | Black, Green |
Show all 46 specificationsShow fewer specifications
Video
| Flip & mirror | Yes |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Contrast, Brightness, Sharpness |
| Bit rate control | Variable Bit Rate (VBR) |
| Video streaming | Yes |
| Frame rate | 60 fps |
| Supported graphics resolutions | 3840 x 2160, 2560 x 1944, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.265 Pro, AVC, MPEG4, M-JPEG |
| Video formats supported | H.265, H.264, MPEG4, AVC, HEVC, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
Audio
| Audio detection | Yes |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio formats supported | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Audio system | 1-way |
Network
| Streaming method | Multicast |
|---|---|
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN | Yes |
Storage
| RAM capacity | 4096 MB |
|---|---|
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
Ports & interfaces
| Terminal block port | Yes |
|---|---|
| Microphone in | Yes |
| RS-485 ports | 1 |
Security
| Human and vehicle targets classification | Yes |
|---|---|
| Video motion detection | Yes |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection, Abandoned object |
| Security algorithms | EAP-TLS, PEAP, MSCHAPv2, HTTPS, TLS |
| Privacy protection | Yes |
Management features
| Cloud-managed | Yes |
|---|
Power
| Power consumption (max) | 25.5 W |
|---|---|
| Power consumption (typical) | 12.7 W |
| Power source type | PoE, DC |
Operational conditions
| Storage relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Weight | 185 g |
|---|
Sustainability
| Compliance certificates | UL, cUL, CE, KC, VCCI, Federal Communications Commission (FCC) |
|---|
Packaging content
| Manual | Yes |
|---|
