£2,064.99

Stock Available: 0
  • Ultra compact mini dome
  • Outstanding 4K resolution
  • 107° horizontal field of view
  • Compatible with cables up to 30 m
  • Repaintable cover

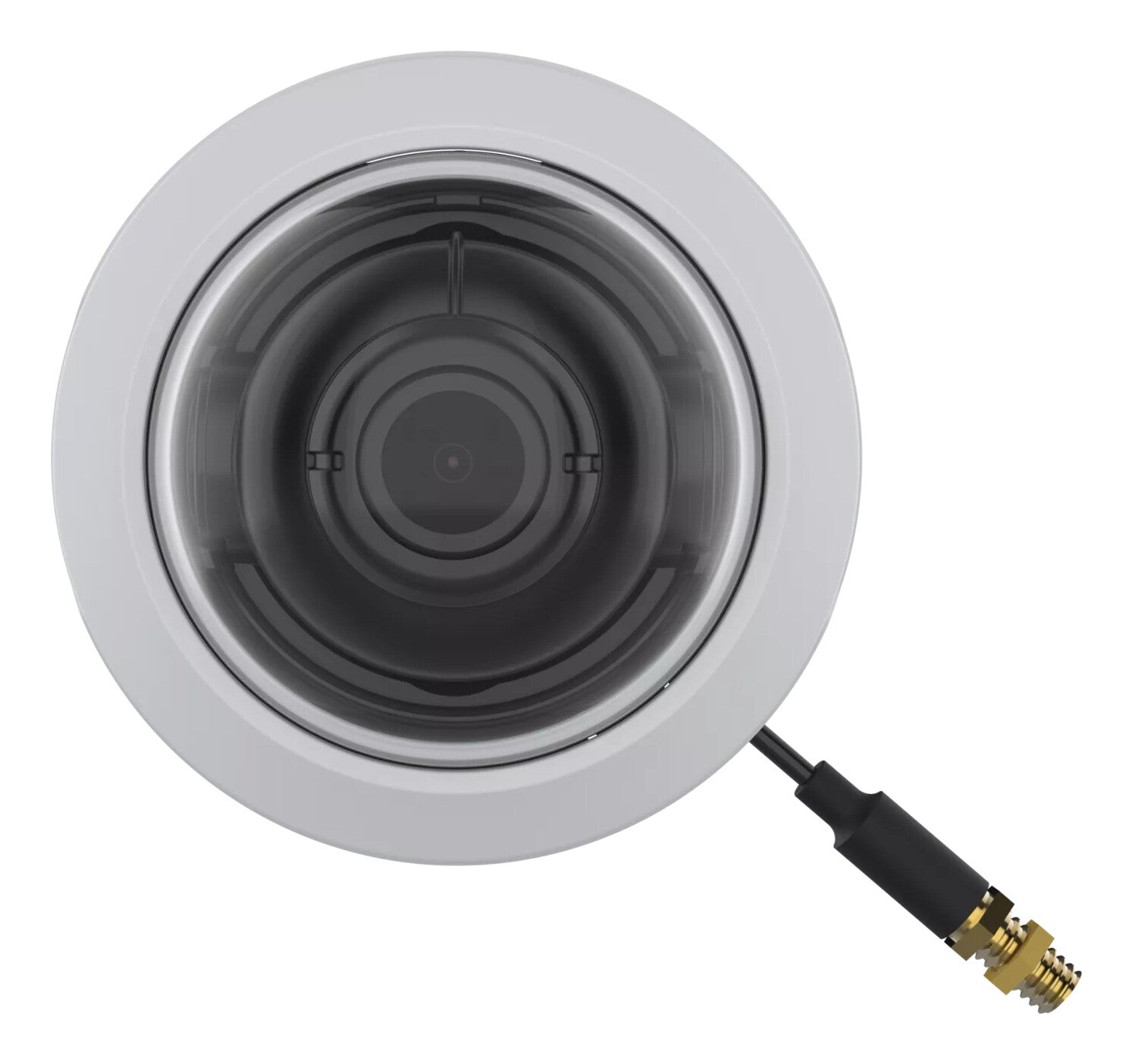

AXIS F4108 Dome Sensor

Ideal for discreet indoor surveillance, this ultra-compact dome sensor offers outstanding 4K image quality, wide-angle 110° horizontal field of view, and good performance even in challenging light.

High image quality

Part of AXIS F Modular Camera Series, this ultra discreet dome sensor offers excellent 4K image quality even in challenging light conditions. With a 110° horizontal field of view, it’s perfect for wide-area coverage and delivers a high level of detail needed for forensic analysis. When used with AXIS F91 main units, it also supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene.

Discreet sensor unit

Ultra-compact in design, this dome sensor blends discreetly into any indoor environment—ideal for retail, banking, and similar applications. Plus, the cover can be repainted in any color to blend in with the surroundings. Based on a divided network camera concept, AXIS F4108 is designed for use with AXIS F Modular Camera Series and connects to the main unit using a detachable cable. So, the two parts can be placed separately from each other, up to 30 m (98 ft) apart. And because it's so small, you can place this sensor unit practically anywhere. This ensures discreet and flexible installation for unobtrusive surveillance.

Flexible installation

AXIS F4108 offers easy and flexible installation. With various sensor units available, it can be combined with up to three other sensor units within AXIS F Modular Camera Series for great flexibility. And thanks to the cable options, you can spread out the sensors from the main unit for large area coverage. When maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed. Furthermore, AXIS F4108 offers an operating temperature range from -20°C to 50°C (-4°F to 122°F). This allows installations in a wide range of indoor environments without worrying about temperature-related issues.




Features
Certification CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC/EN 60529 IP42, IEC/EN 62262 IK08
IK code IK08
Housing material Plastic, Polycarbonate (PC)
Product colour Black, White
Brand compatibility Axis
Placement supported Indoor
Type Sensor unit
Image sensor
Viewing angle, vertical 54°
Viewing angle, horizontal 107°
Resolution 3840 x 2160 pixels
F-number (relative aperture) 1.8
Focal length range 4.3 mm
Sensor type CMOS
Image sensor size 1/2.9"
Ergonomics
Number of connectors 1
Power
Power consumption 0.9 mA
Weight & dimensions
Weight 90 g
Width 73.9 mm
Depth 73.9 mm
Height 47 mm
Packaging data
Quantity per pack 8 pc(s)
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 85%
Operating temperature (T-T) -20 - 50 °C
Technical details
Doesn't contain BFR, CFR, PVC
Compliance certificates CE, Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UL, VCCI, WEEE, cUL
