Axis 5801-141 security camera accessory
£145.99
Couldn't load pickup availability
- Fits in standard installation boxes; Support for 12 V and 24 V door strikes; Tamper controlled

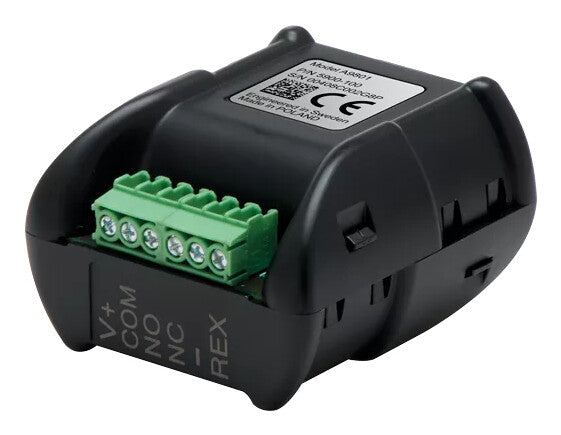

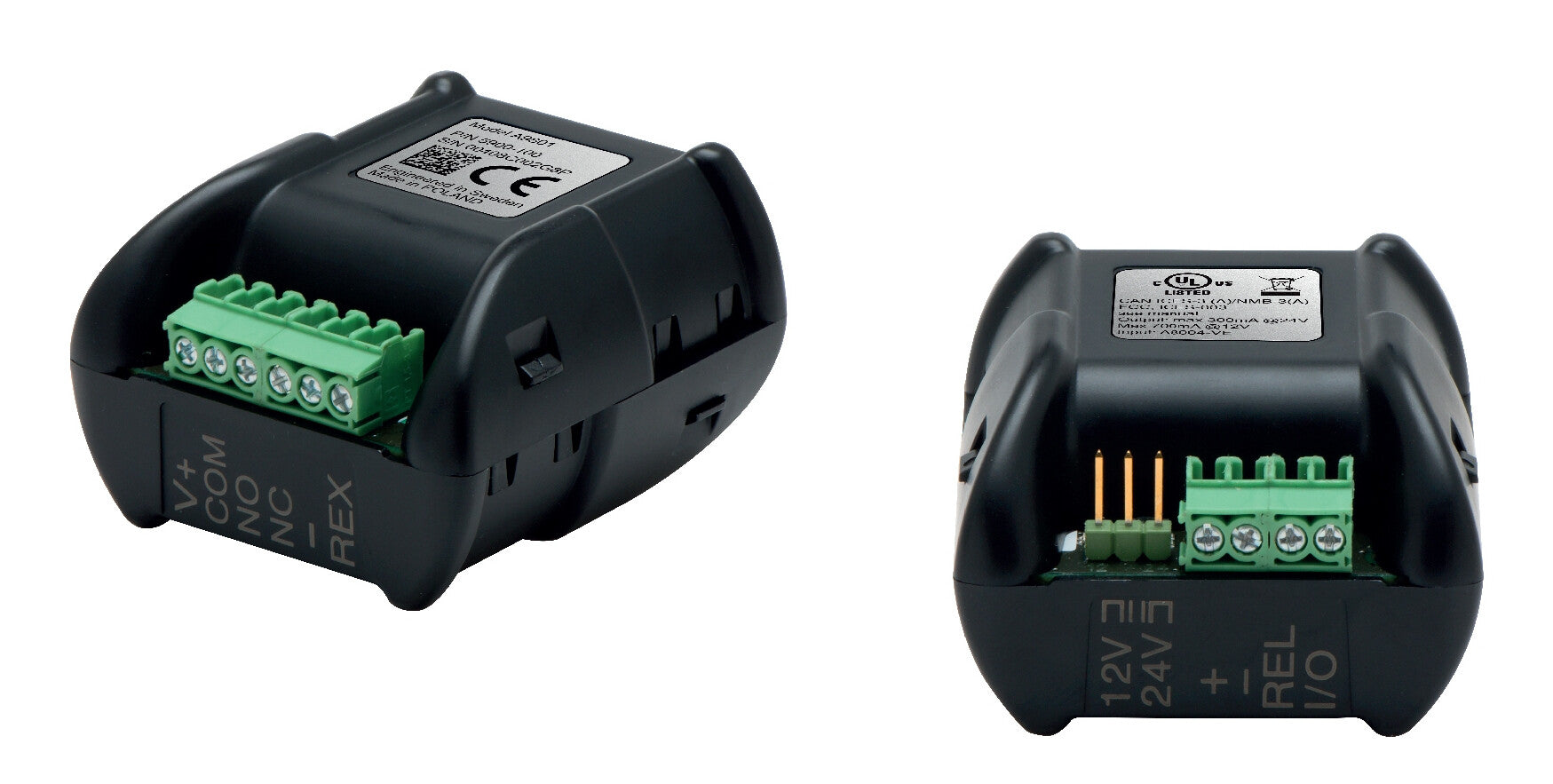

AXIS A9801 Security Relay improves security for doors controlled by Axis network video door stations. The small relay, easily placed in most standard installation boxes, is installed on the secure side of the door. If anyone attempts to dismount or vandalize the door station, AXIS A9801 cuts the connection to the door strike and the door remains securely locked. Normal function can be restored using the relay’s reset button. AXIS A9801 also acts as a power transformer and can double the 12 V output from a door station, thus enabling control of 24 V locks without any extra wiring or power supply
| Features | |
|---|---|
| Certification | EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, C-tick AS/NZS CISPR 22 Class A, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, IEC/EN/UL 60950-1 |
| Housing material | Plastic |
| Product colour | Black |
| Placement supported | Indoor |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Weight & dimensions | |
|---|---|
| Weight | 100 g |
| Width | 48 mm |
| Depth | 45 mm |
| Height | 30 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 100% |
| Operating temperature (T-T) | -20 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299020 |
