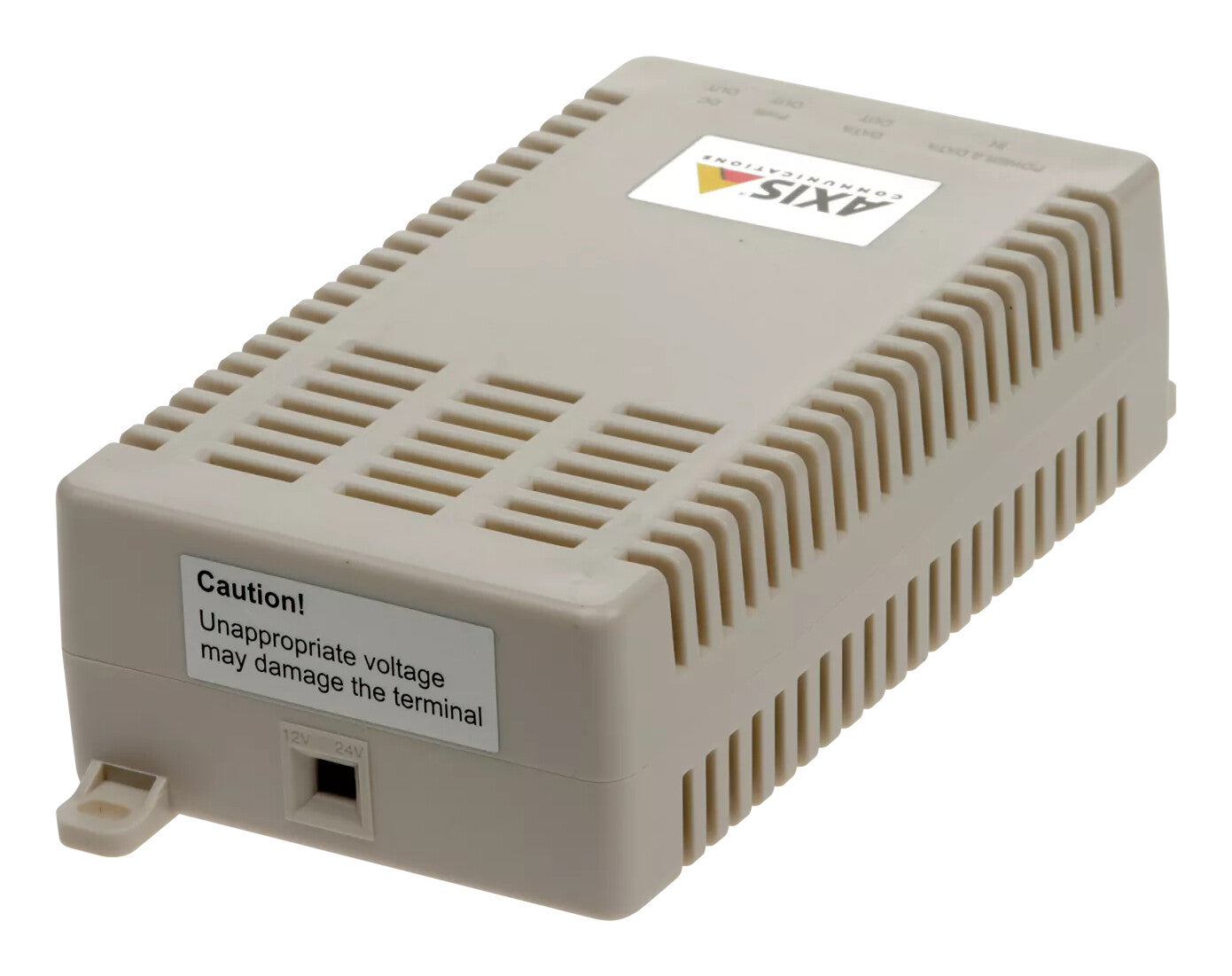

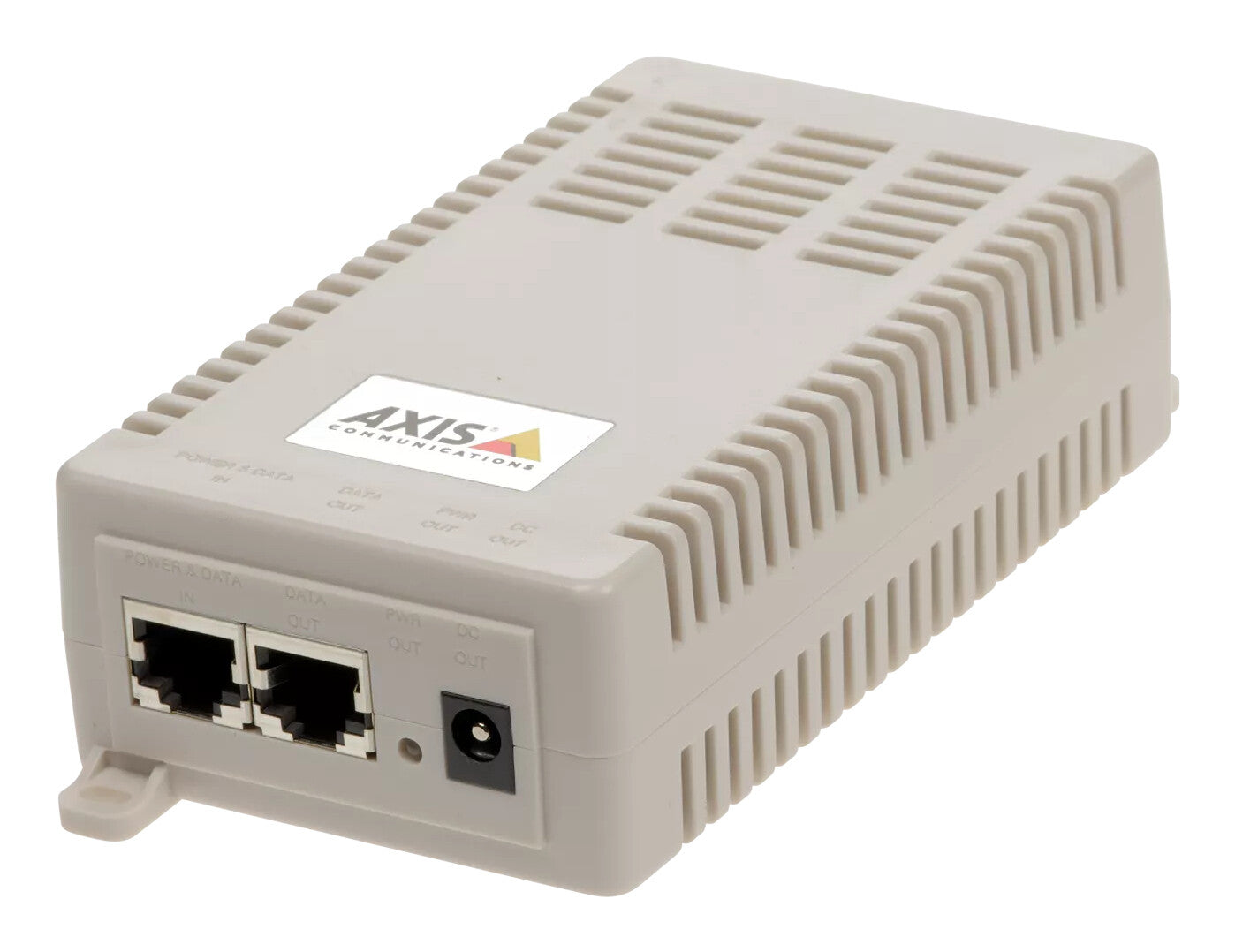

Axis 5500-001 network splitter
£142.99
Couldn't load pickup availability
- For Axis network products and accessories; High power; Plug-and-play; Reduced installation costs
A splitter is used to split the power and data in an Ethernet cable into two separate cables, which then can be connected to a network device that has no built-in support for Power over Ethernet (PoE). AXIS T8127 60 W Splitter 12/24 V DC enables Axis' network products and accessories, such as Axis' illuminators, media converters etc.. to receive 12 or 24 V DC with up to 4.5A. The splitter can be powered from any Axis midspan or PoE switch. AXIS T8127 offers an easy, fast and cost-effective solution compared with adding a power supply to your system.
| Features | |
|---|---|
| Plug and Play | Yes |
| Ports & interfaces | |
|---|---|
| Connector gender | Female |
| Ethernet LAN (RJ-45) ports | 2 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 285 g |
| Height | 38 mm |
| Depth | 130 mm |
| Width | 73 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Power | |
|---|---|
| Output current (12V) | 4.5 A |
| Output power | 54 W |
| DC output voltage | 12V |
