Axis 0921-001 security camera Bullet IP security camera Outdoor 640 x 480 pixels Ceiling/wall
£8,917.99
Couldn't load pickup availability
- Axis Zipstream technology; Electronic Image Stabilization; High performance for video analytics; Reliable detection and fast verification; VGA resolution

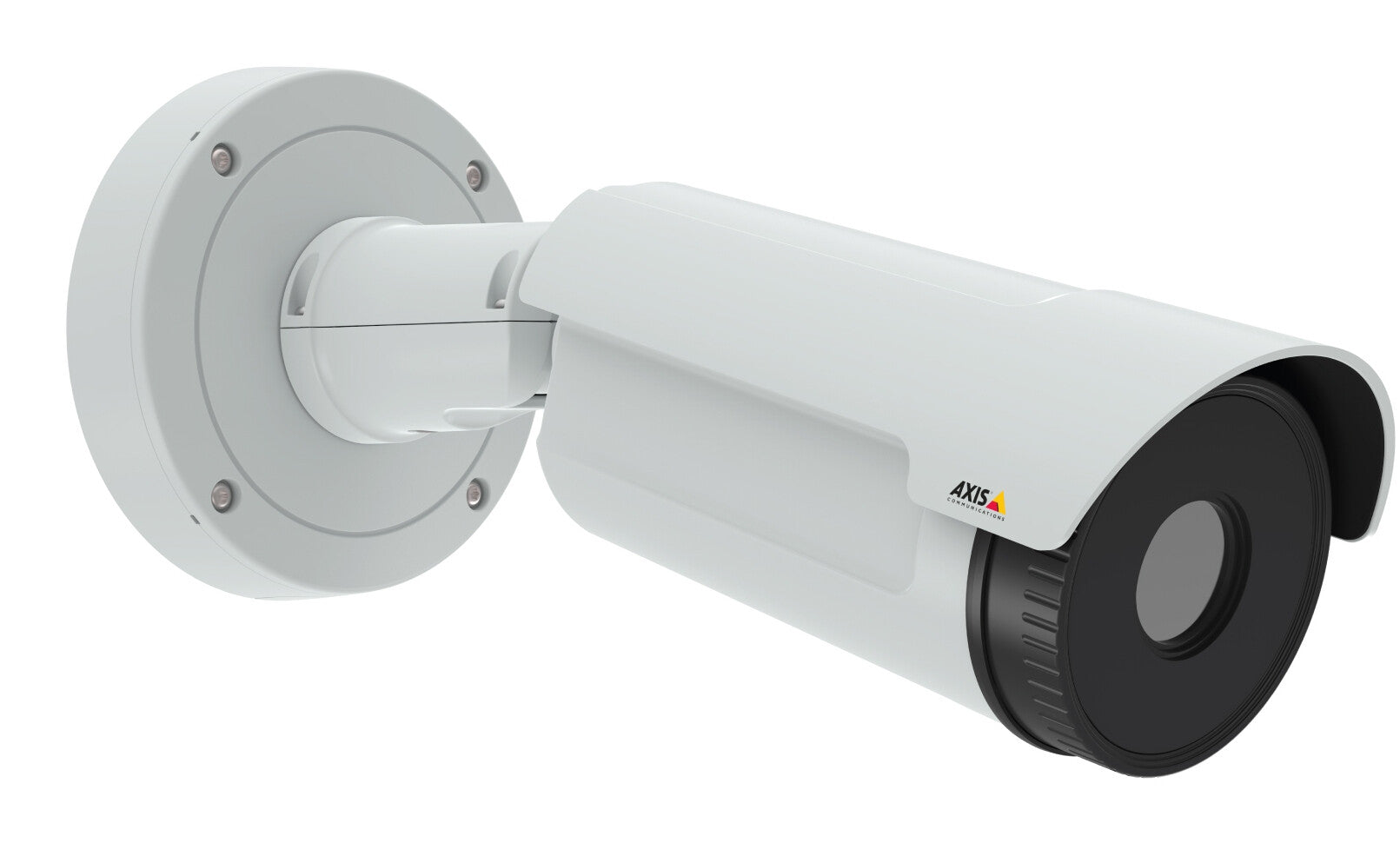

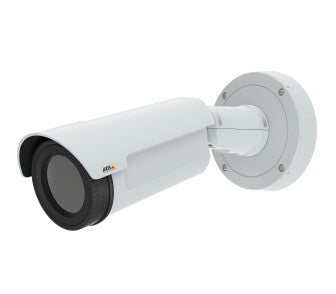

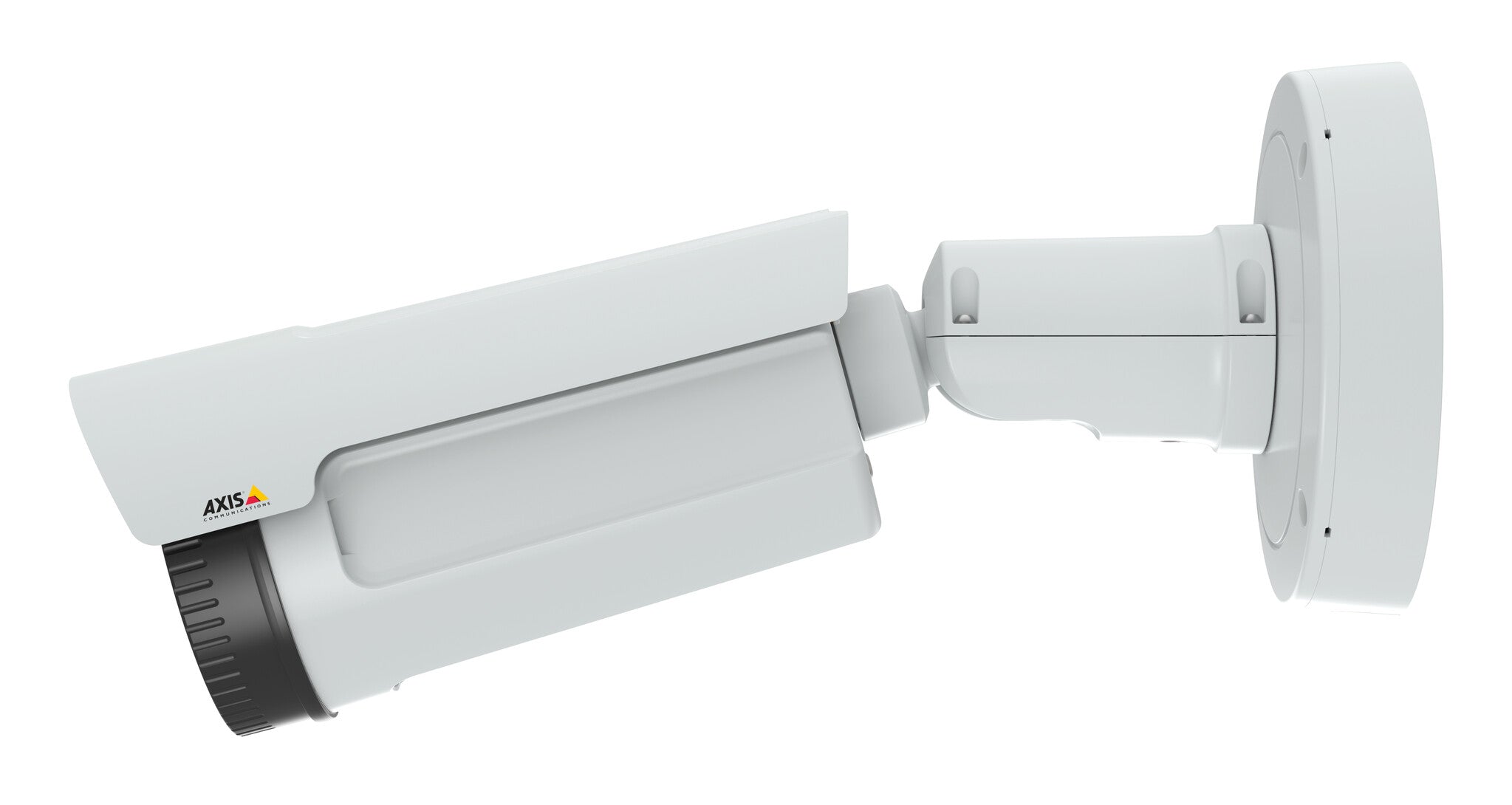

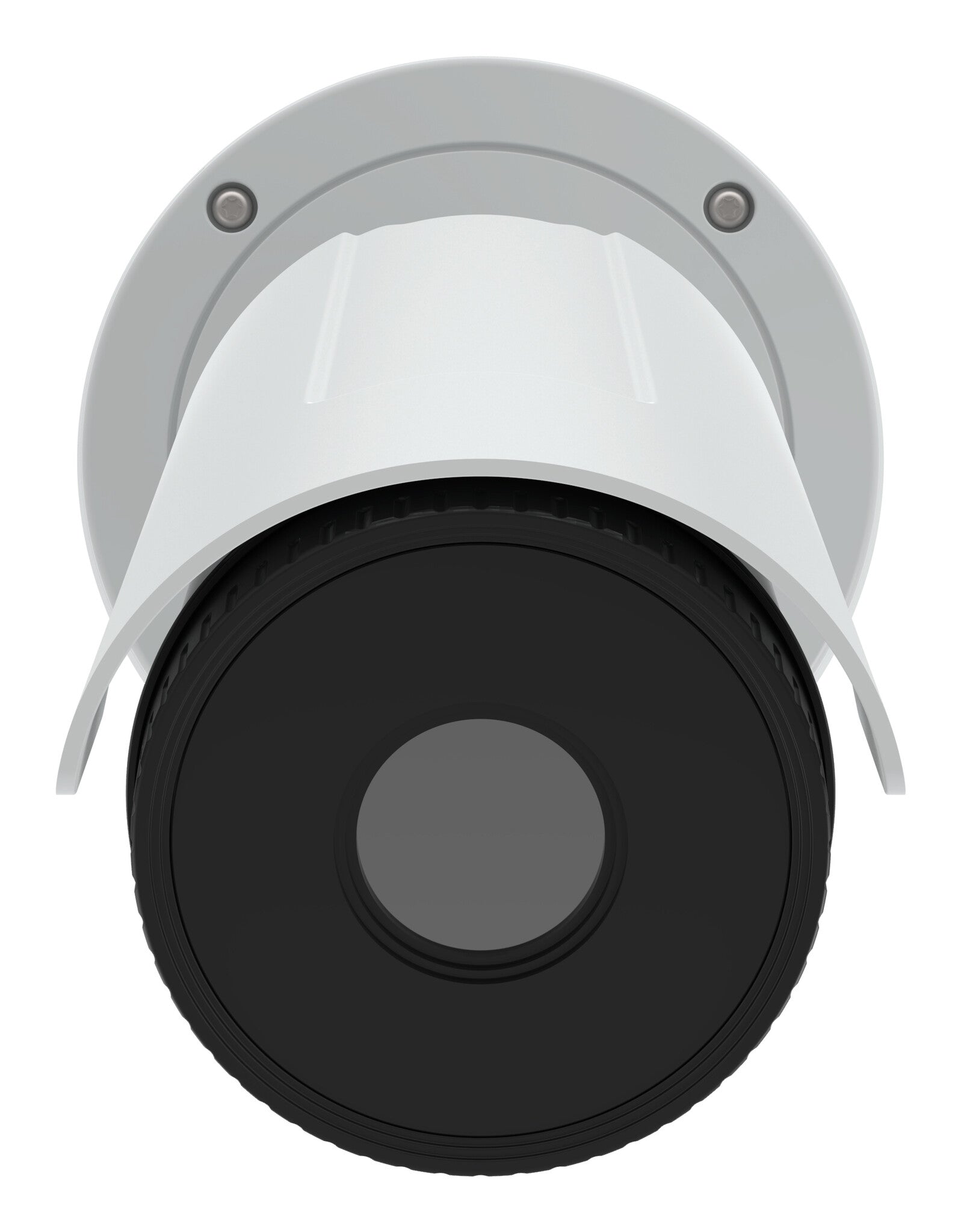

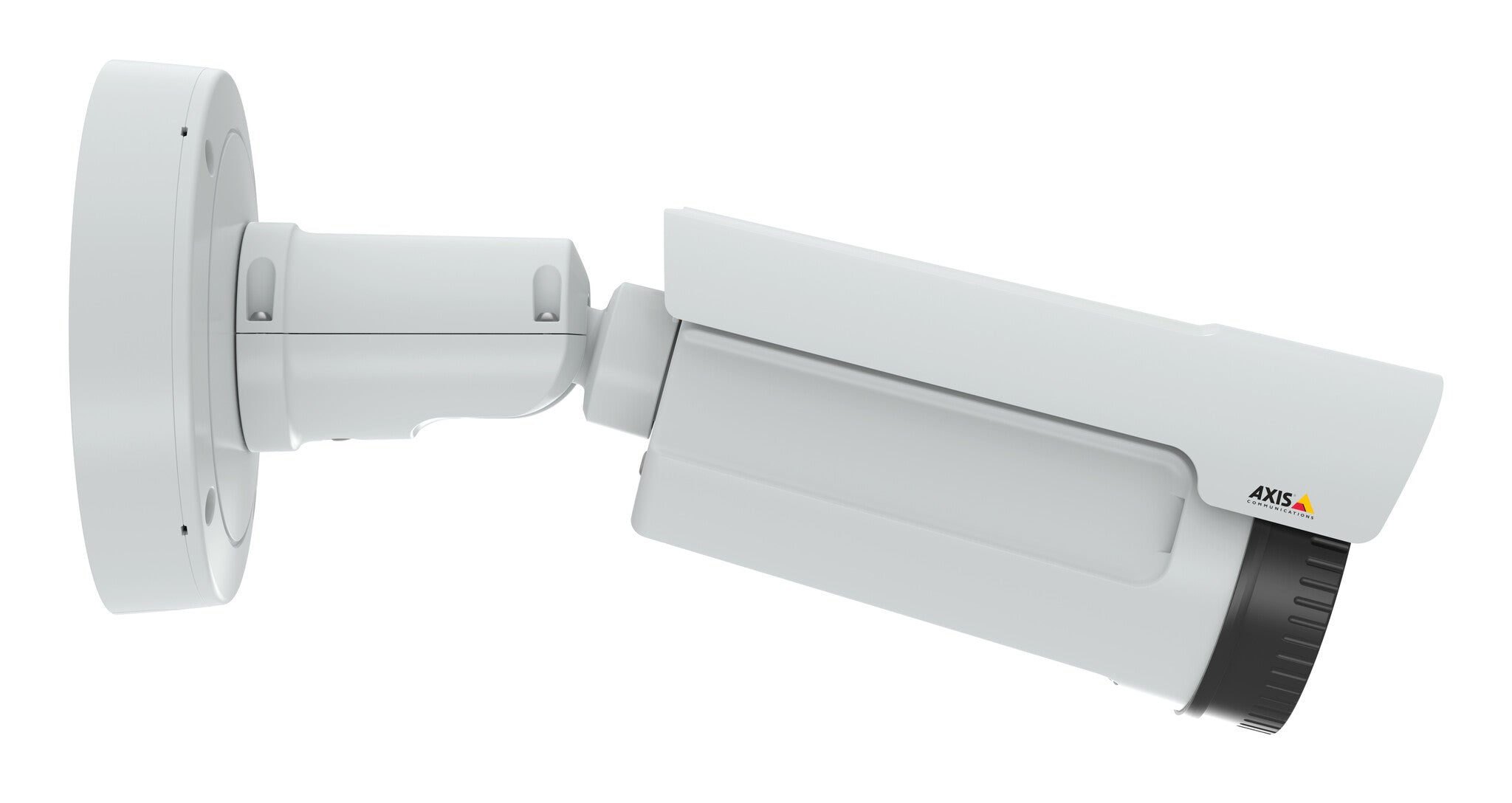

AXIS Q1942-E is an affordable outdoor, bullet style, thermal camera with a built-in window heater for harsh weather conditions. A resolution of 640x480 and a range of lens alternatives (10 mm, 19 mm, 35 mm and 60 mm) make it possible to optimize detection performance to meet most requirements. It supports Electronic Image Stabilization that keeps the video smooth during vibrations, and Axis Zipstream that lowers bandwidth and storage requirements. Thanks to its powerful processor, AXIS Q1942-E has high capacity for running video analytics via AXIS Camera Application Platform (ACAP) and can use a range of third party applications.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
| Certification | EN 55022 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR22 Class A KCC KN32 Class A, KN35 IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 EN 50581, IEC 60529 IP66/IP67, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6 Class 4M4, IEC 60068-2-27, IEC 60068-2-52, IEC 60721-3-4 Class 4K3 |
| Design | |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| Image sensor | |
|---|---|
| Sensor type | Microbolometer |
| Lens system | |
|---|---|
| Fixed focal length | 60 mm |
| Night vision | |
|---|---|
| Night vision | No |
| Video | |
|---|---|
| Maximum resolution | 640 x 480 pixels |
| Video compression formats | H.264, M-JPEG |
| Frame rate | 8.3 fps |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Full HD | No |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Audio | |
|---|---|
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Audio formats supported | ADPCM, LC-AAC, PCM |
| Voice codecs | G.711, G.726 |
| Audio detection | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Cabling technology | 10/100Base-T(X) |
| Quality of Service (QoS) support | Yes |
| Storage | |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| USB port | No |
| Terminal block port | Yes |
| Interface | RJ-45 |
| Security | |
|---|---|
| Temperature sensor | Yes |
| Password protection type | User |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Motion sensor | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Video motion detection | Yes |
| Power | |
|---|---|
| Power source type | PoE |
| AC input voltage | 20-24 V |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
|---|---|
| Diameter | 14.6 cm |
| Length | 344 mm |
| Weight | 2.2 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Bundled software | VAPIX AXIS Camera Application Platform AVHS AXIS CameraCompanion, AXIS CameraStation |
| Technical details | |
|---|---|
| Power source | PoE, DC, AC |
