£7,395.99

Stock Available: 0
  • VGA thermal and 4K visual in one camera
  • Thermal visual image fusion
  • Flexible mounting options
  • Four lens alternatives
  • Built-in cybersecurity with Axis Edge Vault

Ideal for perimeter surveillance and border control, this top-of-the-line camera offers reliable high-resolution thermal detection and visual verification. AXIS Object Analytics is preinstalled, and it’s compatible with AXIS Perimeter Defender.

Gain complete situational awareness with this all-in-one device

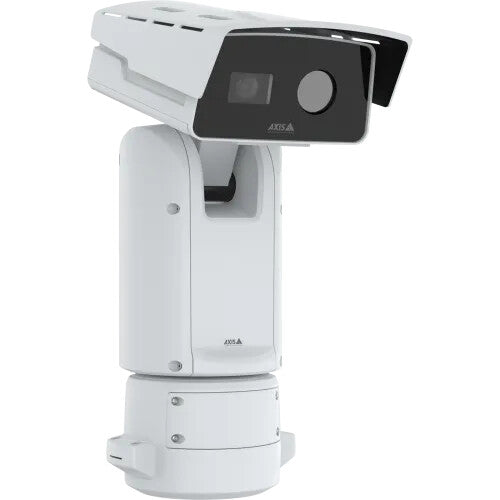

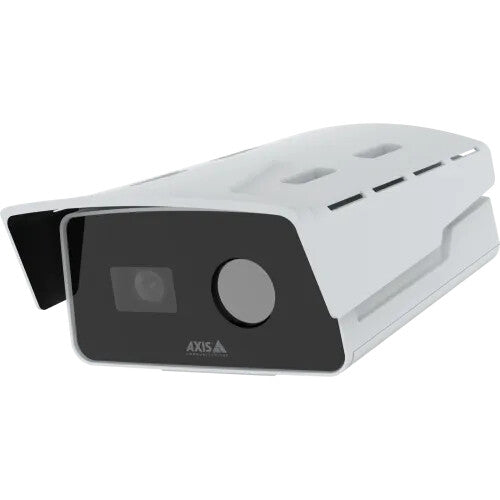

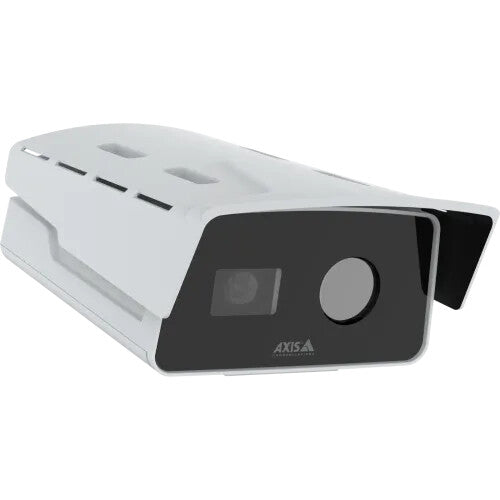

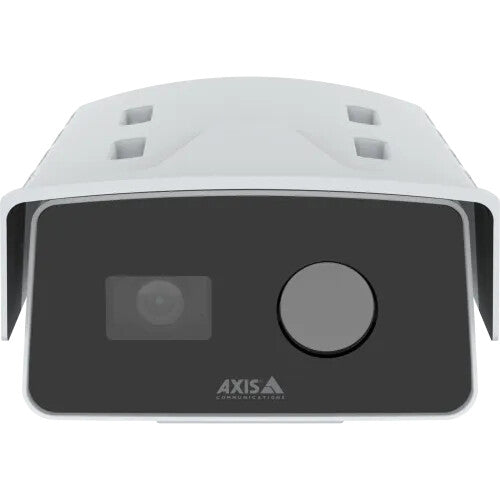

AXIS Q2802-E combines a high-resolution thermal sensor and a 4K visual sensor. It uses thermal imaging technology to deliver outstanding thermal detection and verification. With NETD <20mK, it offers extremely high thermal sensitivity with a low false alarm rate. Four lens options are available for wider and narrower fields of view. This bispectral camera can detect objects using the thermal video stream and confirm detections with the visual image. Plus, thermal visual image fusion seamlessly fuses the thermal and visual images into one clear image for enhanced scene understanding, faster response times, and smarter decision-making.

Designed for secure, flexible, and cost-efficient installations

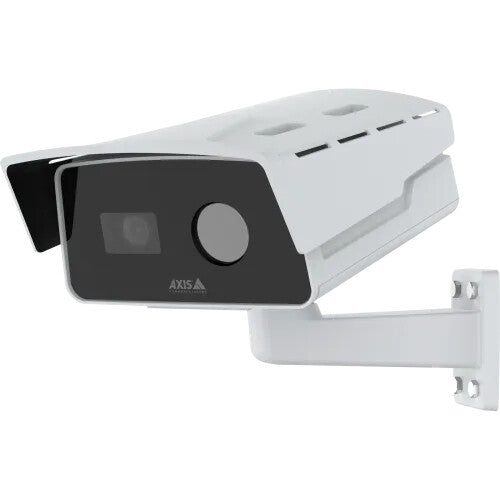

Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. This robust IP66-, IP67-, and NEMA 4X-rated camera features an IK10 vandal-resistant housing and can withstand hurricane-force winds of more than 65 m/s (145 mph). With two cameras in one, it offers easy installation with a low total cost of ownership. It also offers flexible mounting options, including installation on a positioning unit or a wall mount. Furthermore, this bispectral camera processes data on the edge, eliminating the need for expensive analytic servers.

Unlock AI-powered analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. With AXIS Object Analytics preinstalled on the visual video stream, you can detect, classify, track, and count humans, vehicles, and types of vehicles. Or you can use AXIS Perimeter Defender (sold separately) on the thermal video stream for reliable long-range detection and classification of humans and vehicles intruding on your property.

Heat-based detection regardless of visibility
Find out why thermal cameras are reliable detection and verification tools.

Performance
Type IP security camera
Placement supported Outdoor
Connectivity technology Wired
Thermal module Yes
Alarm input/output Yes
Design
Form factor Bullet
Mounting type Ceiling/Wall/Pole
Product colour White
International Protection (IP) code IP66, IP67
IK code IK10
Camera
Minimum illumination 0.01 lx
Vertical field of view (thermal module) 24°
Horizontal field of view (thermal module) 31°
Lens viewing angle, horizontal 45.5°
Lens viewing angle, vertical 25.8°
Camera shutter speed 1/66500 - 2 s
Image sensor
Sensor type CMOS
Optical sensor size 25.4 / 1.2 mm (1 / 1.2")
Sensor type (thermal module) Noise equivalent temperature difference (NETD)
Effective sensor resolution (thermal module) 640 x 480 pixels
Lens system
Maximum aperture number 2.9
Aperture number (thermal module) 1
Fixed focal length (thermal module) 19 mm
Fixed focal length 13.8 mm
Night vision
Night vision Yes
Video
Maximum resolution 3840 x 2160 pixels
Total megapixels 8 MP
Frame rate 30 fps
Video intelligence analytic Yes
Noise reduction Yes
Noise reduction technology 2D noise reduction, 3D noise reduction
Audio
Signal-to-Noise Ratio (SNR) 55 dB
Audio detection Yes
Network
Ethernet LAN Yes
Wi-Fi No
Bluetooth No
Storage
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), MicroSDXC, MicroSDHC
Flash memory 8000 MB
Internal memory 4000 MB
Security
Intelligent Video Surveillance (IVS) system features Vehicle detection, Human detection, Line crossing detection, Moving object, Face detection, Region entrance detection
Active tampering alarm Yes
Privacy protection Yes
Video motion detection Yes
Power
Power source type PoE, DC
Operational conditions
Operating temperature (T-T) -40 - 60 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 100%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Weight 2.95 kg
Packaging content
Number of cameras 1
