Axis · MPN: 02484-001
£609.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £203.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • AXIS Object Analytics; Built-in microphone for audio recording; Compact and flexible design; Lightfinder and Forensic WDR; Remote zoom and focus with i-CS

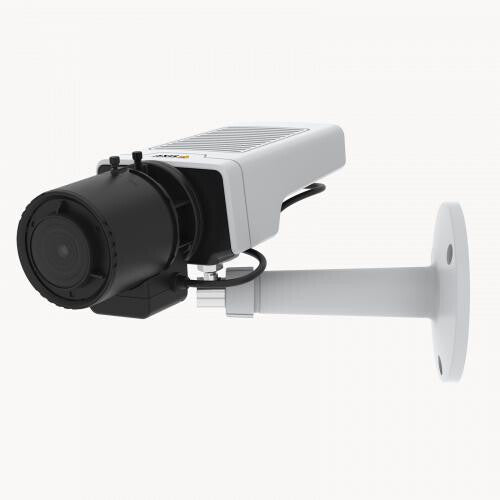

AXIS M1137 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.

Specifications

Performance

Day/night modeYes
Wide Dynamic Range (WDR)Yes
Connectivity technologyWired
Placement supportedIndoor & outdoor

Design

Product colourBlack, White
Mounting typeWall
Form factorBox
Show all 39 specificationsShow fewer specifications

Camera

Camera shutter speed1/33500 - 1/5 s
Lens viewing angle, vertical82°
Lens viewing angle, horizontal112°
Minimum illumination0.17 lx

Image sensor

Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Sensor typeCMOS

Lens system

Focal length range2.8 - 13 mm

Night vision

Night visionYes

Video

Frame rate30 fps
Supported graphics resolutions160 x 120
Video compression formatsMPEG4
Video formats supportedH.264, H.265
Total megapixels5 MP
Maximum resolution2592 x 1944 pixels

Network

Networking standardsIEEE 802.3af, IEEE 802.3at

Storage

Flash memory512 MB

Power

DC output voltage10, 12, 15, 16, 24, 28
Power consumption (Power over Ethernet (PoE))4.5 W
Power consumption (max)6.6 W
Power consumption (typical)4.4 W
Power source typeDC, PoE

Operational conditions

Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)10 - 85%
Storage temperature (T-T)-40 - 65 °C
Operating temperature (T-T)-20 - 50 °C

Weight & dimensions

Height (with stand)179 mm
Depth (with stand)179 mm
Width (with stand)70 mm
Height59 mm
Depth179 mm
Width70 mm

Packaging content

Number of cameras1

Videos

AXIS M1137 Mk II Box Camera
