Axis 02242-001 body camera Wired CMOS 1920 x 1080 pixels Black USB 0.1 lx
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £65.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Extremely discreet; Flexible magnet mount; For use with AXIS W100; Lightweight; Same optical performance as AXIS W100

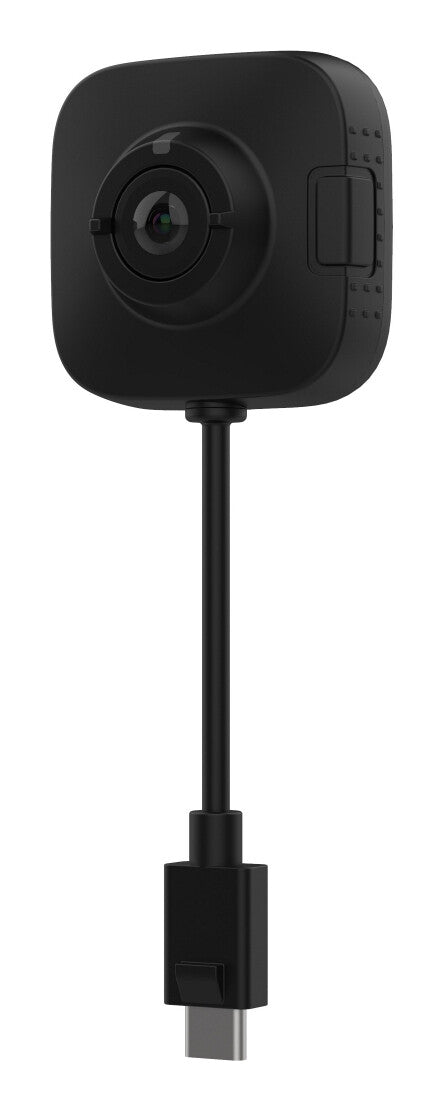

AXIS TW1201 Body Worn Mini Cube Sensor is designed to be extremely discreet and to offer flexible positioning for recording. Its small size, low weight and an easy-to-move magnet mount make it suitable for wearing on lightweight material like the lapel of a blazer, or even a t-shirt. AXIS TW1201 provides the same optical performance as AXIS W100, delivering sharp images even in challenging conditions. It comes in both white and black.
Specifications
Camera
| Maximum frame rate | 30 fps |
|---|---|
| Wide Dynamic Range (WDR) | Yes |
| Fixed focal length | 2.1 mm |
| Camera shutter speed | 1/32000 - 1/25 s |
| Viewing angle, horizontal | 141.4° |
| Vertical field of view | 82° |
| Minimum illumination | 0.1 lx |
| Maximum resolution | 1920 x 1080 pixels |
| Sensor type | CMOS |
Design
| International Protection (IP) code | IP54 |
|---|---|
| Mounting type | Magnet |
| Housing material | Plastic |
| Housing colour | Black |
Show all 27 specificationsShow fewer specifications
Ports & interfaces
| Connectivity technology | Wired |
|---|
Features
| Certification | EN 55032 Class B, EN 55035, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 55032 Class B, EN 55035, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC/EN 60529 IP54CISPR 32 Class B |
|---|---|
| Cable length | 0.8 m |
| Video compression formats | AVC, H.264, MPEG4 |
Power
| Power source type | USB |
|---|
Weight & dimensions
| Weight | 40 g |
|---|---|
| Height | 45 mm |
| Depth | 23 mm |
| Width | 45 mm |
Operational conditions
| Storage relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -20 - 55 °C |
Sustainability
| Doesn't contain | Chlorofluorocarbon (CFC), PVC/BFR |
|---|
