Axis · MPN: 02196-021
£3,605.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,201.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • 1 configurable input/output port; AXIS Face Detector preinstalled; Compatible with all AXIS FA sensor units; HDMI output for public viewing monitors; HDTV 1080p at full frame rate

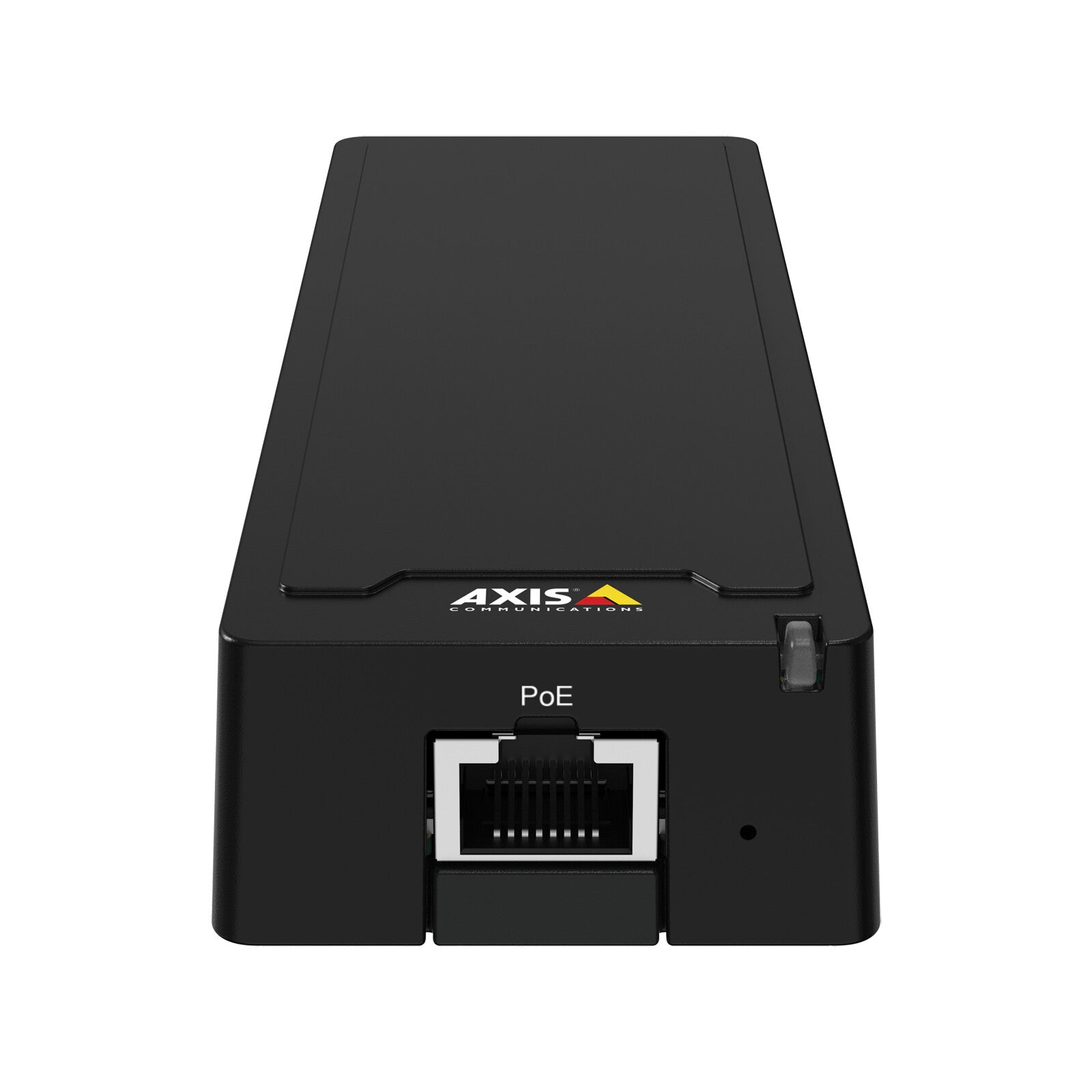

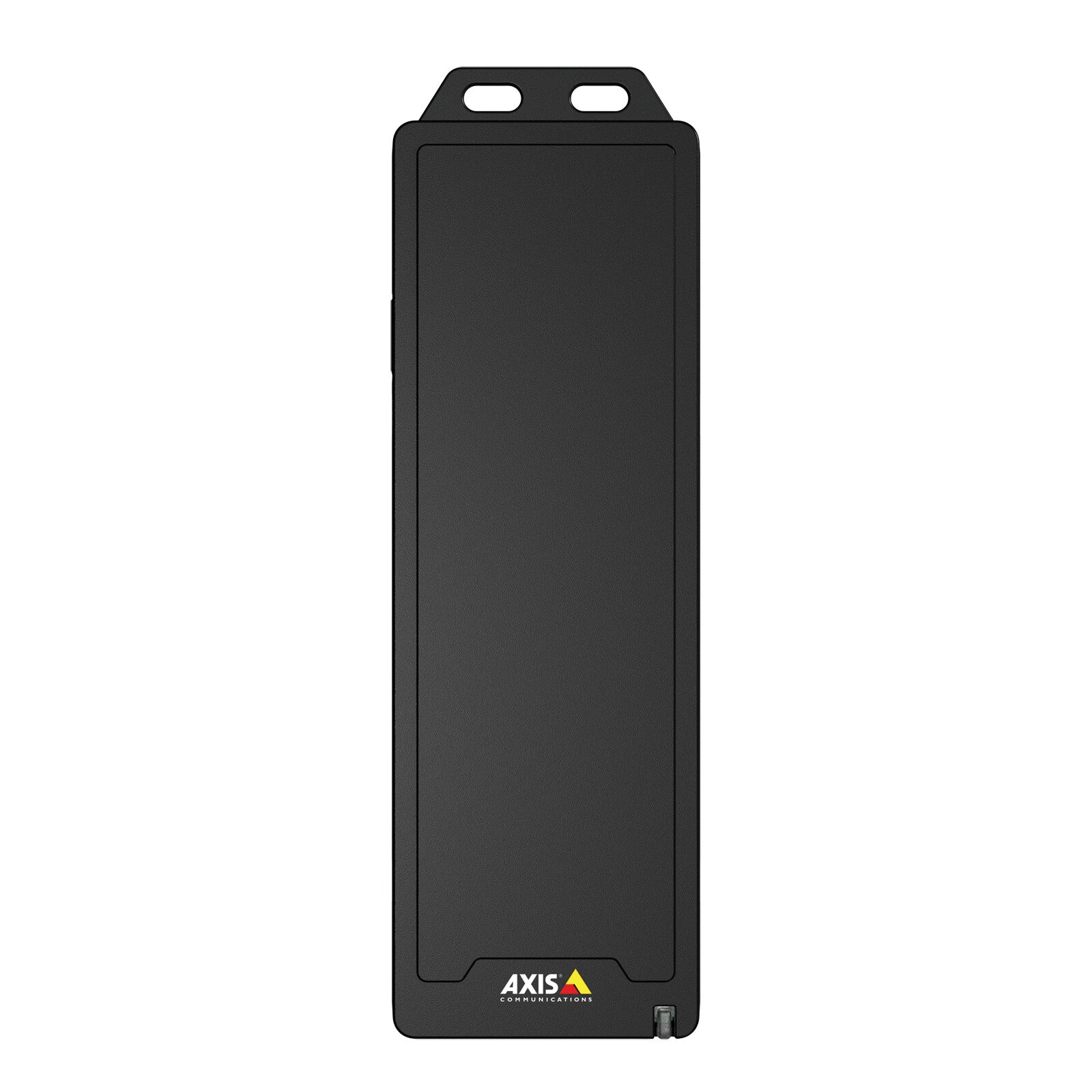

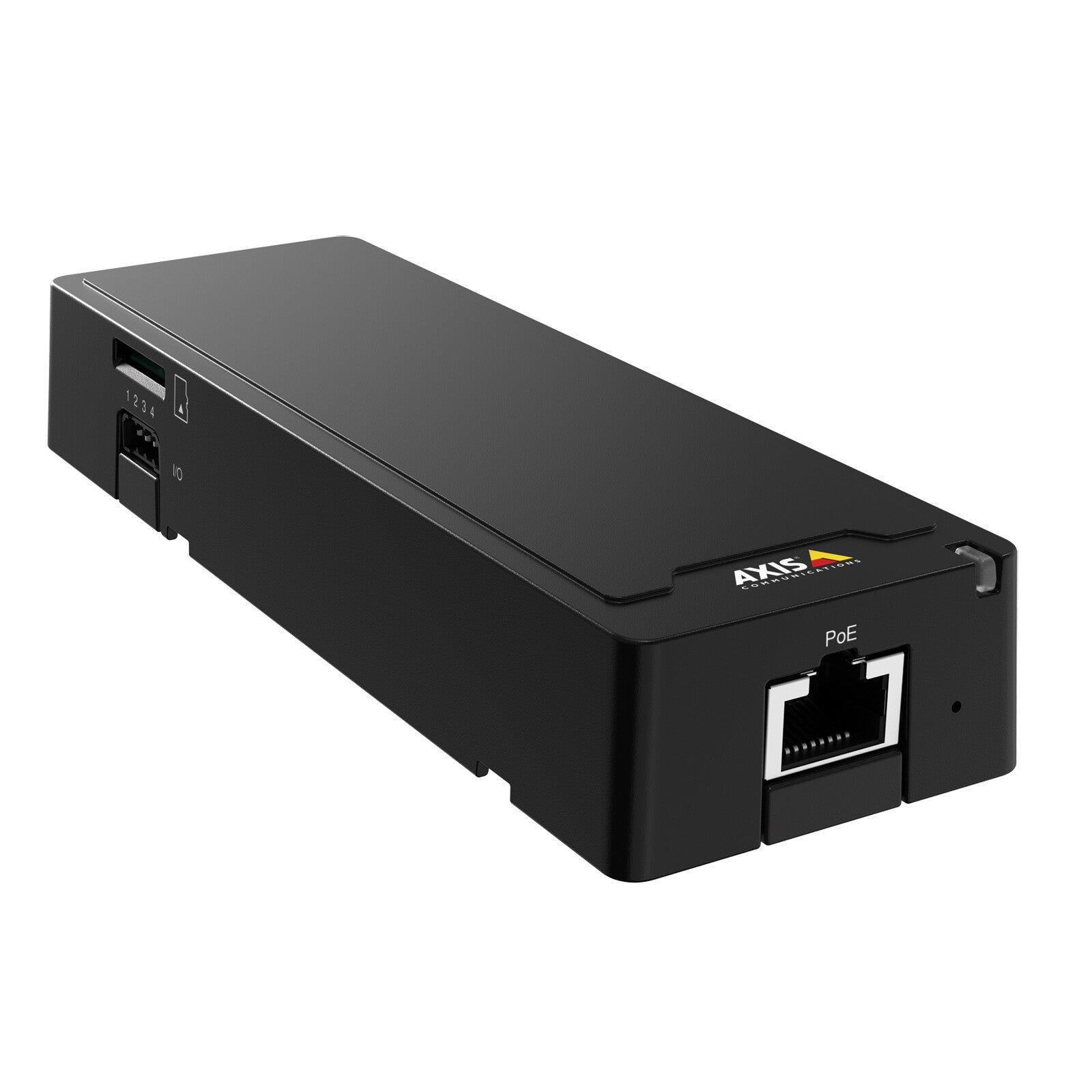

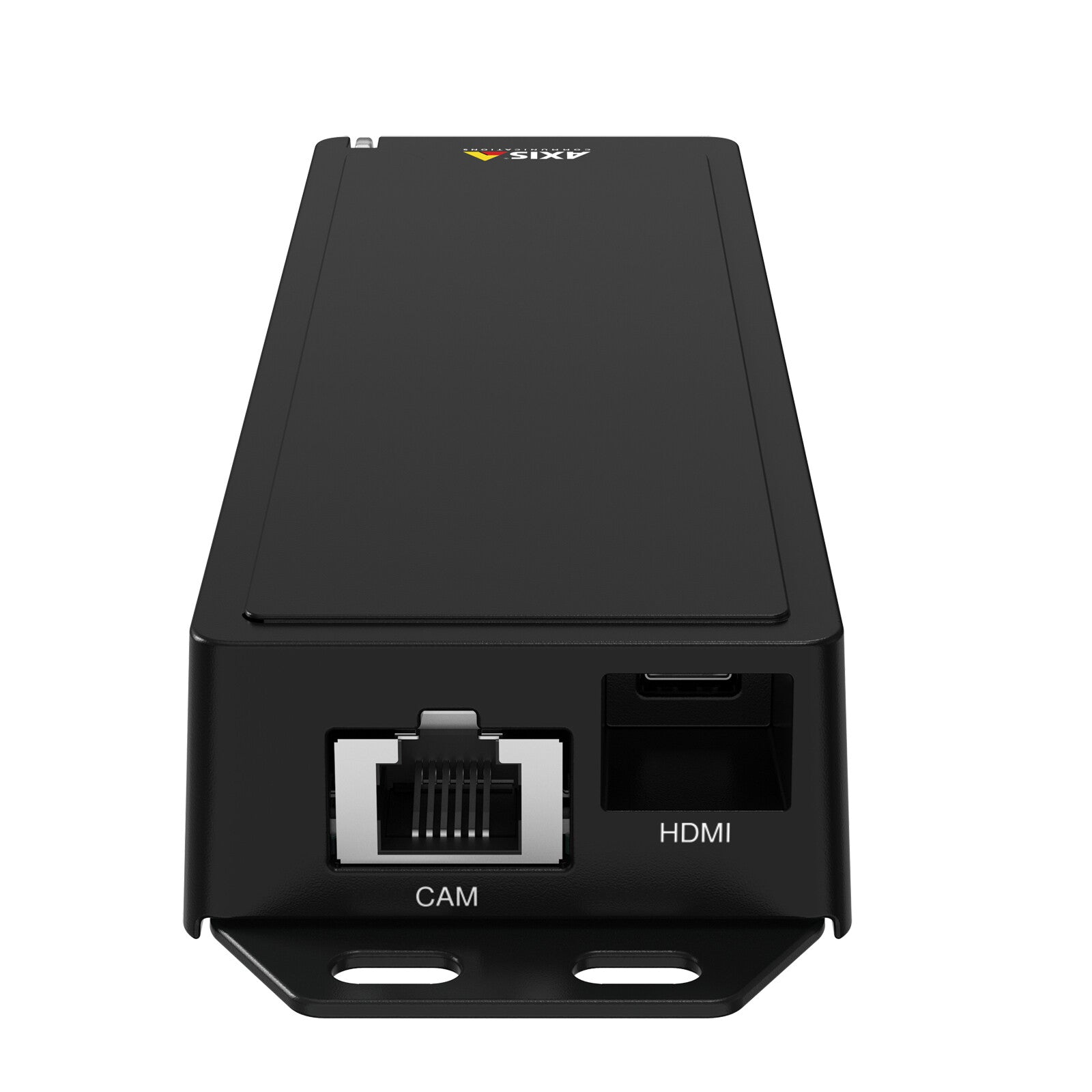

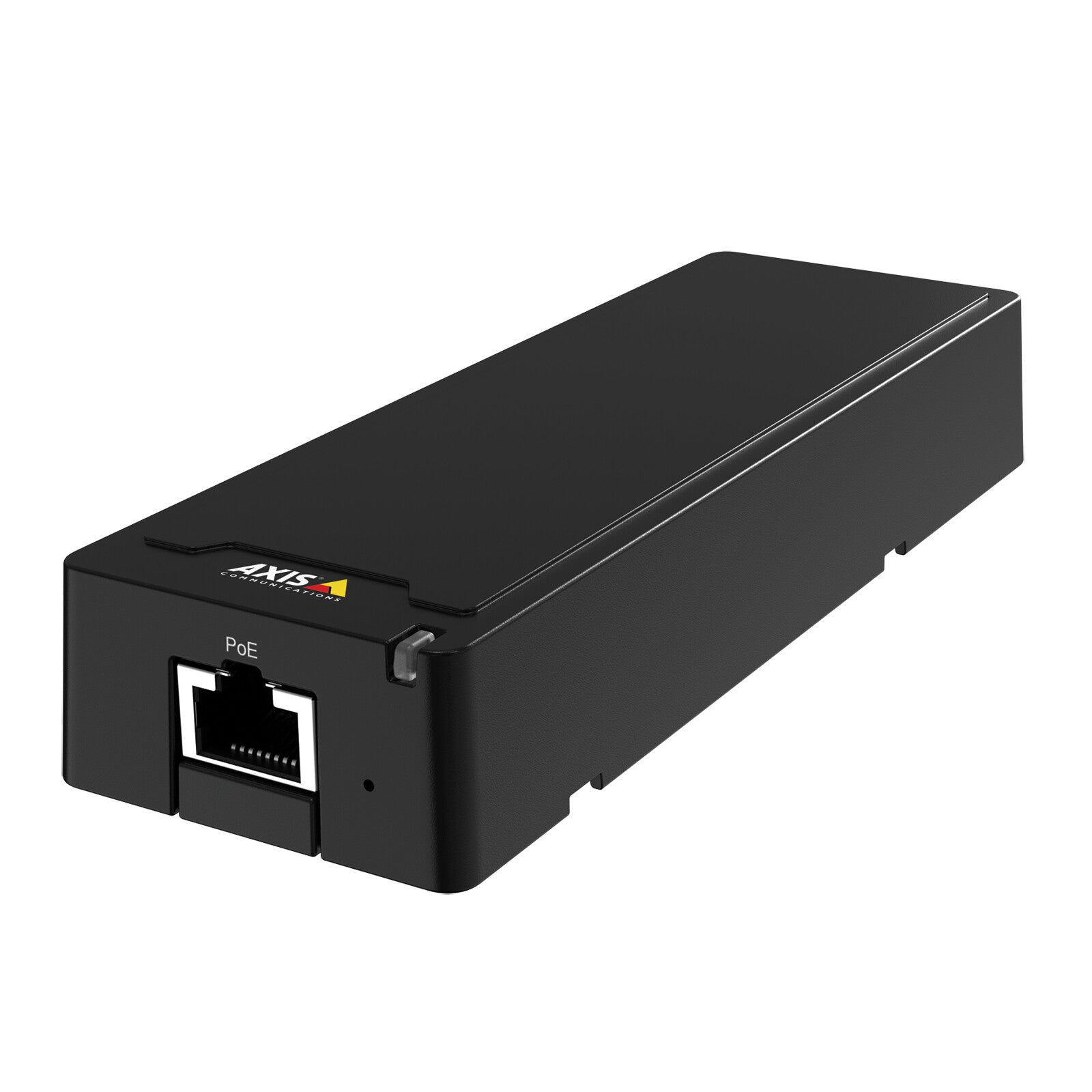

This modular single-channel main unit can connect to one sensor unit offering highly discreet surveillance. Featuring an HDMI output, it’s possible to display live video on a public viewing monitor. And, AXIS Face Detector highlights faces within bounding boxes to let would-be shoplifters know they’re being monitored and proactively reduce shoplifting. Compatible with all AXIS FA sensor units including IR sensor units, you’ll enjoy excellent video quality even in complete darkness. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.

Specifications

Features

CertificationEN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2,FCC 15 B / A, ICES-3(A)/NMB-3(A),KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A,VCCI AIEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1IEC/EN 60529 IP4X, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,IEC 60068-2-78NIST SP500-267
LED indicatorsYes
Maximum number of cameras supported1
Housing materialAluminium
Product colourBlack
Brand compatibilityAxis
Placement supportedIndoor

Image sensor

Resolution1920 x 1080 pixels
Show all 26 specificationsShow fewer specifications

Ports & interfaces

Wi-FiNo
Ethernet LANYes
Ethernet LAN data rates10,100 Mbit/s
Number of inputs1 inputs
Number of outputs1 outputs
Connectivity technologyWired

Power

Power consumption (typical)5.2 W
Output voltage12 V

Weight & dimensions

Weight195 g
Width24 mm
Depth152 mm
Height49 mm

Packaging content

Quick installation guideYes

Operational conditions

Storage relative humidity (H-H)10 - 85%
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 85%
Operating temperature (T-T)-20 - 50 °C

Technical details

Doesn't containBFR, PVC
