Axis 02172-002 security camera accessory Midspan
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £29.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- CompatibilityM5054, M5055, M5065, M5525-E, P5414-E, P5415-E, P5654-E, P5655-E, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LE, Q1659, Q1700-LE, Q1785-LE, Q1786-LE, Q1798-LE, P1280-E, P1290-E, Q1941-E, Q1941-E PT, Q1942-E, Q1942-E PT, Q2901-E, Q2901-E PT, M3015, M3016, M3037-PVE, M3057-PLVE, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3904-R Mk II, P3905-R Mk II, P3925-R, P3935-LR, P9106-V, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q9216-SLV, A1001, A1601, T90C20 IR-LED, T90D20, T90D25, M7104, P7304, Q7411, Q7424-R Mk II, A9161, A9188, A9188-VE, A8207-VE Mk II, I8016-LVE, F34, F41, F44 T91G61 T91H61, D2110-VE, C1310-E, C1410
- Weight145 g
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 10/100/1000 Mbps; 100 to 240 V AC; IEEE 802.3af and IEEE 802.3at; Plug-and-play

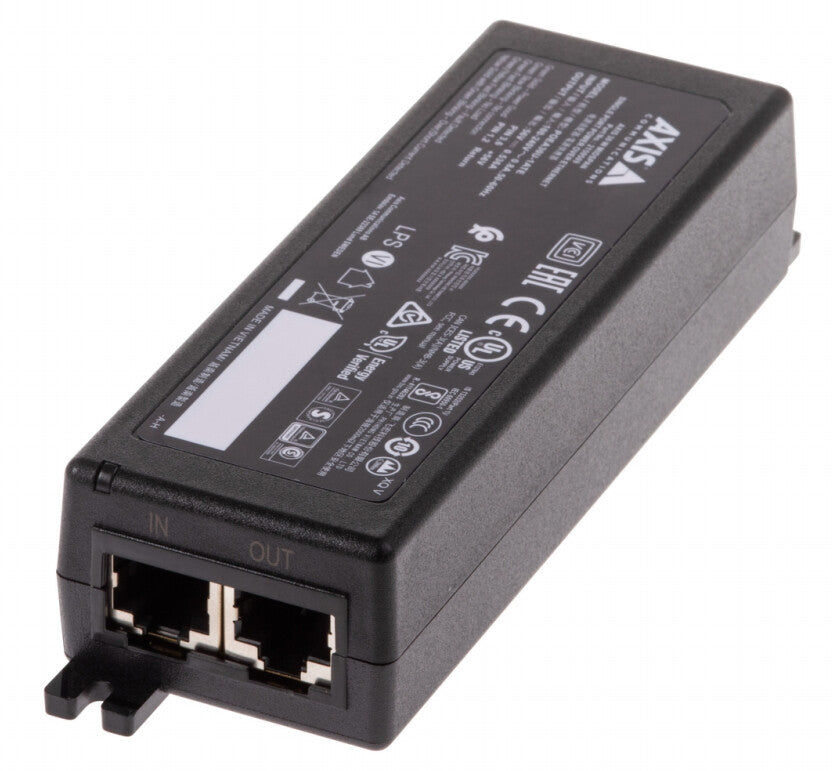

AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.
Specifications
Features
| Certification | IS 13252,UL 60950-1, UL 62368-1, CCC, EMC EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
|---|---|
| LED indicators | Yes |
| Housing material | Plastic |
| Product colour | Black |
| Compatibility | M5054, M5055, M5065, M5525-E, P5414-E, P5415-E, P5654-E, P5655-E, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LE, Q1659, Q1700-LE, Q1785-LE, Q1786-LE, Q1798-LE, P1280-E, P1290-E, Q1941-E, Q1941-E PT, Q1942-E, Q1942-E PT, Q2901-E, Q2901-E PT, M3015, M3016, M3037-PVE, M3057-PLVE, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3904-R Mk II, P3905-R Mk II, P3925-R, P3935-LR, P9106-V, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q9216-SLV, A1001, A1601, T90C20 IR-LED, T90D20, T90D25, M7104, P7304, Q7411, Q7424-R Mk II, A9161, A9188, A9188-VE, A8207-VE Mk II, I8016-LVE, F34, F41, F44 T91G61 T91H61, D2110-VE, C1310-E, C1410 |
| Brand compatibility | Axis |
| Type | Midspan |
Ports & interfaces
| Ethernet LAN | Yes |
|---|
Show all 20 specificationsShow fewer specifications
Power
| Output voltage | 56 V |
|---|---|
| Input frequency | 47-63 Hz |
| Input voltage | 100-240 V |
| Rated power | 30 W |
Weight & dimensions
| Weight | 145 g |
|---|---|
| Width | 46 mm |
| Depth | 140.1 mm |
| Height | 30 mm |
Packaging content
| Quick installation guide | Yes |
|---|
Operational conditions
| Operating relative humidity (H-H) | -40 - 75% |
|---|---|
| Operating temperature (T-T) | -20 - 40 °C |
Technical details
| Doesn't contain | Halogen, PVC |
|---|
