Axis · MPN: 01991-031
£650.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £216.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Internal memory2048 MB
  • Weight190 g
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • 1080p at 30 fps on 4-channels; Compact barebone main unit; Multiple sensor and cable options; Support for 2-way audio and I/O; UL recognized component

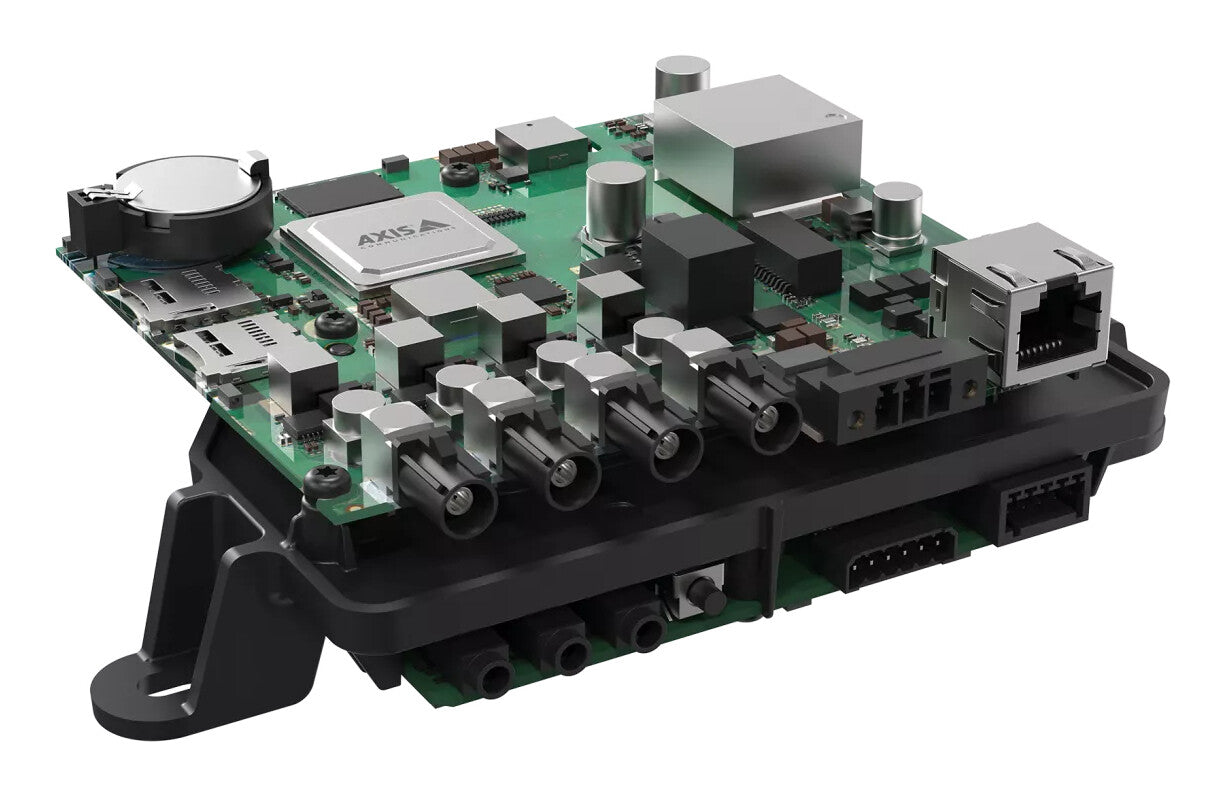

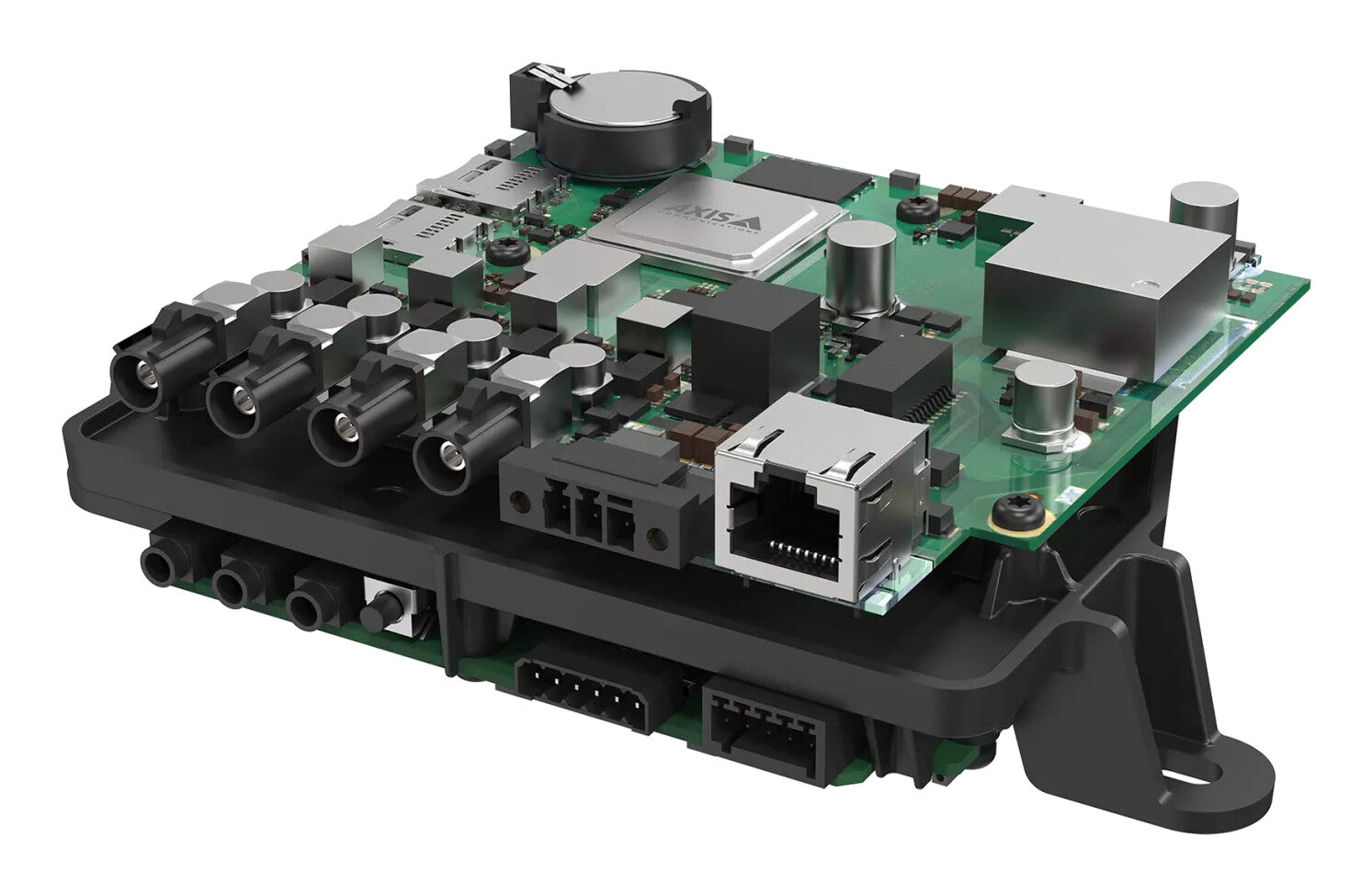

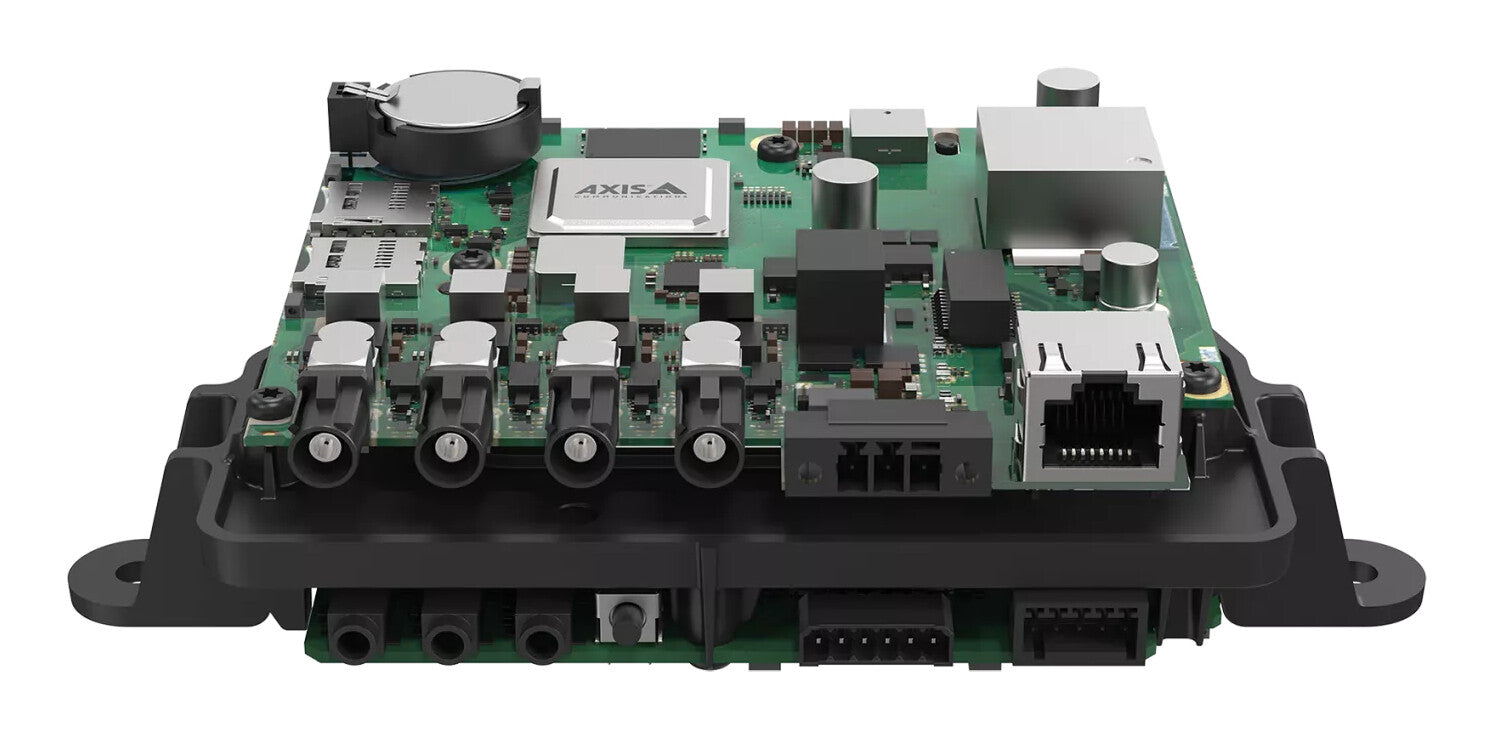

AXIS F9114-B is excellent for building customized video solutions. Sold without a casing, this UL recognized barebone main unit is ideal for integration into a UL certified end-product. Based on a divided camera concept, it can be installed indoors or inside vehicles. It supports four HDTV 1080p video streams at 30 fps on all channels and requires only one video management software (VMS) license. Furthermore, it includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.

Specifications

Performance

Languages supportSimplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Audio formats supportedAAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Video formats supportedH.264, H.265
Live viewYes
Internal memory2048 MB
Built-in processorYes
Maximum frame rate30 fps
Maximum video resolution3840 x 2160 pixels
Alarm output channels4
Alarm input channels4
Channels quantity4 channels

Features

CertificationSafety: UL recognized component, IS 13252; Network: NIST SP500-267; Cybersecurity: ETSI EN 303 645, BSI IT Security Label, FIPS-140
LED indicatorsStatus
On/off switchYes
Product colourGreen, Grey
Show all 43 specificationsShow fewer specifications

Storage

Storage media typeFlash
Internal storage capacity0.5 GB

Network

Supported network protocolsIPv4, IPv6 (USGv6), ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS (DiffServ), FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, RTCP, DHCP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Networking standardsIEEE 802.1AE, IEEE 802.1x, IEEE 802.3at
Cabling technology10/100/1000BaseE-T(X)
Ethernet LAN data rates10,100,1000 Mbit/s

Management features

SyslogYes
Web-based managementYes

Ports & interfaces

DC-in jackYes
RS-485 ports1
RS-232 ports1
Audio connector type3.5 mm (1/8")
Ethernet LAN (RJ-45) ports1

Power

Power consumption (max)25.5 W
Power consumption (min)9 W
Power over Ethernet (PoE)Yes

Operational conditions

Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 85%
Operating temperature (T-T)-40 - 60 °C

System requirements

Browser supportedChrome, Firefox, Edge, Safari

Weight & dimensions

Weight190 g
Height43 mm
Depth160 mm
Width123 mm

Packaging content

ManualYes

Technical details

Doesn't containPVC
Warranty period5 year(s)
