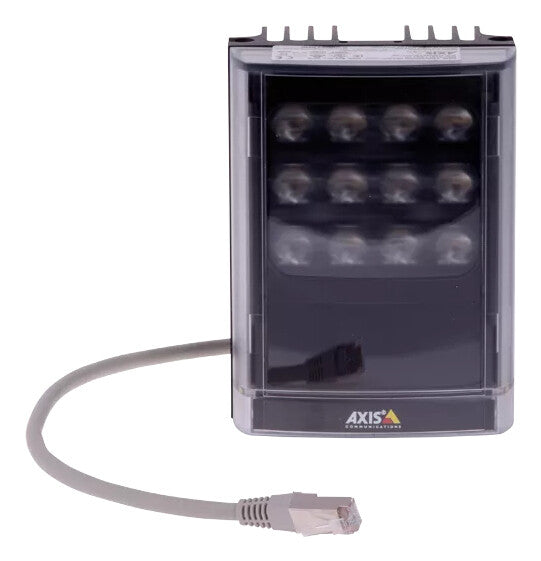

Axis 01211-001 security camera accessory IR LED unit
£522.99
Couldn't load pickup availability
- Choice of AC/DC or PoE power input; Easy setup by remote control; Flexible angle of illumination; Low power consumption; Various mounting options

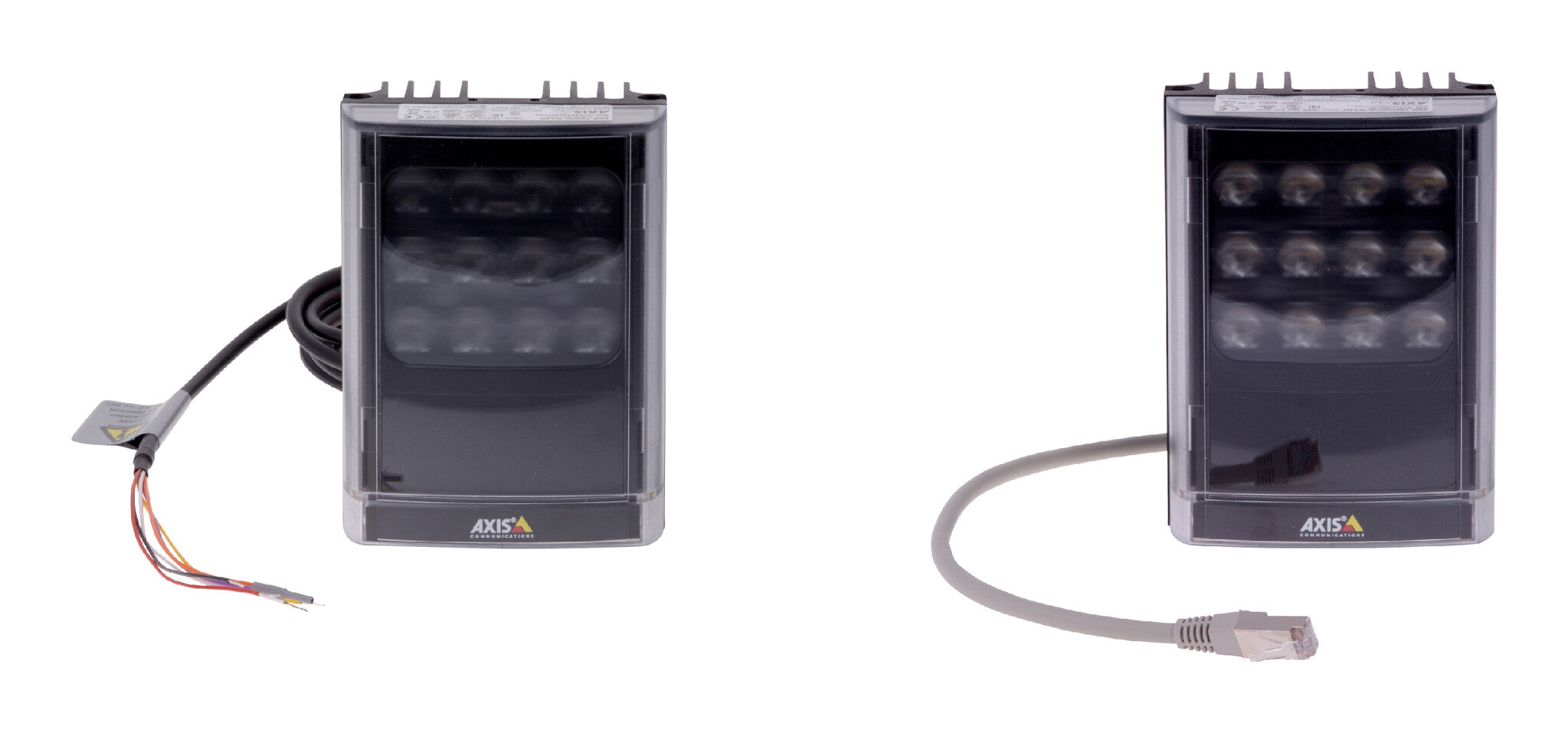

Based on the latest LED technology, the new generation of Axis illuminators delivers more light where it is needed. They generate longer illumination distances, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D20 IR-LED Illuminators come with a AC/DC or PoE power input, for easy and flexible installation with PoE midspans or PoE switches. Thanks to integrated green features such as power adjust and telemetry control (on AC/DC model only), Axis illuminators enhance the potential for energy savings.
| Features | |
|---|---|
| Certification | FCC Part 15.107 and 15.109 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547, EMC AC/DC variant, KCC KN15, KN 61547, IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2 No 250.0–08, UL 2108, IEC/EN 60529 IP66, IEC/EN 62262 IK09 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Product colour | Black |
| Compatibility | 01219-001, 01220-001, 01221-001 |
| Brand compatibility | Axis |
| Placement supported | Universal |
| Type | IR LED unit |
| Ergonomics | |
|---|---|
| Wall mountable | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Weight & dimensions | |
|---|---|
| Weight | 950 g |
| Width | 100 mm |
| Depth | 66 mm |
| Height | 135 mm |
| Cable length | 2.5 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -50 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Operating temperature (T-T) | -50 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299020 |
