• Allows up to four HDMI A/V sources to be connected to one HDMI display
• Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
• Supports 340MHz bandwidth for ultrahigh 4kx2k video
• HDMI (3D, Deep Color, 4kx2k); HDCP compatible
• Auto switching modes for auto port selection
• Long distance transmission – up to 15 m (24 AWG)
• Consumer Electronics Control (CEC) support
• Supports Dolby True HD and DTS HD Master Audio
• Built-in bi-directional RS-232 serial remote port for high-end system control
• Instant switching between HDMI input sources
• Supports IR extension using a IR extension cable *
• LED indication of video source devices
• Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.

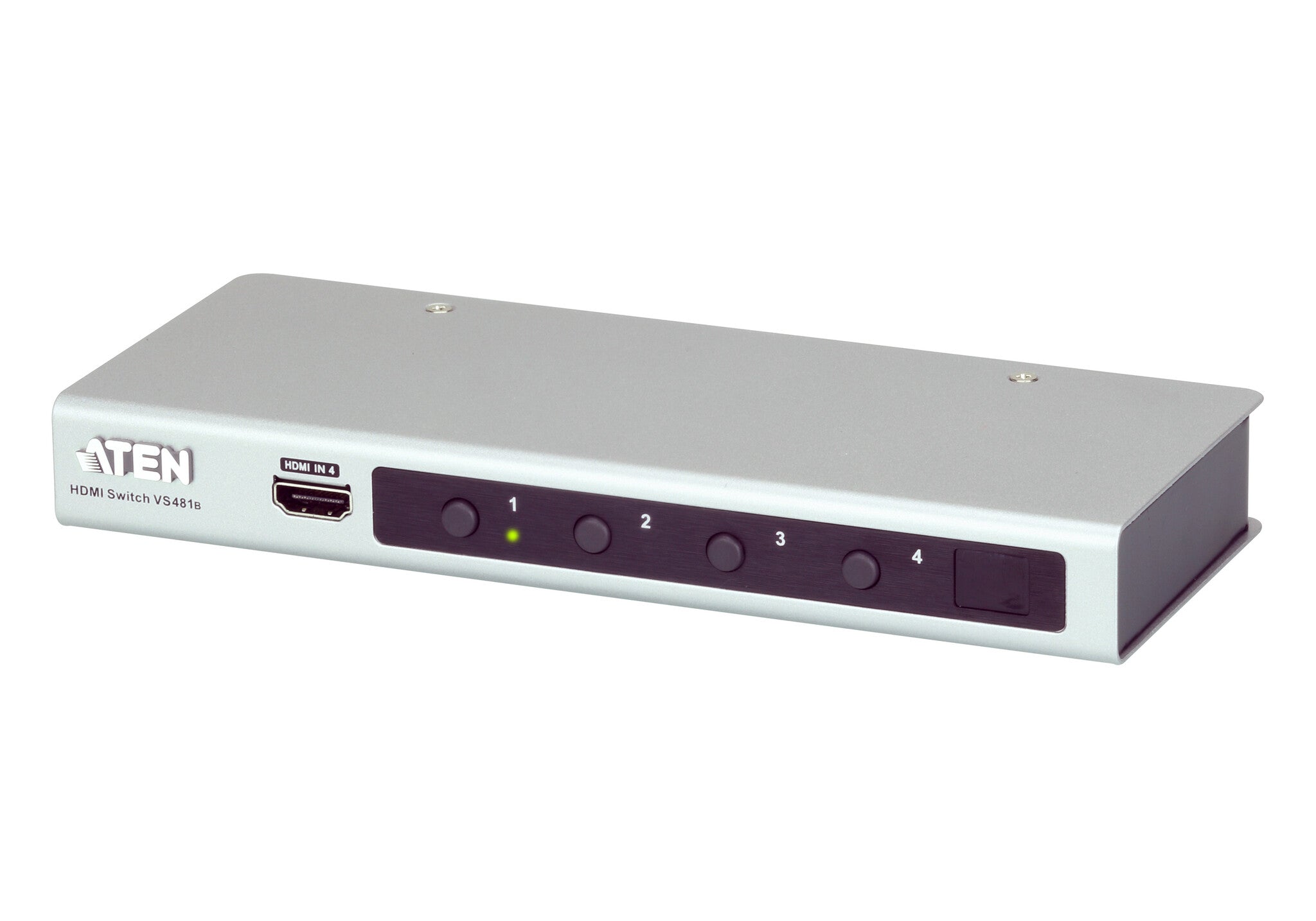

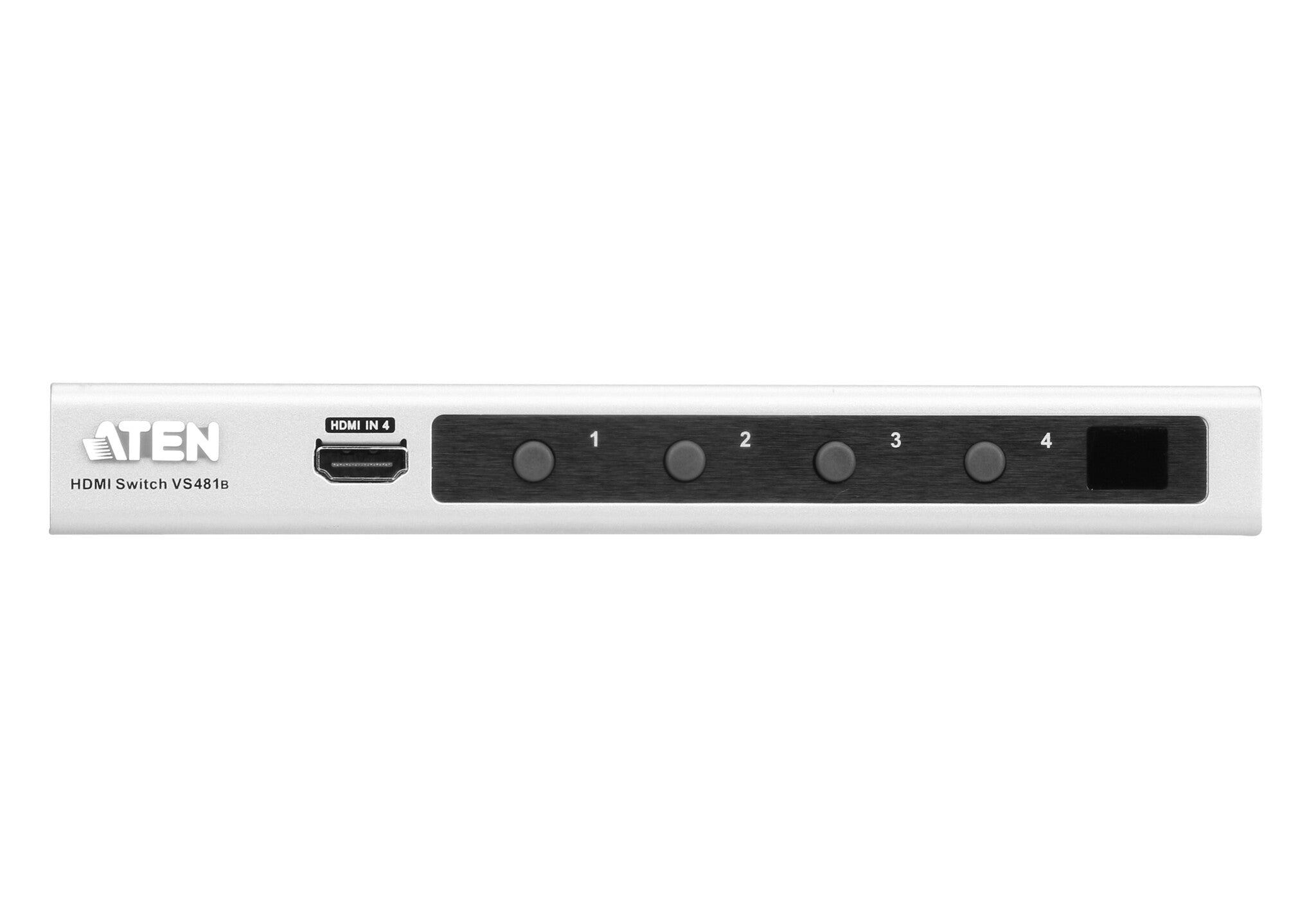

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
