Overview
- Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions
- Supports 4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
- Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
- Seamless Switch™ –features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
- Video Wall –allows you to create custom video wall layouts via intuitive web GUI
- Live Streaming –supports single source live streaming via web GUI for convenient evaluation of display output
- Content and Layout Preview –displays thumbnails of source media in web GUI, simplifying profile configuration
- EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
- Audio-enabled –HDMI audio can be extracted, and stereo audio can be embedded (HDMI I/O boards)
- Calendar-based scheduling –allows profile playing based on the pre-set schedule and RTC
- Multiple Control Methods – system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability
- Flexible system expandability via hot-swappable tool-free installation of I/O boards
- Optional redundant power supply –ensures reliability for mission-critical applications
- Long-Reach mode up to 1080p@150m – enables extended AV transmission using the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders
- HDCP 2.2 Compatible*
- HDMI: 3D, Deep Color, 4K*
- Consumer Electronics Control (CEC) supported*
- ESD protection for HDMI
- Rack mountable (9U design)
- Note:
- 1. The availability of the features with “*” depends on which I/O board is inserted.
- 2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
- 3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

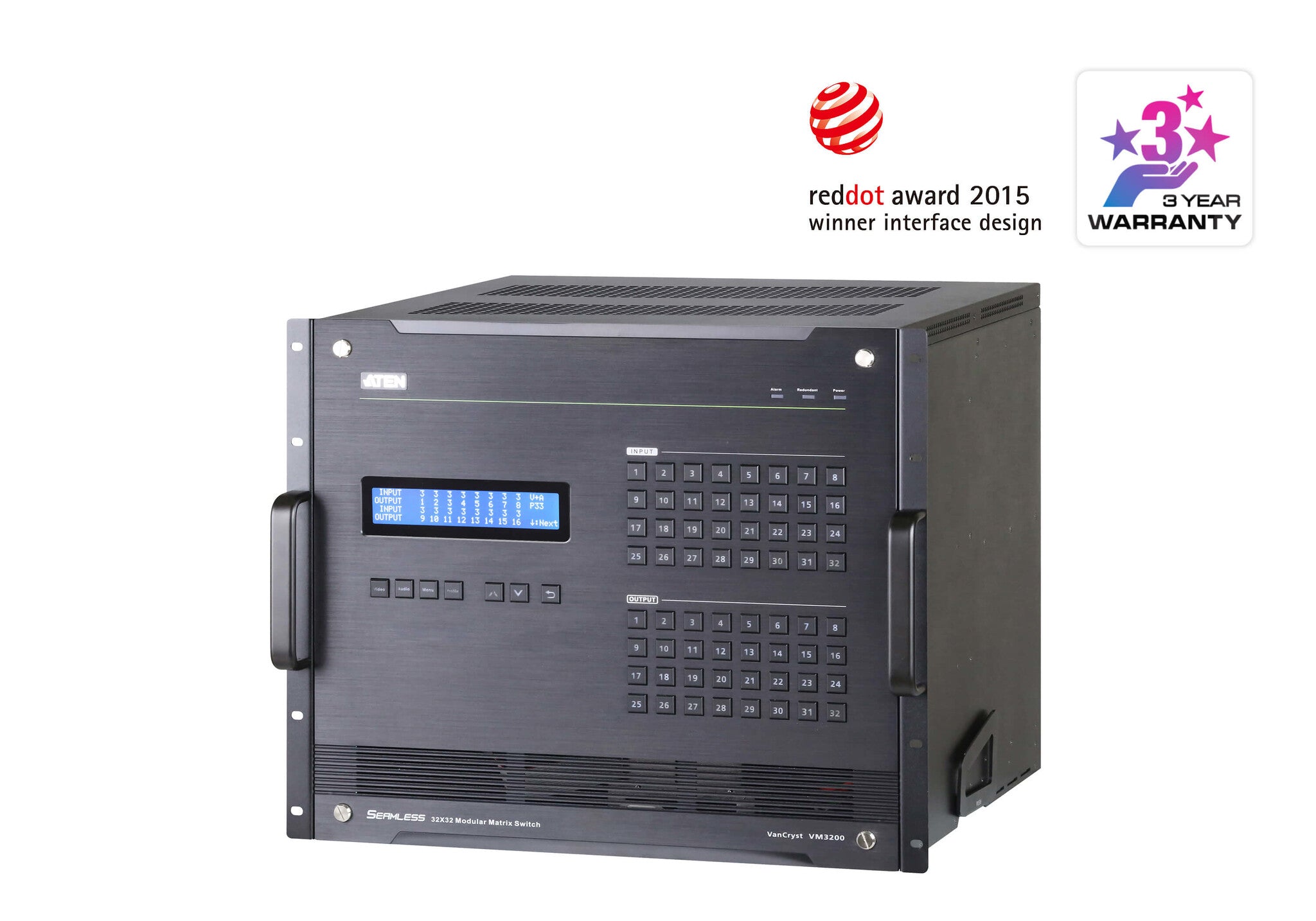

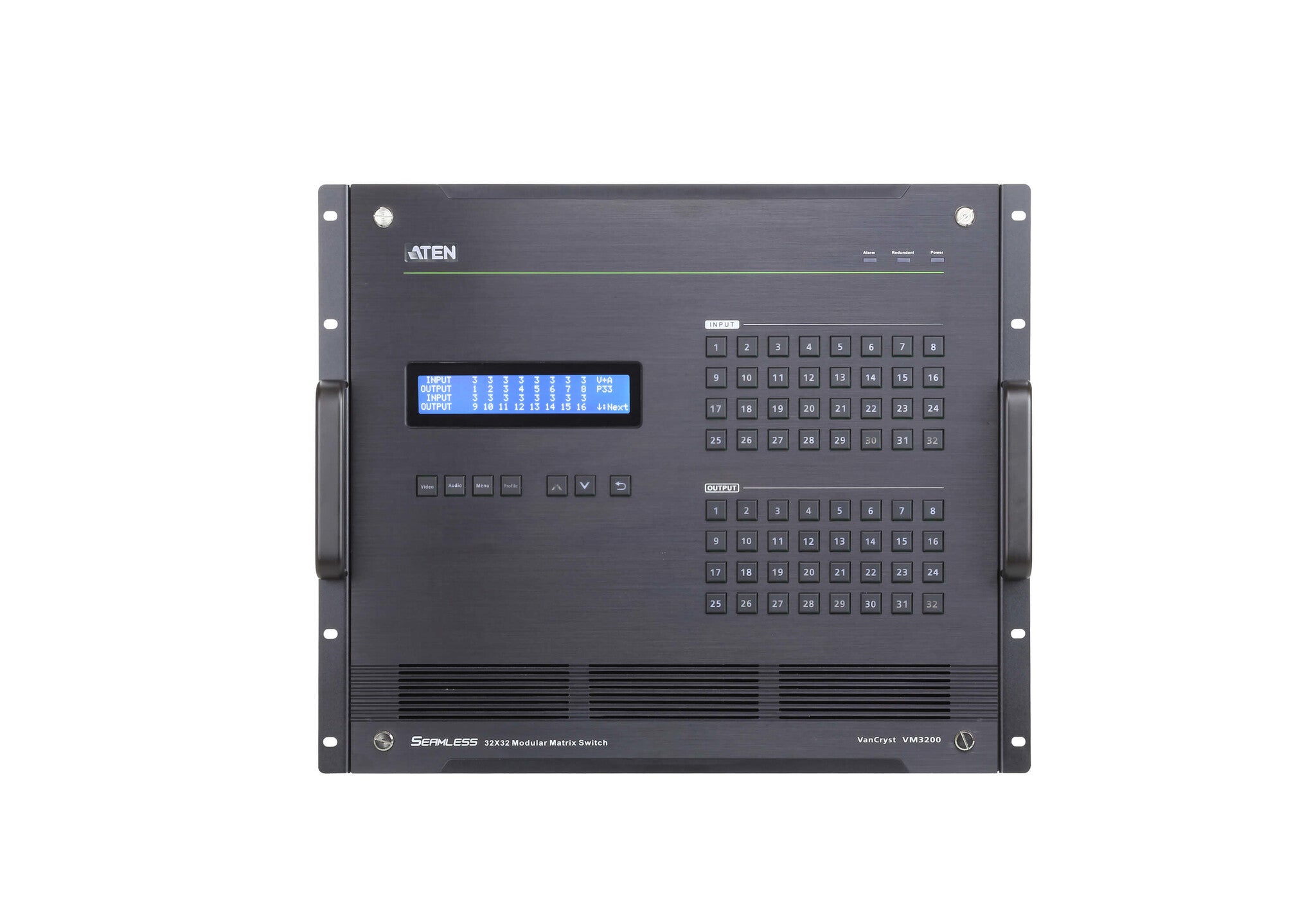

The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.

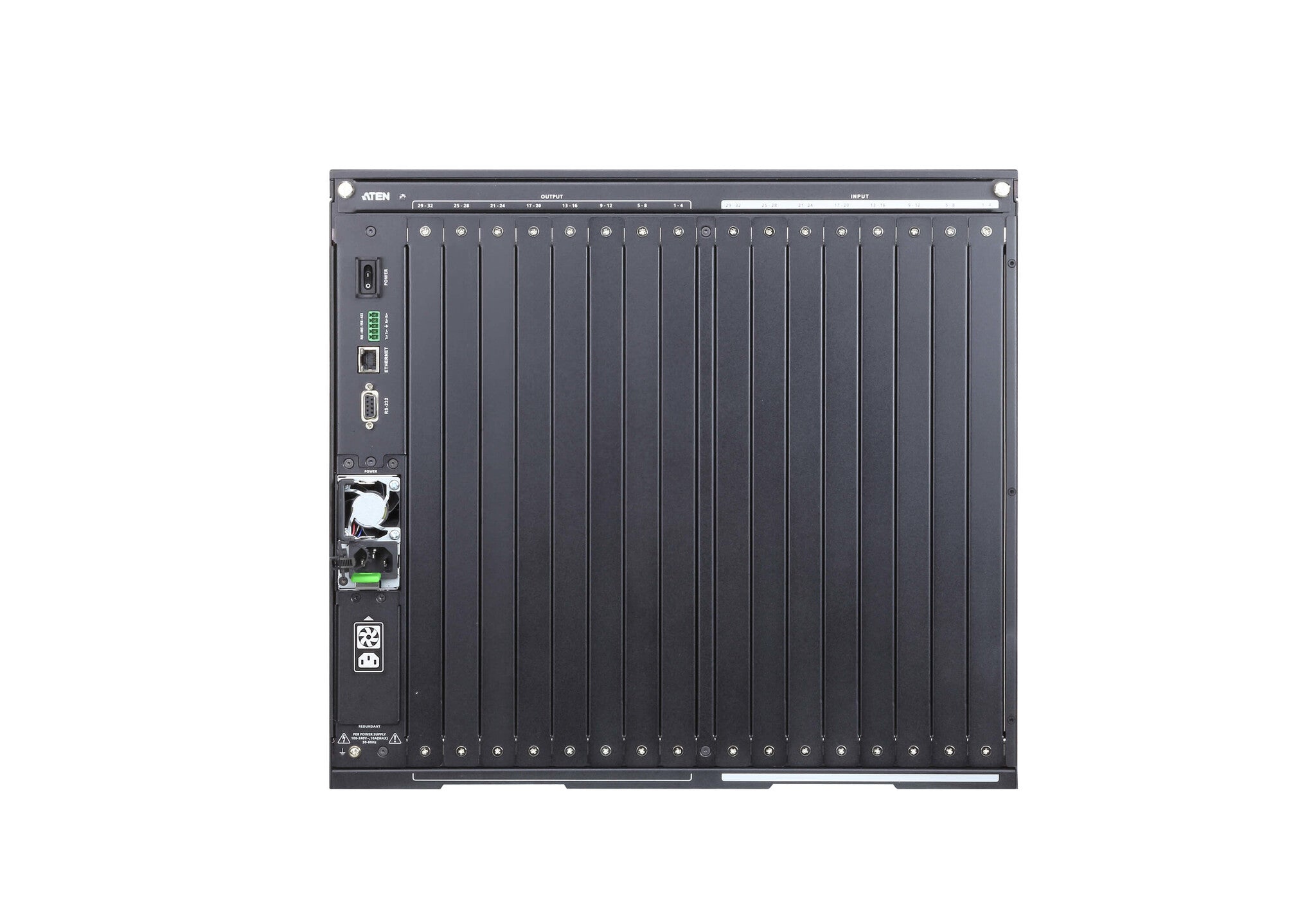

The VM3200 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital video interfaces, including HDBaseT, DisplayPort, HDMI, DVI, 3G-SDI, and VGA. This makes it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Specifications
Ports & interfaces
| RS-232 interface | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (typical) | 800 W |
|---|
Show all 7 specificationsShow fewer specifications
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Weight | 18.2 kg |
|---|
