ATEN VE8950T AV extender AV transmitter Black
Couldn't load pickup availability
- Lightweight Compression with Ultra-low Latency Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4Ensures stunning quality video using ATEN advanced video lossless compression technologyEDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screensOffers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8950T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

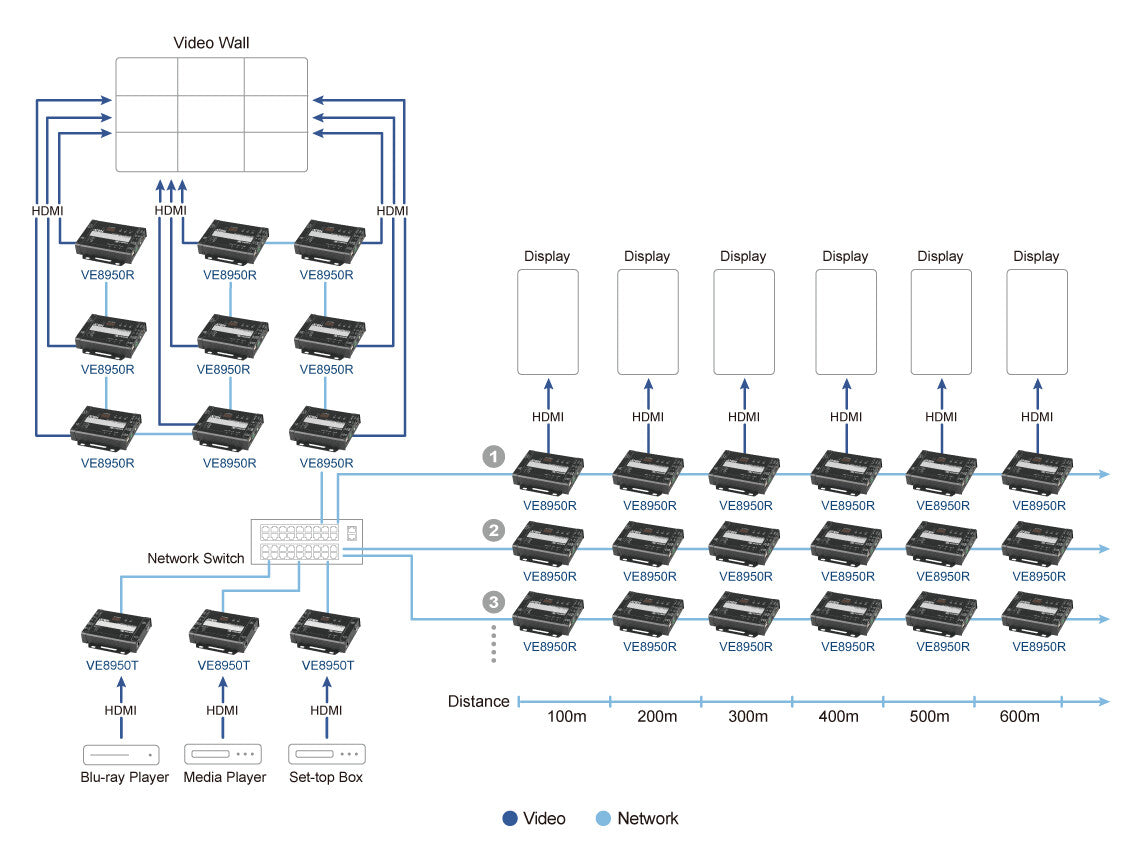

Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide : assets.aten.com/product/manual/Implementation_Guide.pdf
| Features | |
|---|---|
| Product colour | Black |
| Firmware upgradeable | Yes |
| Supported video modes | 1080p |
| Control type | Buttons |
| HDCP | Yes |
| Daisy chain | Yes |
| Baud rate | 19.2 Kbit/s |
| Impedance | 100 Ω |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Material | Metal |
| LED indicators | Yes |
| Audio system | stereo |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6 |
| Maximum resolution | 4096 x 2160 pixels |
| Type | AV transmitter |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Serial interface type | RS-232 |
| Audio input | 1 |
| Remote (IR) input | 1 |
| Serial ports quantity | 1 |
| Video in | 1 |
| USB connector type | USB Type-B |
| USB version | 2.0 |
| USB ports quantity | 1 |
| HDMI in | 1 |
| RJ-45 output ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| External power adapter | Yes |
| Power consumption (typical) | 3.08 W |
| Operating voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Weight | 500 g |
| Height | 29.6 mm |
| Depth | 101 mm |
| Width | 136 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
