• Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
• Superior video quality:
• • 4K up to 100 m

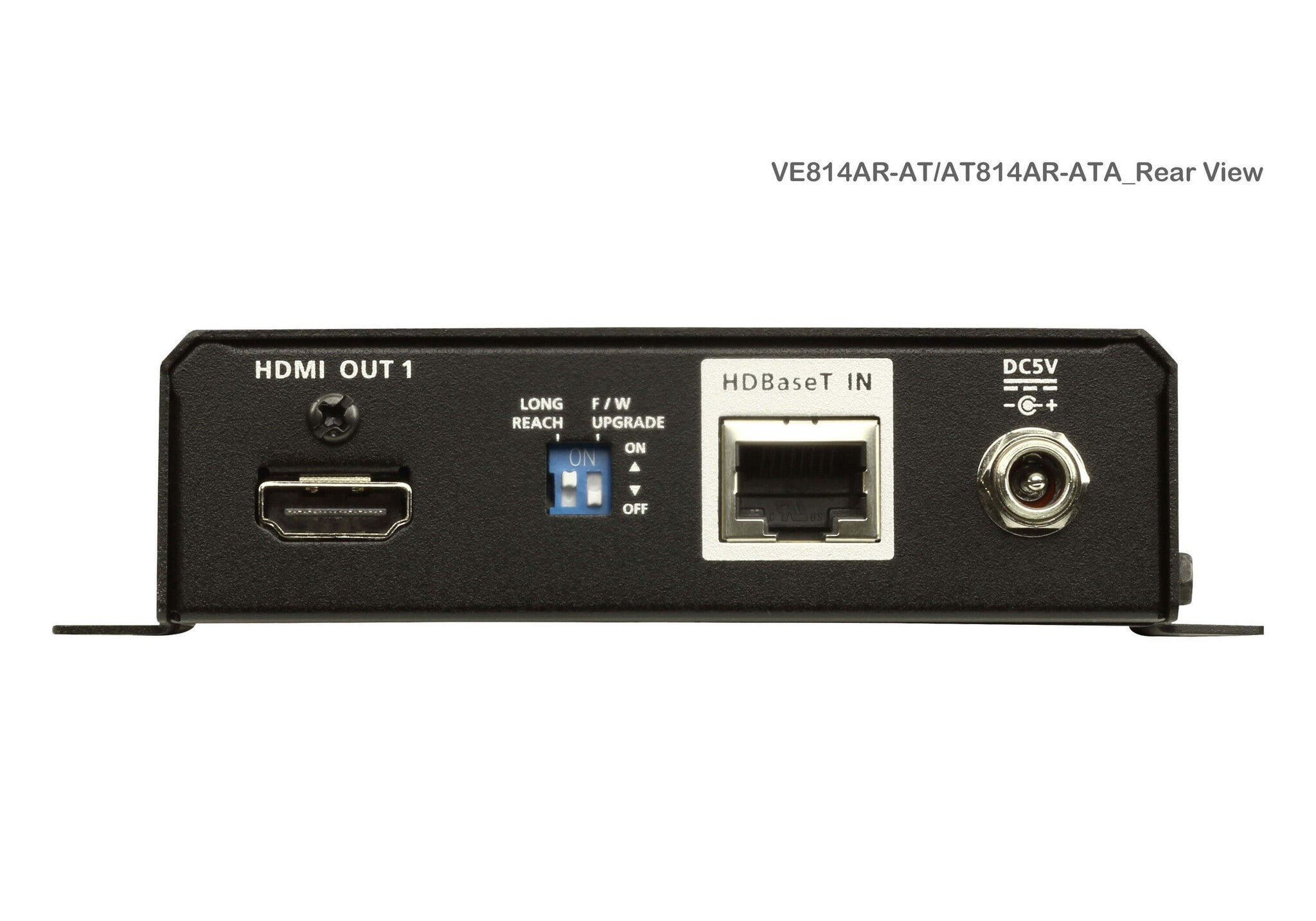

• • 1080p up to 150 m when in HDBaseT Long Reach Mode

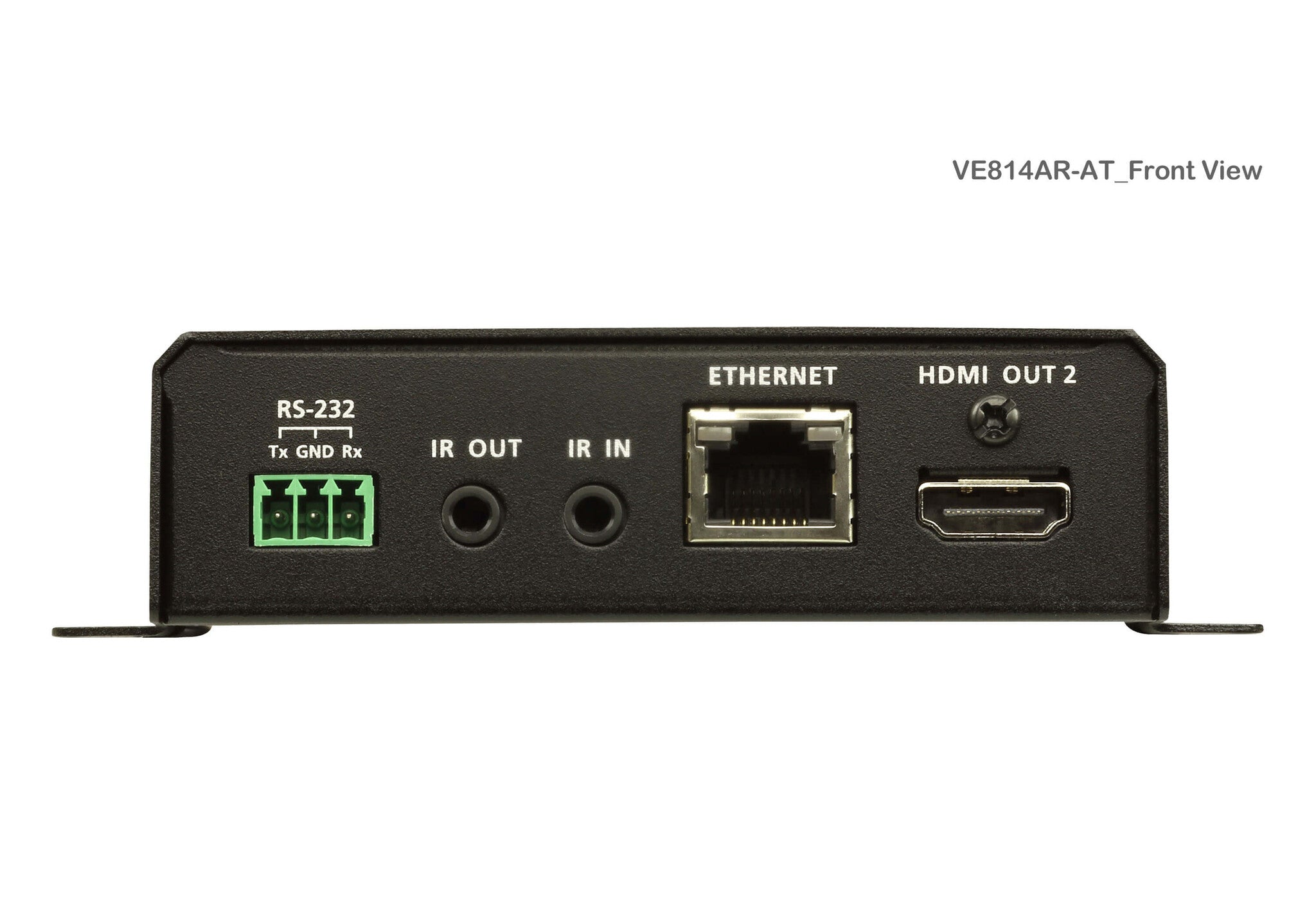

• Extends Ethernet communication using the Ethernet pass-through port*
• Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
• ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output

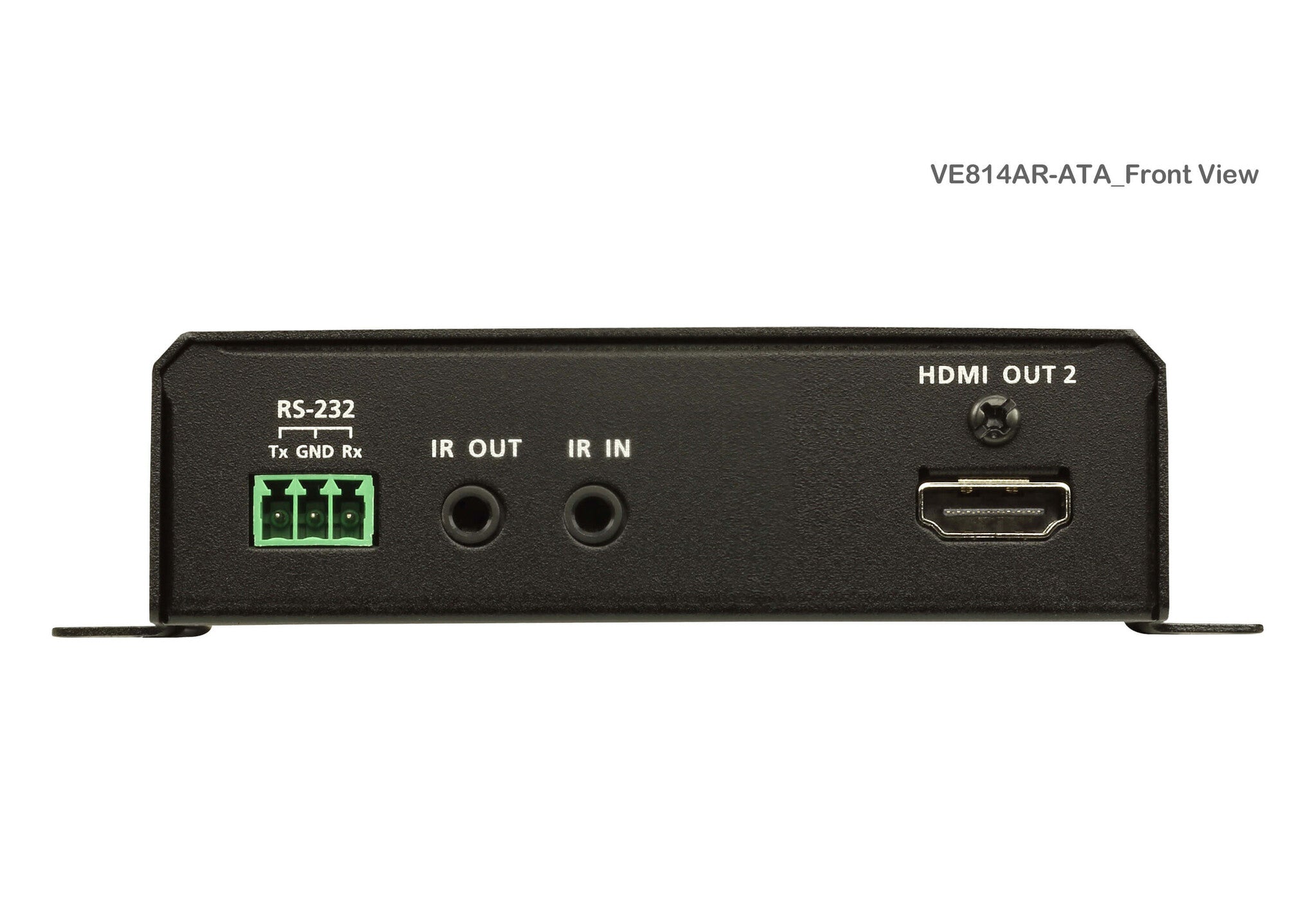

• RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
• Supports wide screen format
• Built-in 8 kV/15 kV ESD protection
• Plug-and-play
• Rack-mountable
• Note: The function is supported by VE814A-AT only.

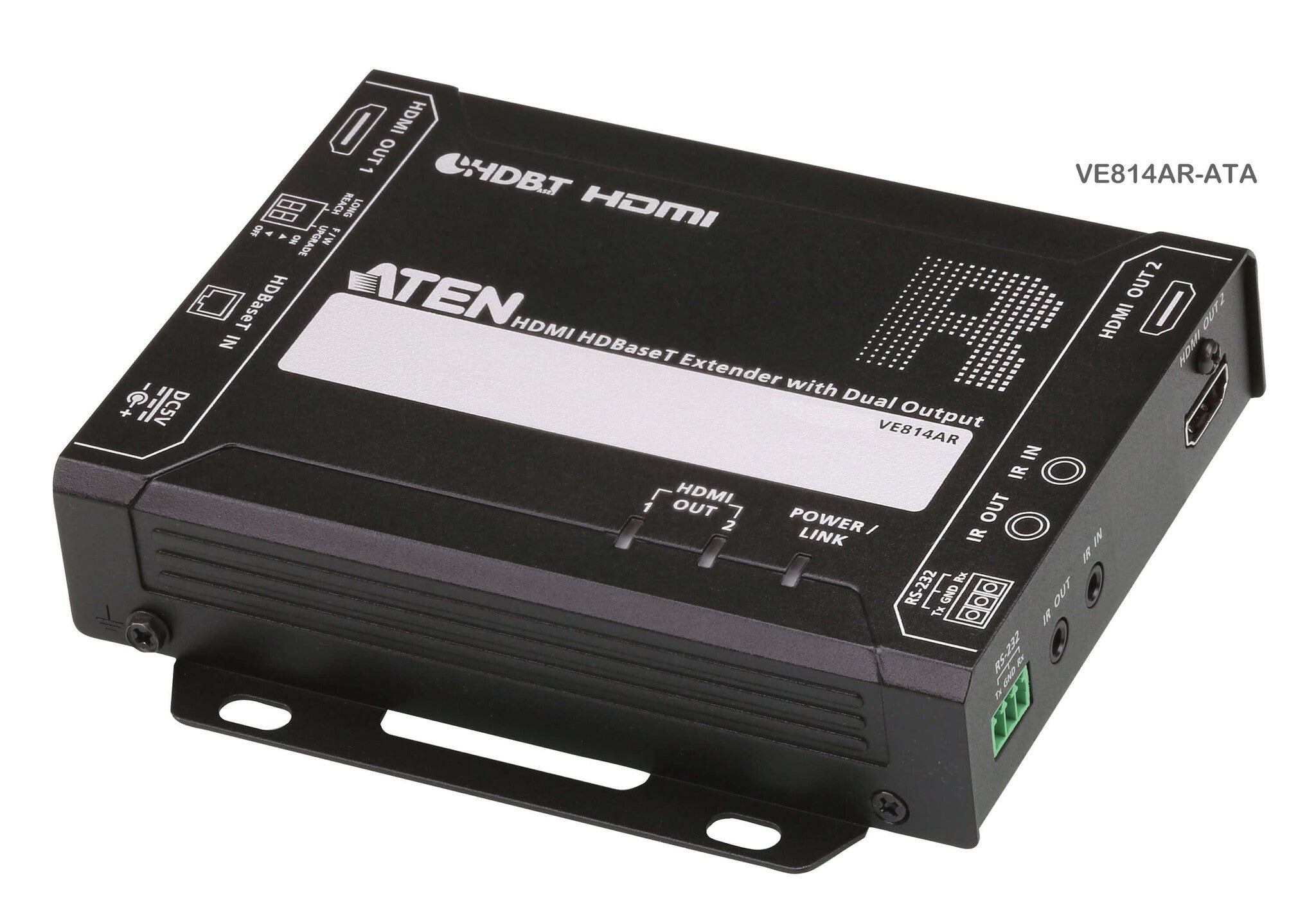

ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

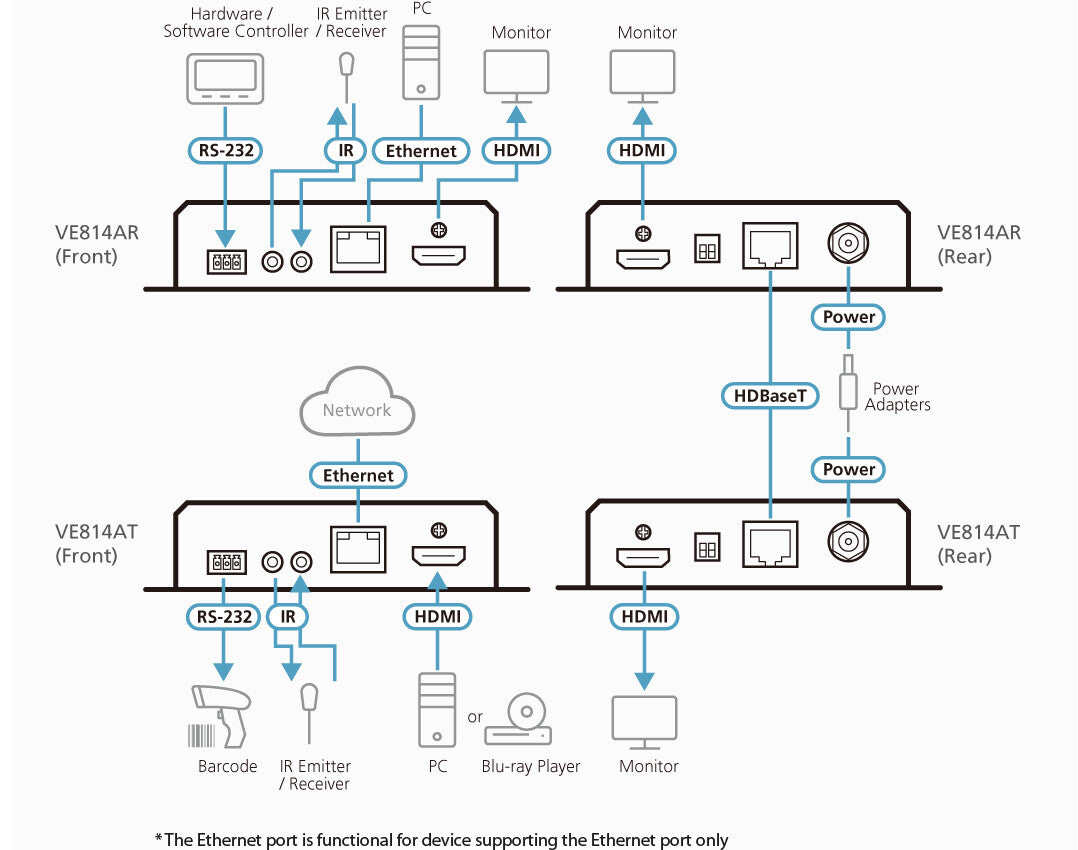

The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
