ATEN VE3912T AV extender AV transmitter Black
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £198.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Extends DisplayPort, HDMI or VGA signals up to 100 m over a single Cat 6/6a or ATEN 2L-2910 Cat 6 cable
- Supports multiple source inputs (DisplayPort/HDMI/VGA) – easily switching among sources via a pushbutton
- Auto Switch Mode – allows the VE3912T to automatically switch to a newly plugged-in source
- HDMI (3D, Deep Color, 4k); HDCP 2.2 compliant
- Superior video quality:
- • HDMI/Displayport: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
- • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
- HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Mirrored Video Output – supports 4K@30Hz, 4:4:4 over the HDBaseT output, and a local HDMI output
- PoH (Power over HDBaseT) – with its built-in PoH function, it receives power from the HDBaseT output port on the connected device
- Perfect HDBaseT Compatibility – compatible with ATEN HDBaseT receivers, available to deliver crystal video and audio signals to Displayport/HDMI/VGA output port
- Features RS-232 Serial Communication Switch – Command mode and Bypass mode to meet application requirements; users can command input port switch through RS-232 of receiver, such as VE2812R
- EDID Expert™ – selects optimum EDID settings for high-quality display and use HDBaseT output as priority of optimum video resolution
- Plug-and-play with no software installation required
- Rack-mountable
- Built-in 8KV/15KV ESD protection

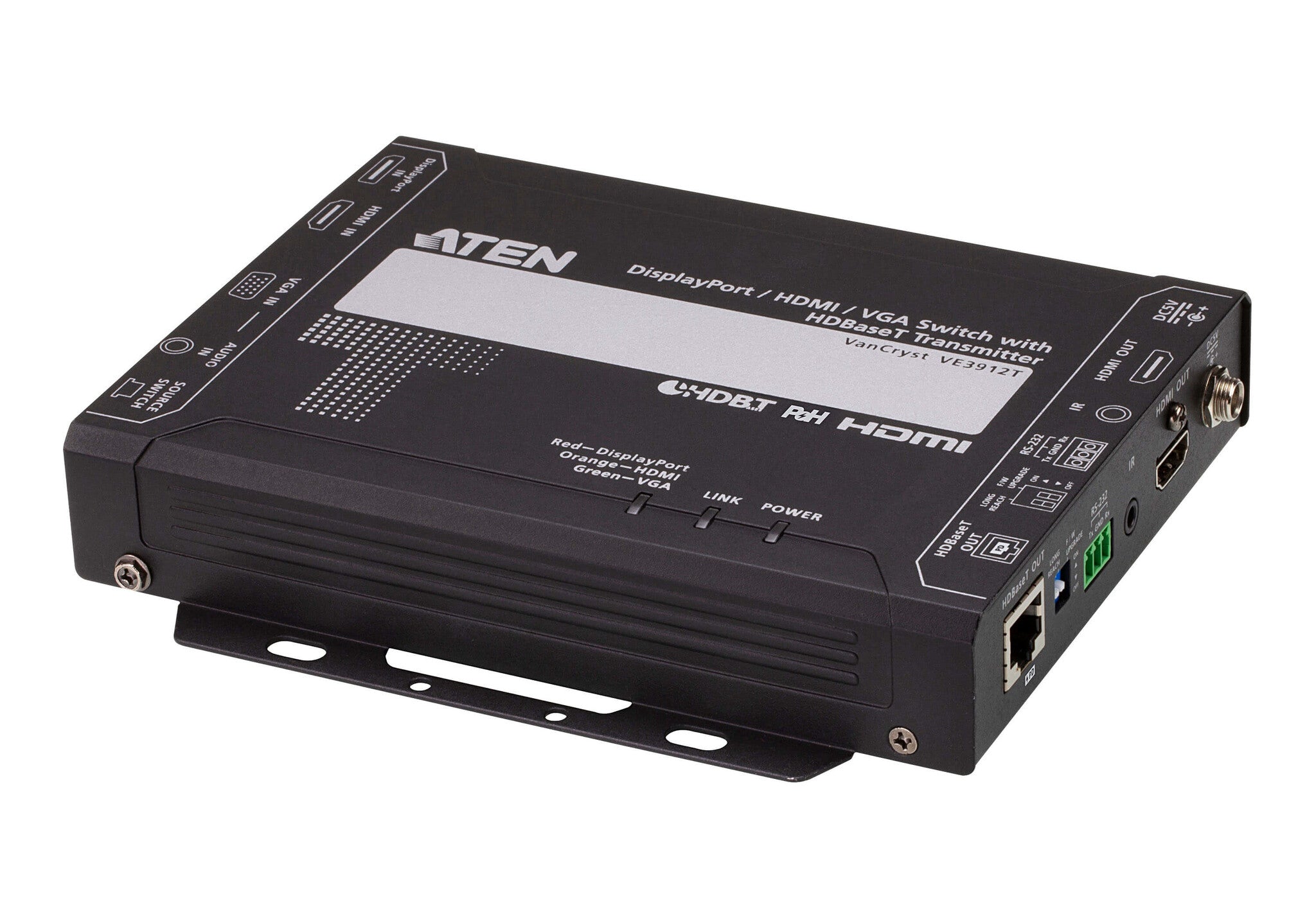

The ATEN VE3912T is an HDBaseT transmitter that extends 4K DisplayPort, HDMI, or VGA video signals up to 100 m over a single Cat 6/6a or ATEN 2L-2910 Cat 6 cable. Featuring multiple video input formats and output resolutions up to 4K, it ensures a superior video quality for applications that require digital/analog sources conversion and extension.
This HDCP 2.2 compliant transmitter meets the HDMI specification, including 3D, Deep Color, and 4Kx2K video quality. The Auto Switch Mode allows the VE3912T to automatically switch to a newly plugged-in source. With its built-in PoH (Power over HDBaseT) function, it can receive power from the HDBaseT output port on the connected device, eliminating the need for a power adapter. As a combination of extension and switch for both digital and analog inputs, VE3912T is recommended to be deployed in settings with multiple source inputs, such as conference rooms, digital educational environment or wherever integration and simplification are required.
Specifications
Features
| Product colour | Black |
|---|---|
| Supported video modes | 1080p, 2160p |
| Control type | Buttons |
| HDCP | Yes |
| HDCP version | 2.2 |
| On/off switch | Yes |
| Impedance | 100 Ω |
| Consumer Electronics Control (CEC) support | Yes |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Material | Metal |
| Bandwidth | 10.2 Gbit/s |
| Power | 8.77 W |
| HDCP pass-through | Yes |
| Maximum transfer distance | 100 m |
| Maximum resolution | 4096 x 2160 pixels |
| Type | AV transmitter |
Ports & interfaces
| DC-in jack | Yes |
|---|---|
| AUX in | Yes |
| Audio input | 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x DisplayPort Female (Black) |
| VGA (D-Sub) ports quantity | 2 |
| Video in | 1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue) 1 x DisplayPort Female (Black) |
| Video out | 1 x HDMI Type A Female (Black) |
| RS-232 output ports | 1 |
| DisplayPorts in | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| VGA (D-Sub) input ports | 1 |
| RJ-45 input ports | 1 |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
Show all 43 specificationsShow fewer specifications
Power
| External power adapter | Yes |
|---|---|
| Power consumption (max) | 8.77 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Weight | 650 g |
|---|---|
| Height | 30 mm |
| Depth | 173 mm |
| Width | 147 mm |
Packaging content
| Mounting brackets included | Yes |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
