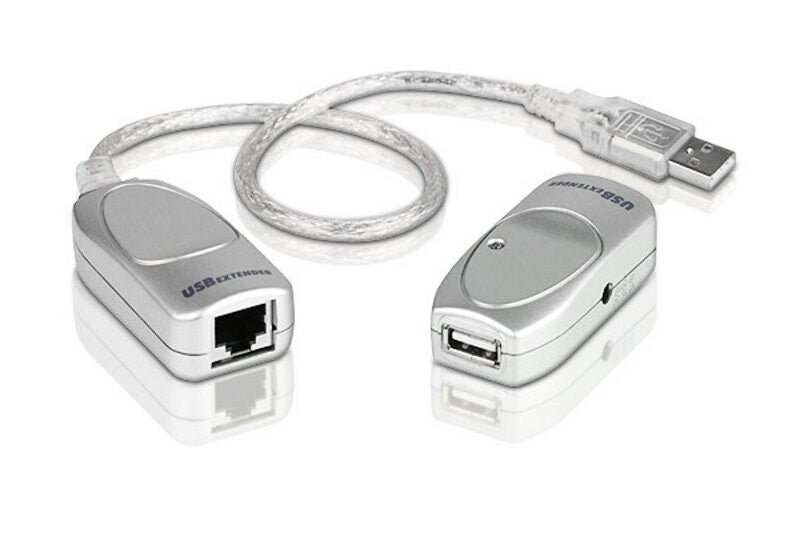

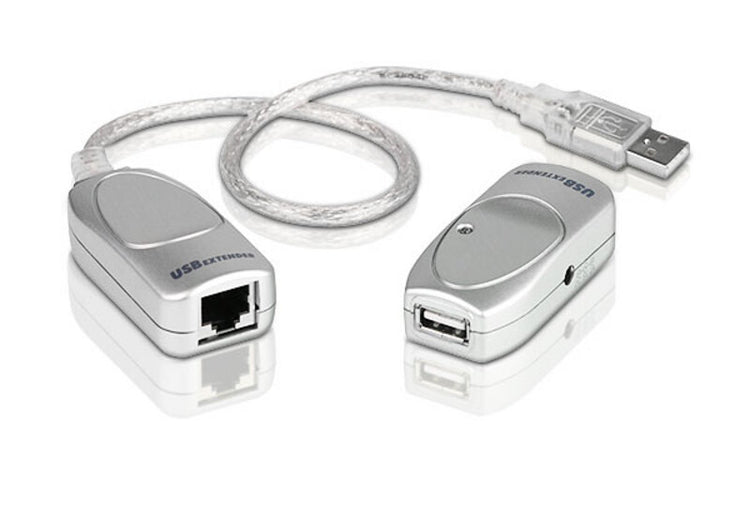

ATEN USB 1.1 Over Cat5e/6 Extender (60m)

ATEN USB 1.1 Over Cat5e/6 Extender (60m)

Aten
£73.99
Stock Available: 0
  • Extends the transmission distance of a USB device up to 60m (198 ft) using Cat 5/ Cat 5e/ Cat 6 cabling
  • Provides support for any full-speed (12Mb/s) or low-speed (1.5Mb/s) USB devices
  • No additional installation software required

UCE60 lets you locate your USB device or hub up to 60m (198 ft) from you computer, overcoming the typical USB cable limitation. It conditions the USB signals to communicate up to 60m using low-cost Cat 5/Cat 5e/Cat 6 cable.
1x Local Unit (1 ft USB Cable attached)
1x Remote Unit

Features
Material Plastic
Product colour Grey
Maximum transfer distance 60 m
Connectivity technology Wired
Type Transmitter & receiver
Transmitter
RJ-45 ports quantity (transmitter) 1
Transmitter local keyboard/mouse port type USB
Receiver
RJ-45 ports quantity (receiver) 1
Receiver local keyboard/mouse port type USB
Ports & interfaces
USB 2.0 ports quantity 2
Weight & dimensions
Receiver weight 30 g
Receiver height 2.19 cm
Receiver depth 3.1 cm
Receiver width 6.3 cm
Transmitter weight 20 g
Transmitter height 2.19 cm
Transmitter depth 3.1 cm
Transmitter width 6.3 cm
Packaging data
Package weight 185 g
Package height 239 mm
Package depth 160 mm
Package width 116 mm
Operational conditions
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) 0 - 40 °C
Technical details
Weight 61 g
Logistics data
Products per master (outer) case 20 pc(s)
Master (outer) case gross weight 4.64 kg
Master (outer) case height 340 mm
Master (outer) case length 490 mm
Master (outer) case width 330 mm
Harmonized System (HS) code 84733080
Master (outer) case net weight 1.22 kg
